Microsoft Single Sign On (SSO)

Microsoft Single Sign On (SSO)


Setting Up Microsoft Single Sign-On (SSO) For New User

How Microsoft SSO works with Trimble Mine Insights™

  1. Microsoft Single Sign-On (SSO) allows users to access Trimble Mine Insights™ using their Microsoft organizational or work account, eliminating the need to manage separate login credentials.
  2. When a user clicks Sign in with Microsoft, Trimble Mine Insights redirects the user to Microsoft's secure identity platform.
  3. Microsoft authenticates the user's credentials and verifies their identity. After successful authentication, Microsoft returns a secure response to Trimble Mine Insights.
  4. Trimble Mine Insights processes the authentication response and grants access to the user. Access is provided only to users who have been authorized and approved within the system.

How to sign in with Microsoft SSO for Trimble Mine Insights™

1.) Log in using SSO via Microsoft
Alert
SSO must already be enabled for the domain

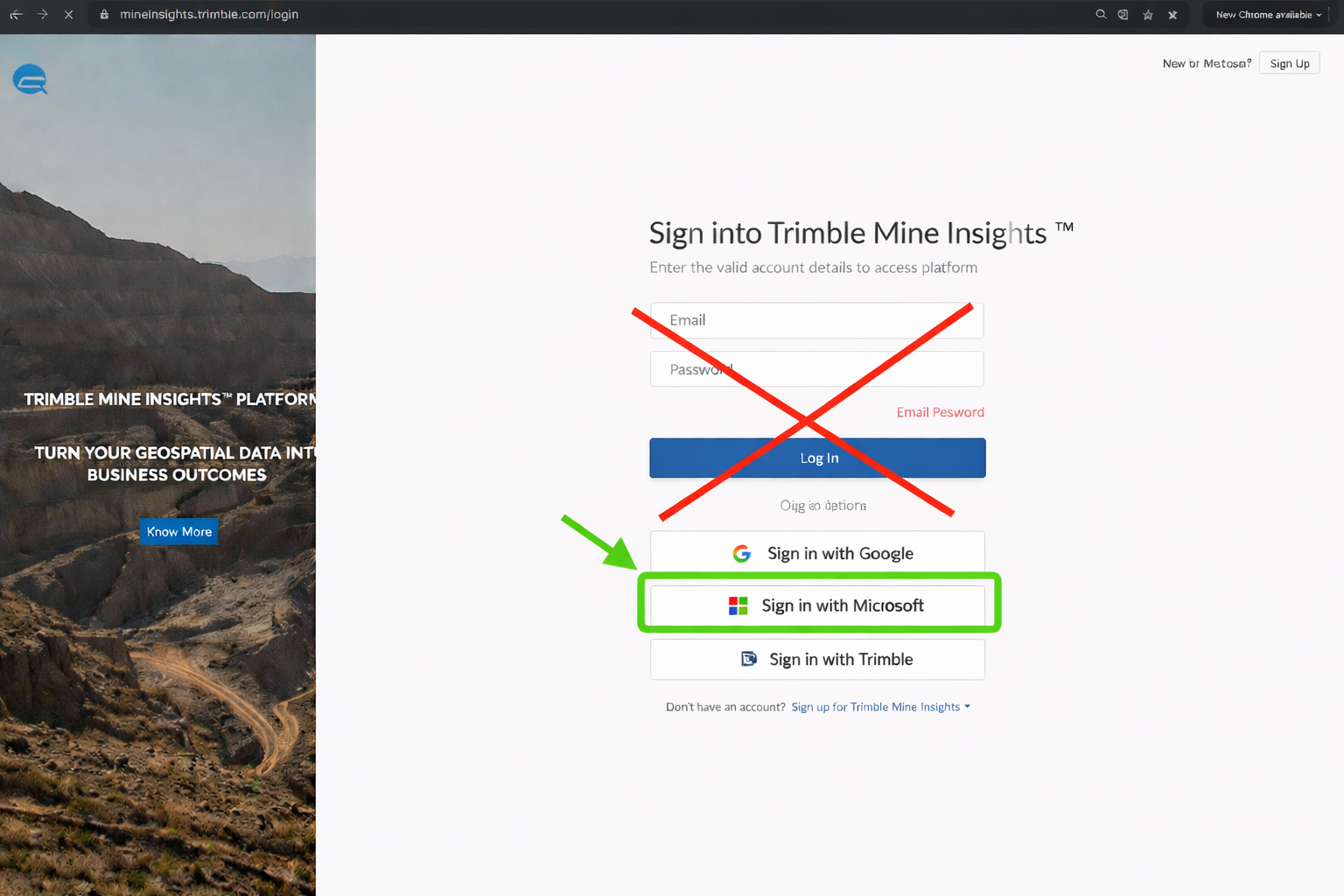

  • Click on the “Sign in with Microsoft” button.

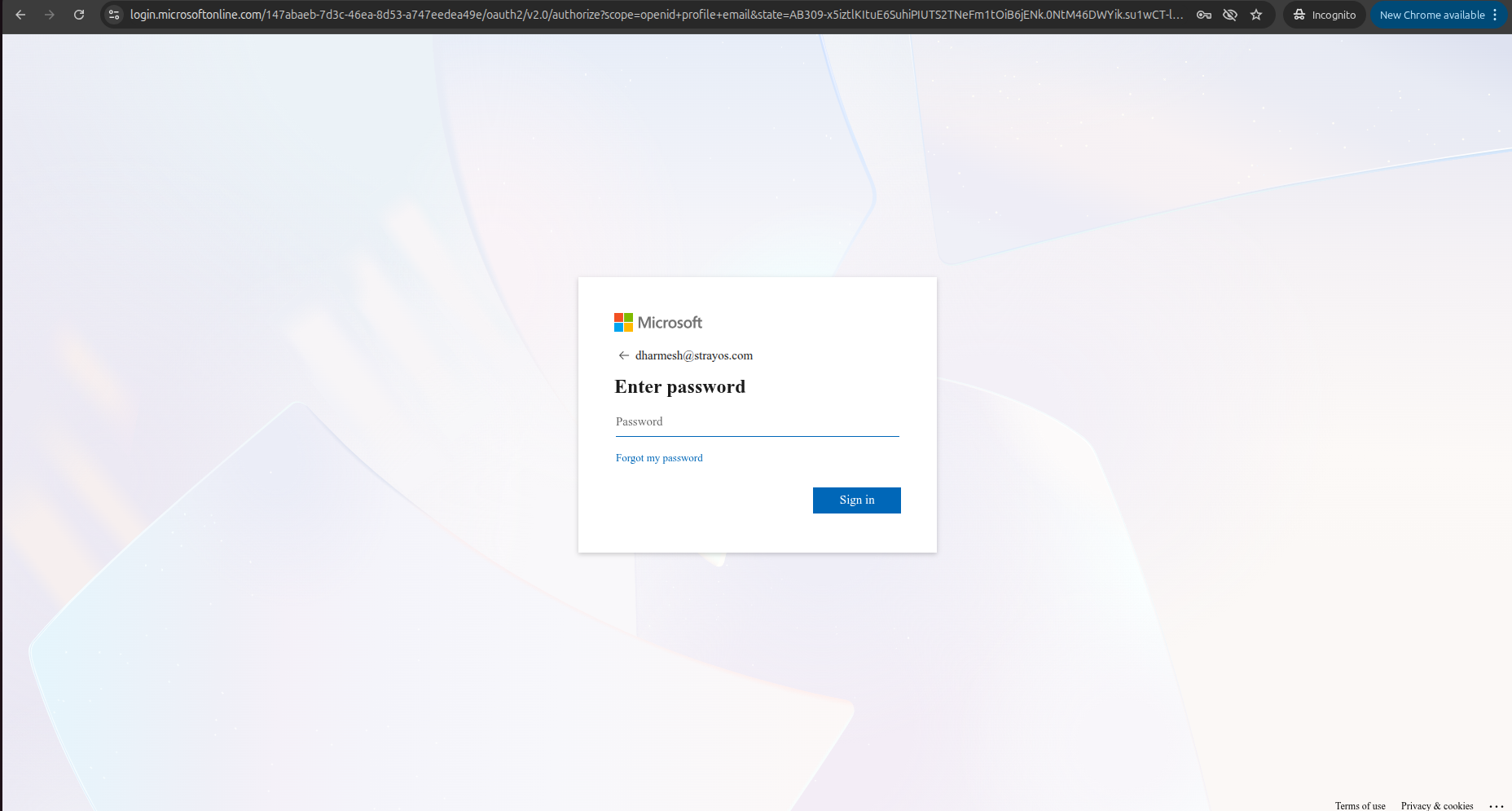

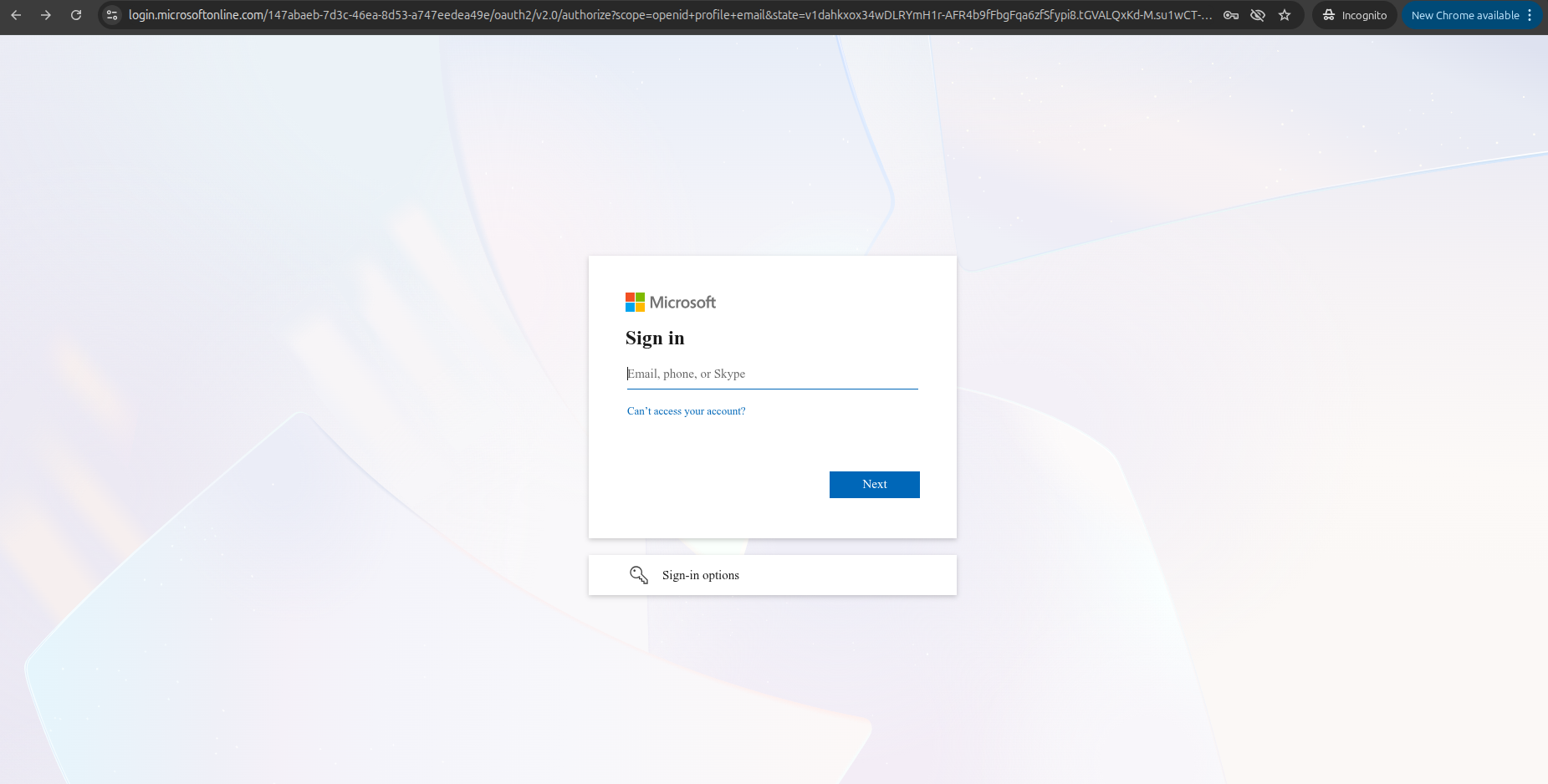

2.) You will be redirected to the official Microsoft login page:
  • Enter your registered Microsoft email and password.
  • Click Sign in.

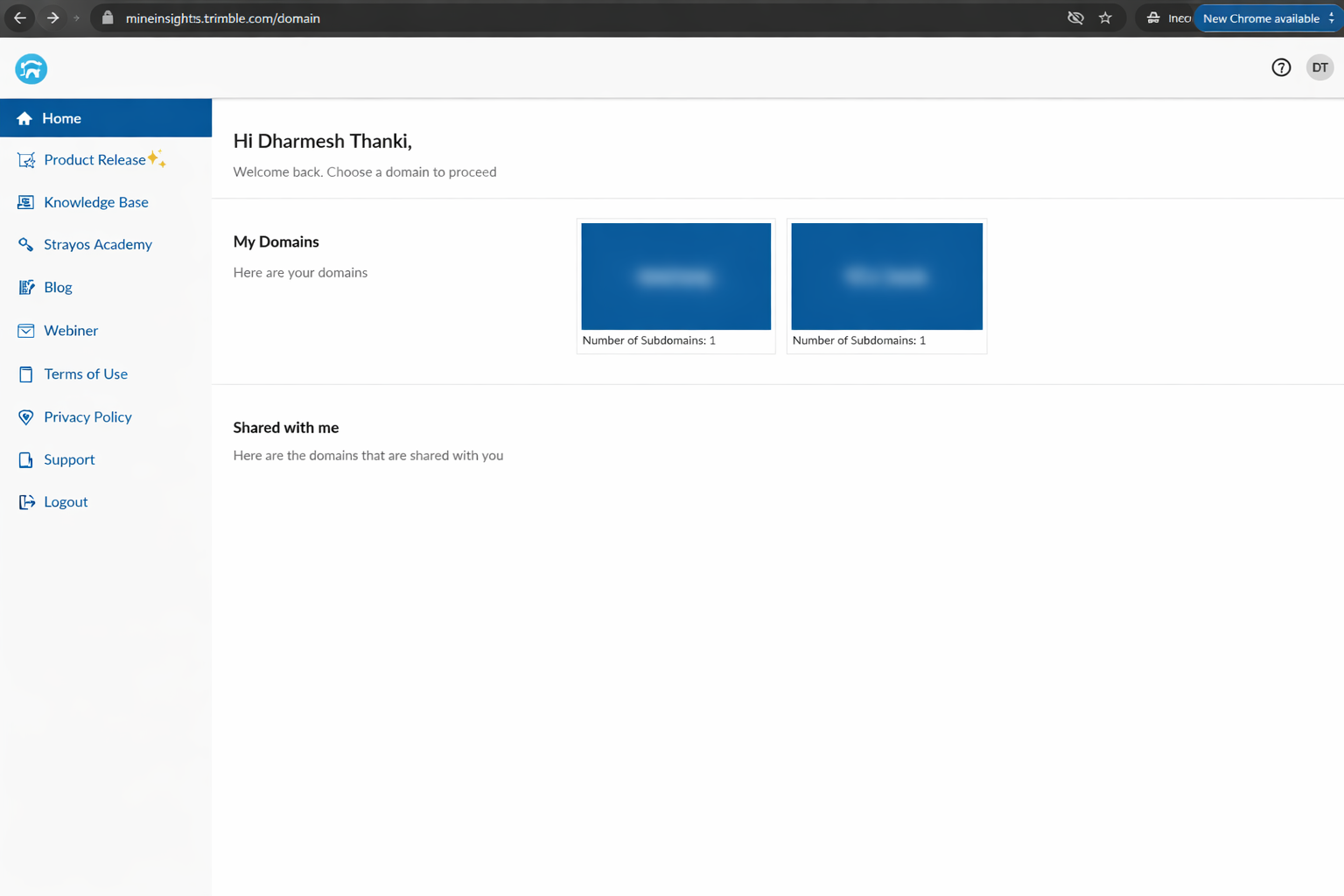

3.) After a successful login:
  • The system will redirect you to the homepage
  • The user display the list of assigned domain.

Before that Super Admin need to onboard new user:

If the user is a new user, onboarding must be completed first, and a domain/subdomain must be assigned by the super admin

  • Clicked on super admin dashboard

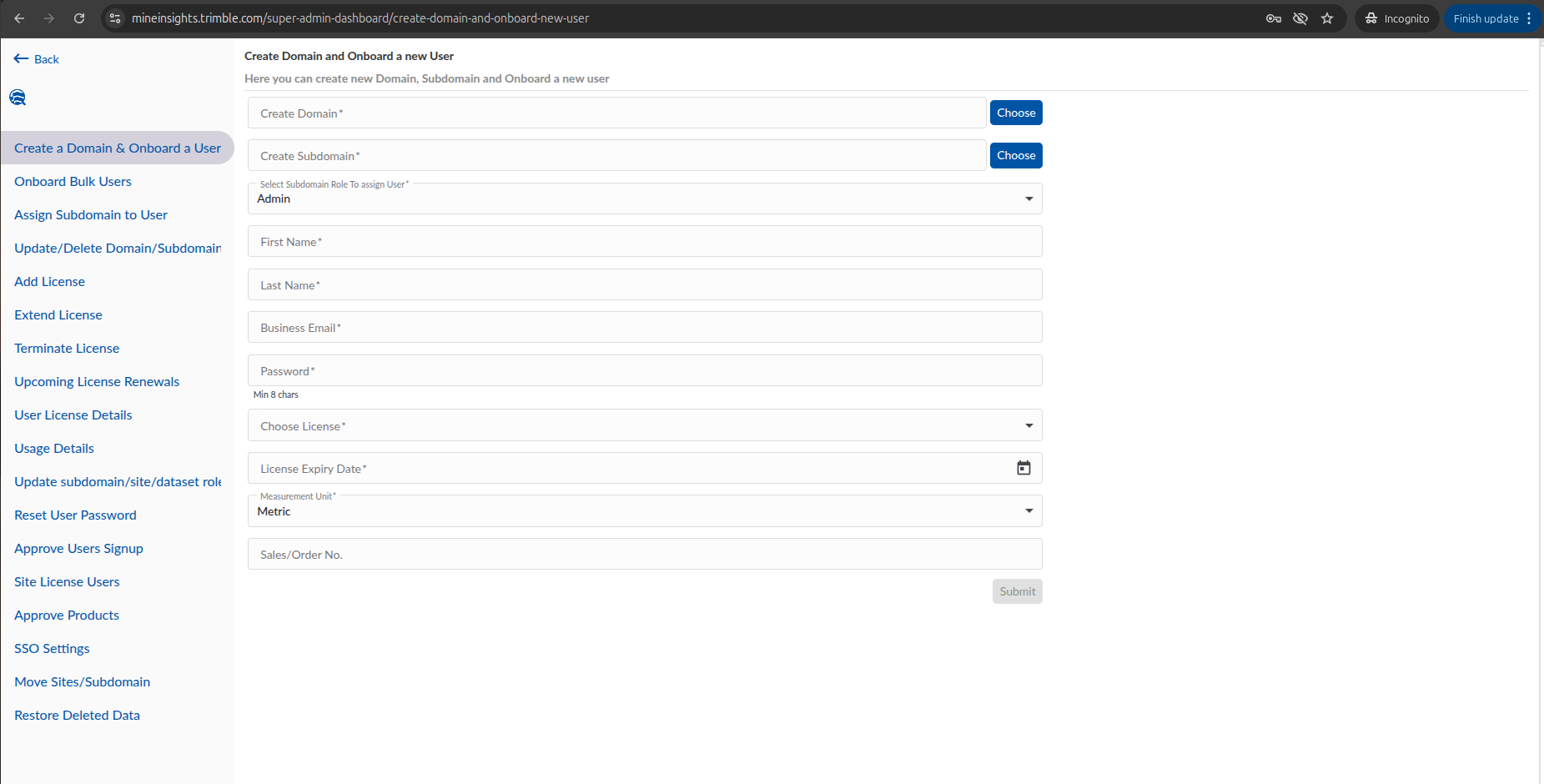

  • Click on “Create a Domain & Onboard a User”.

  • Choose the domain and subdomain to assign to the user.

  • Add the first name, last name, email (same as the Microsoft email), and set a password for that.

  • Choose the license.

  • Add the license expiry date.

  • Click Submit.

Info
  1. The system automatically detects your company domain. Example: hello@argotak.com → argotak domain
  2. When the domain is already created and Trimble SSO is enabled by the Super Admin, you can proceed without additional configuration, and login completes successfully.
