Strayos Blast Reporting
The blast report within Strayos allows users to create an automated report from their Blast Design, which will include everything within each module of the D&B workflow.

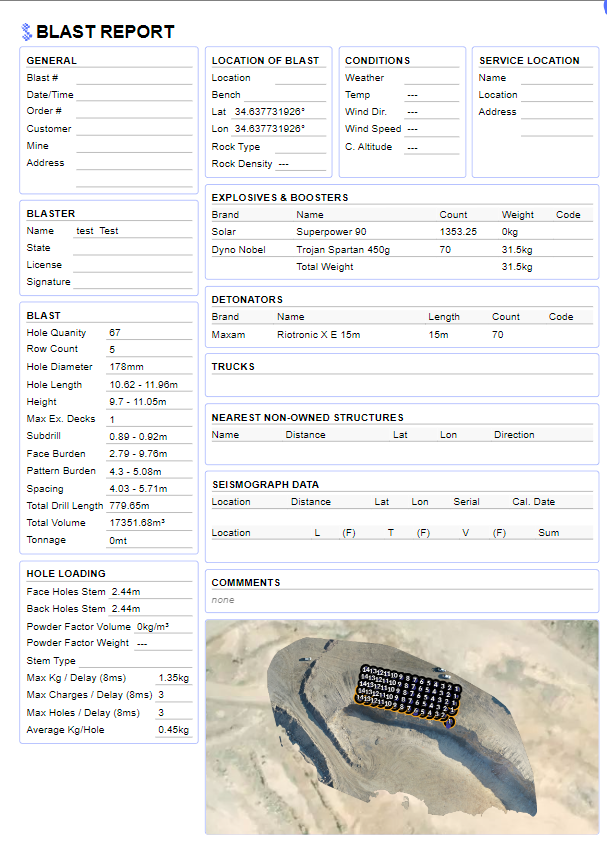

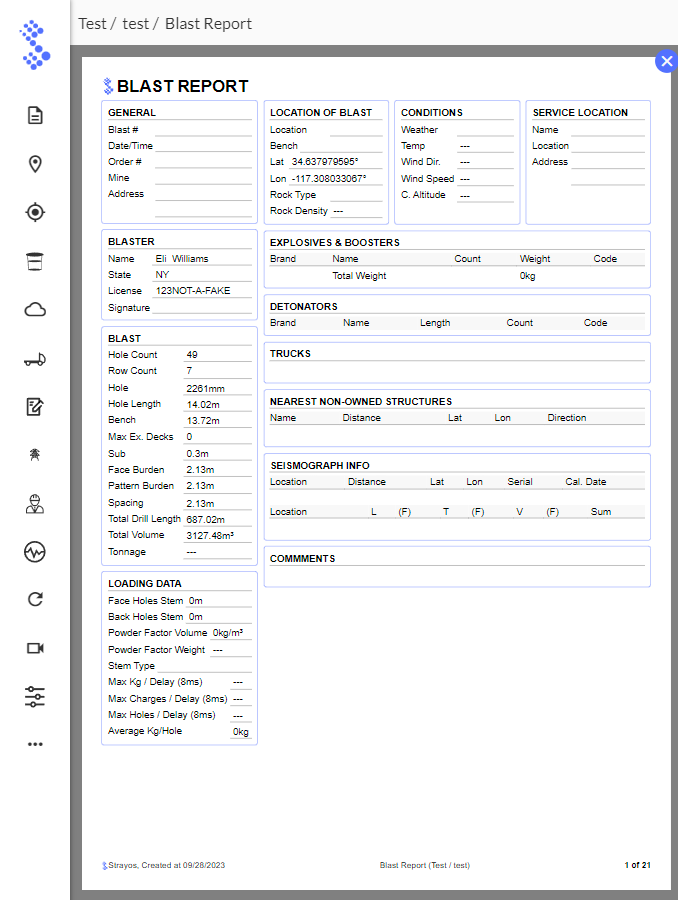

Once a drill and blast design has been completed, the blast report will compile the information from the designs into one report shown below.

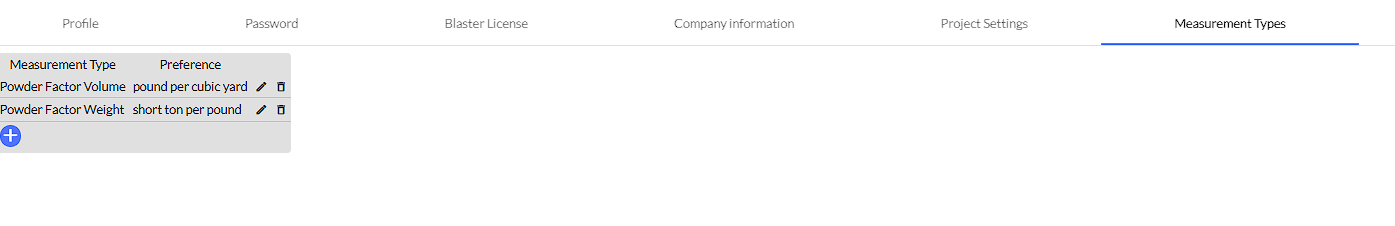

*** Note: Users can change Powder Factor and measurement Units in their Account Settings > Measurement Types ***

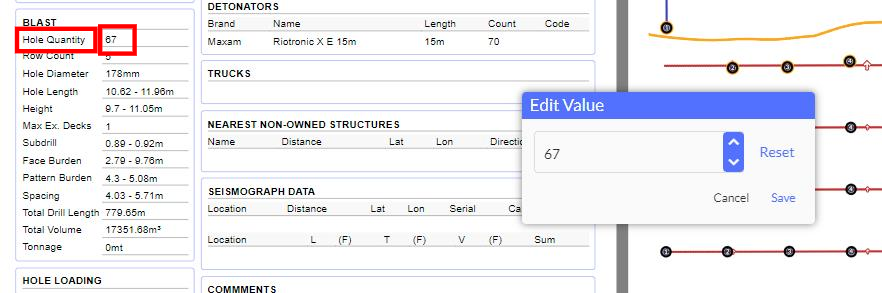

The fields within the report can be changed, including the titles and values that represent them. The default values will stem from the design within the project.
On the upper right-hand corner of the report, users have the options to Mark the Report as Complete, adjust Page Size Settings, Create a PDF, Share via email or read-only link, or Markup tools.

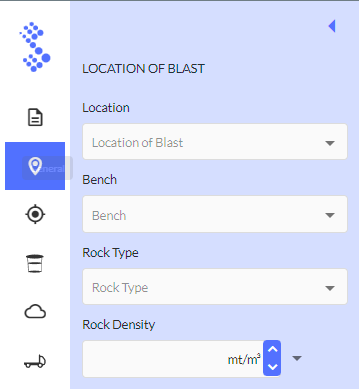

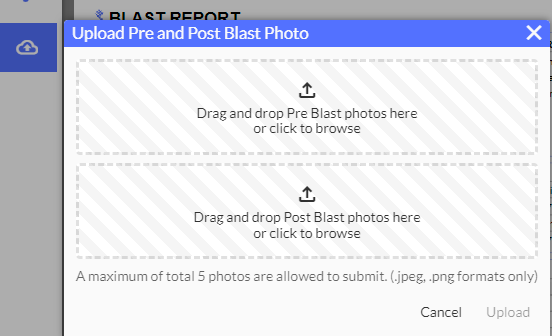

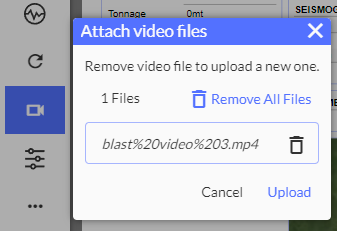

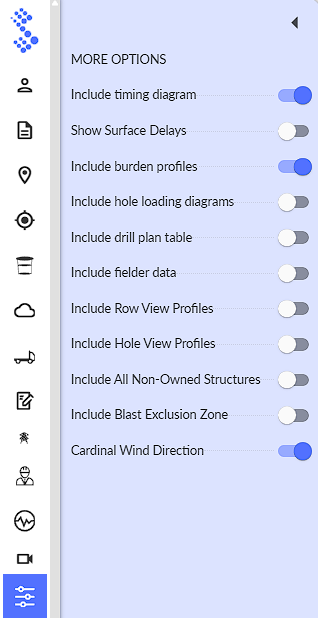

There are several pages that can be added to the report as well including attached PDF seismograph reports, blast videos, loading and timing visuals as well as Strayos Fielder Data. This information can be found and edited on the sidebar of the module. See the guide below referencing each option on the sidebar menu listed from top to bottom:

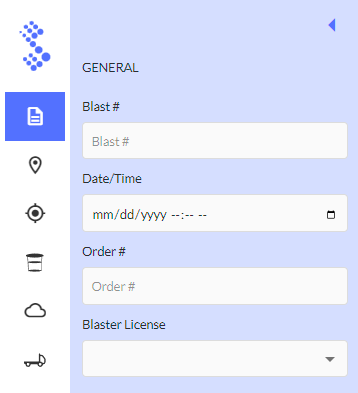

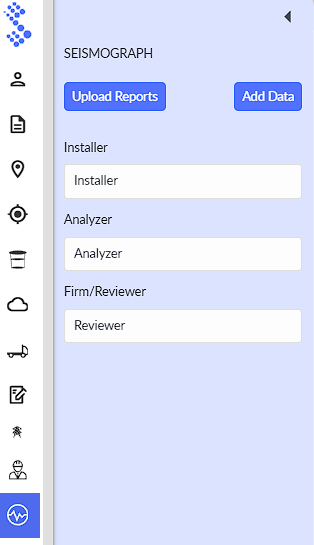

When completing the report, it is our recommendation to start at the top of the sidebar menu with General information, and work down from there. When it comes to uploading seismograph data or actual products used, select "Add Data" in the respective fields from the left hand side menu.

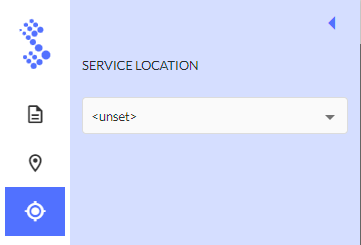

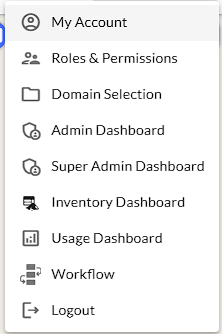

Note: Service Locations can be added in the Admin Dashboard > Domain > Sub Domain > Type > Service Location
Within hole loading, users can update their products used within the blast:

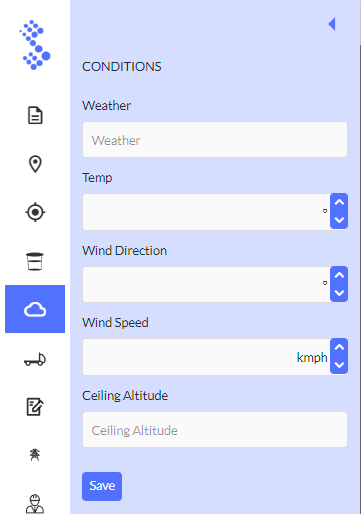

Weather info will auto-populate when a shot date and time have been selected. Users can then edit the data if needed.

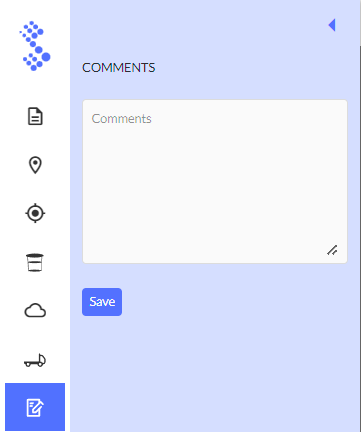

The comment section will run onto a second page when the first page of information fills.

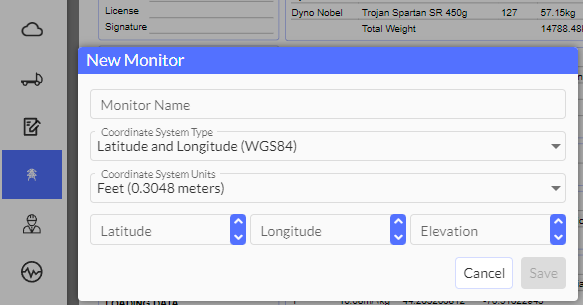

Monitor Locations will come from added locations in the Vibration and Airblast Module. Users can add monitor locations to the report here.
Note: Restoring Report Fields will restore to the original state
