Adding Non-Explosive Products to Strayos

Adding Non-Explosive Products to Strayos

When looking to account for Non-Explosive Products within the blast design and reporting process, Strayos has an option to add such products to user site product details.



Adding products from Site Details:

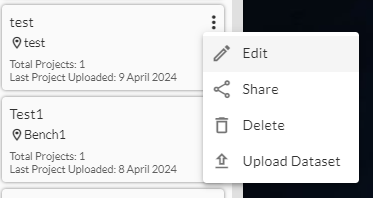

Under the options of the site, select "Edit"

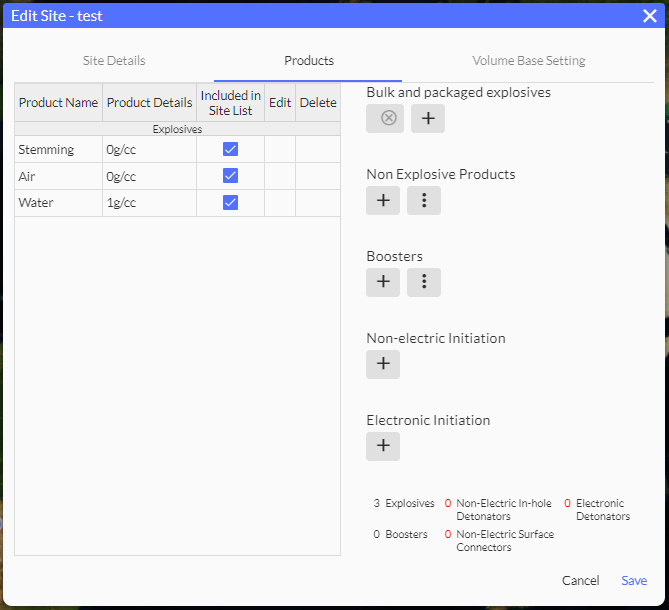

Select Products

Here, users can enter all products which they would like to have saved on the site for loading and timing within their designs.

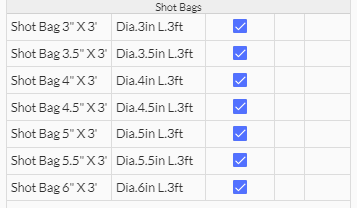

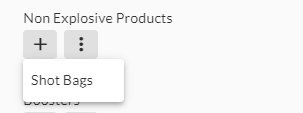

For Non-Explosive products, hit the "+" button to add default Shot bags:




To add custom Non-Explosive Products, hit "Create"




Fill out the following fields for the product to be saved in the site:




Blast Reporting



***Note: When in a project, you can also add products using the "Edit Product List" within the loading module. ***

To account for these products on the Blast Report, users will want to use the "Update Actuals" function within the loading design module:


Select "Update Actuals For All Holes" for Package / Booster / Dets

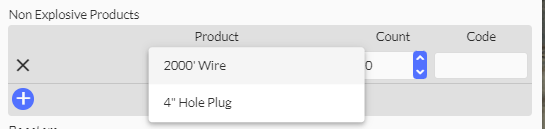

Choose from the drop down which Non-Explosive products you would like to include on the blast report.
