Importing Dip Data

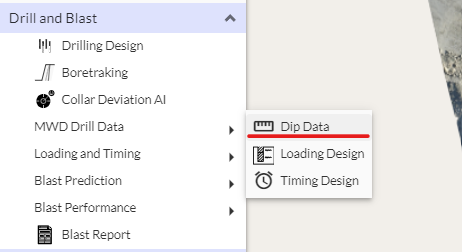

Strayos provides an option to its users to enter actual hole depths and angles as Dip Data. This can be imported from CSV, or manually entered, and then reported. To do so, select Dip Data under Drill Design, Loading, and Timing:

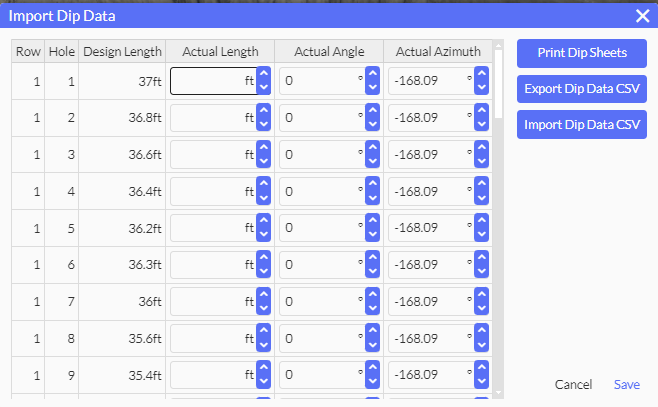

From here, users can upload their data or plug in the values manually:

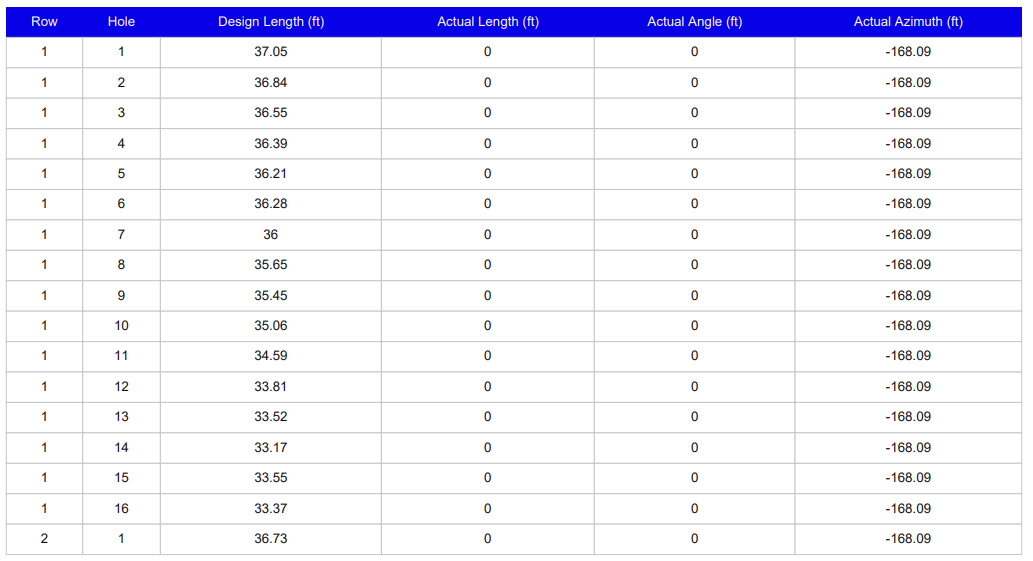

Once the values are entered, the Dip Sheets provided appear as shown below:
It is important to note, that this will not change the lengths of the designed bore holes in the drill design.
