Creating Shot Reports from Truck Data
When utilizing truck data for product usage within a blast, importing the truck information into Strayos only takes a few clicks. To start, the user will want to create a virtual model workspace and navigate to the Drill Design Module to upload the truck data.
See article here for creating a Virtual Model

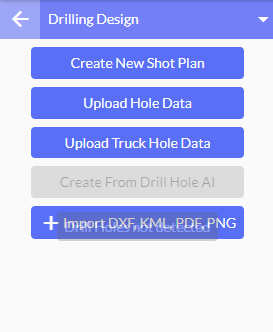

Once in the Drill Design Module, the user will want to select the Upload Truck Hole Data option.

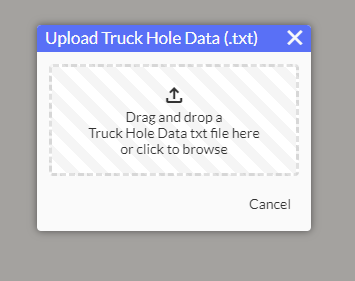

This will prompt a window to uploaded a .TXT file with the necessary hole information.

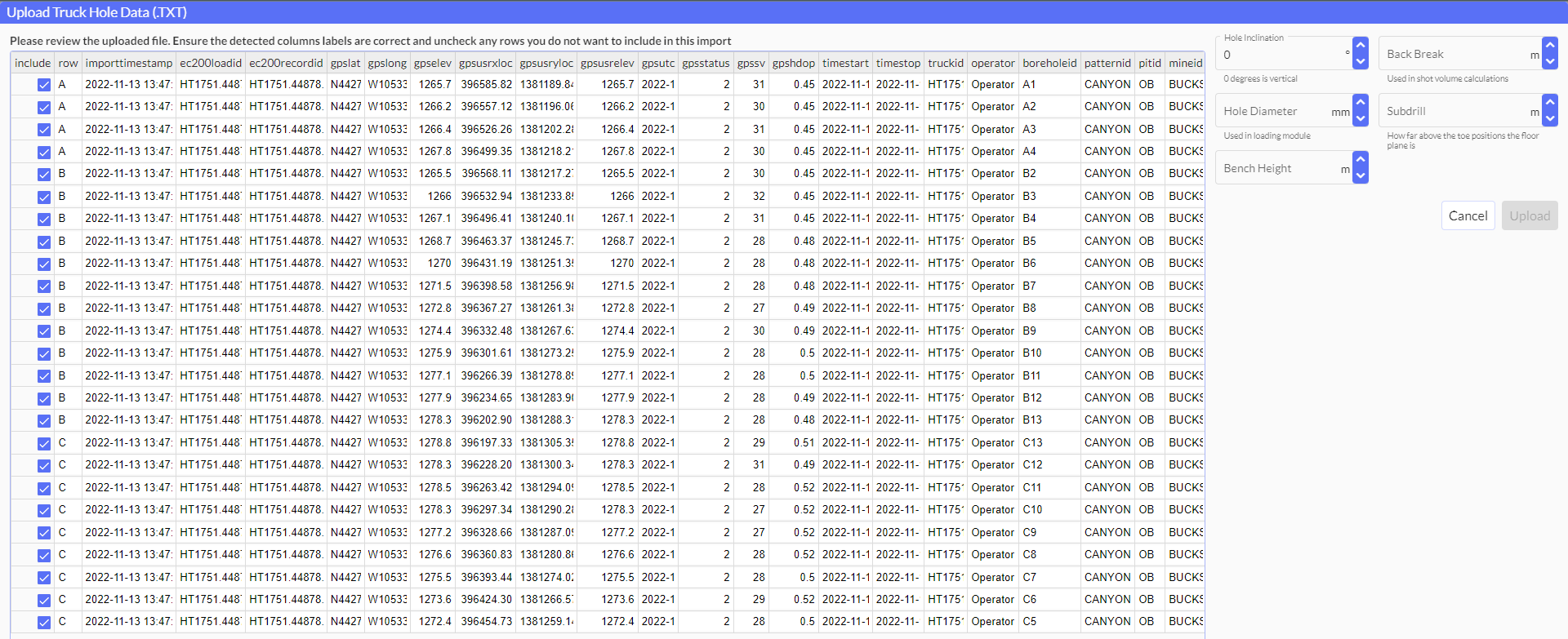

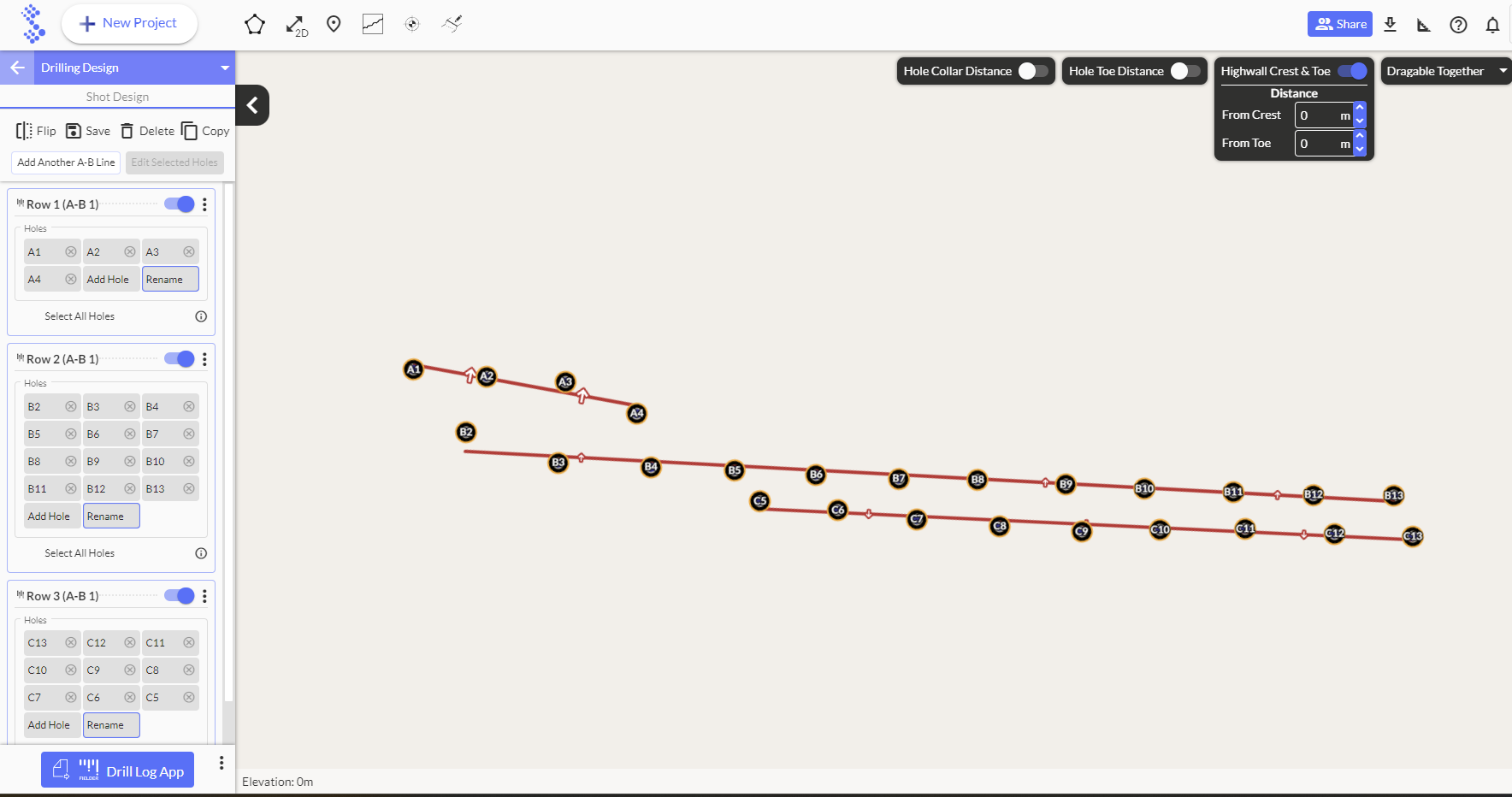

Next, the user will need to input the following fields in the upper right-hand corner (Hole inclination, Back Break, Diameter, Subdrill, Bench Height). Although in the truck data, inputting these values will allow Strayos to report them correctly. Once complete, the user will see their data populate in the virtual model.
Navigating to the Loading module, users can add primers and apply primers to all holes if not incorporated in from truck data. Once applying a primer (or multiple) to select holes, hitting the "Update primer for all holes" will apply the result to the remaining holes.
Next, once the blast is timed, the user can report the results in the custom Strayos Blast reporting module. All the information within the Blast report will be collected from the truck data, GPS location and information provided by the user.
