How to Upload a .JXL file to Support Local CRS

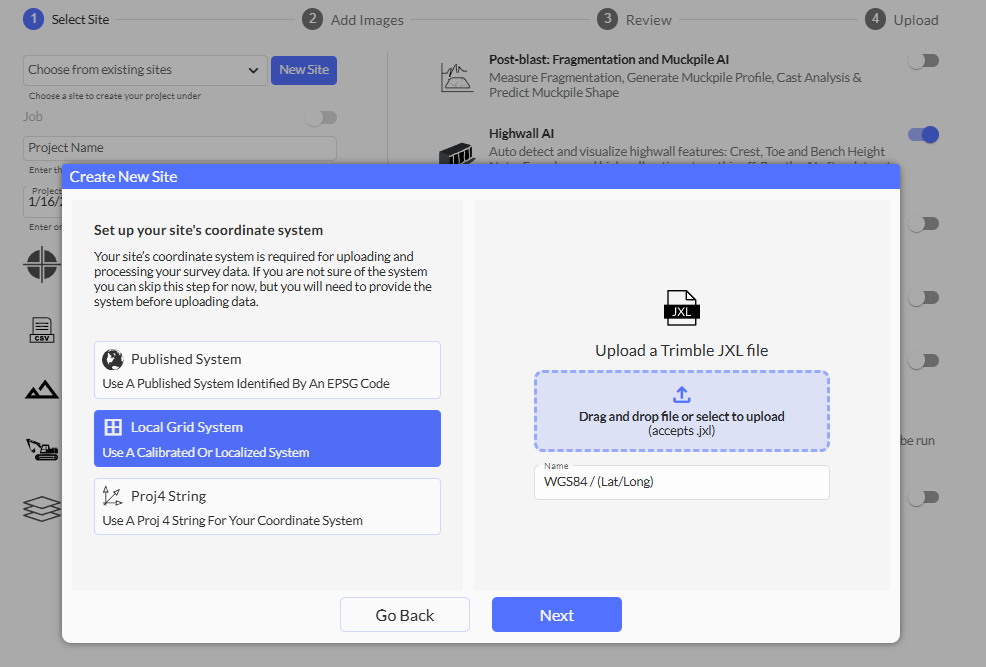

In Strayos, users can upload their .JXL files to support their local coordinate systems. This can be done when creating a site for the first time, or once a site is created, the CRS can be changed. When creating a new site, select Local Grid System. Users can then upload their files directly into the blue box.

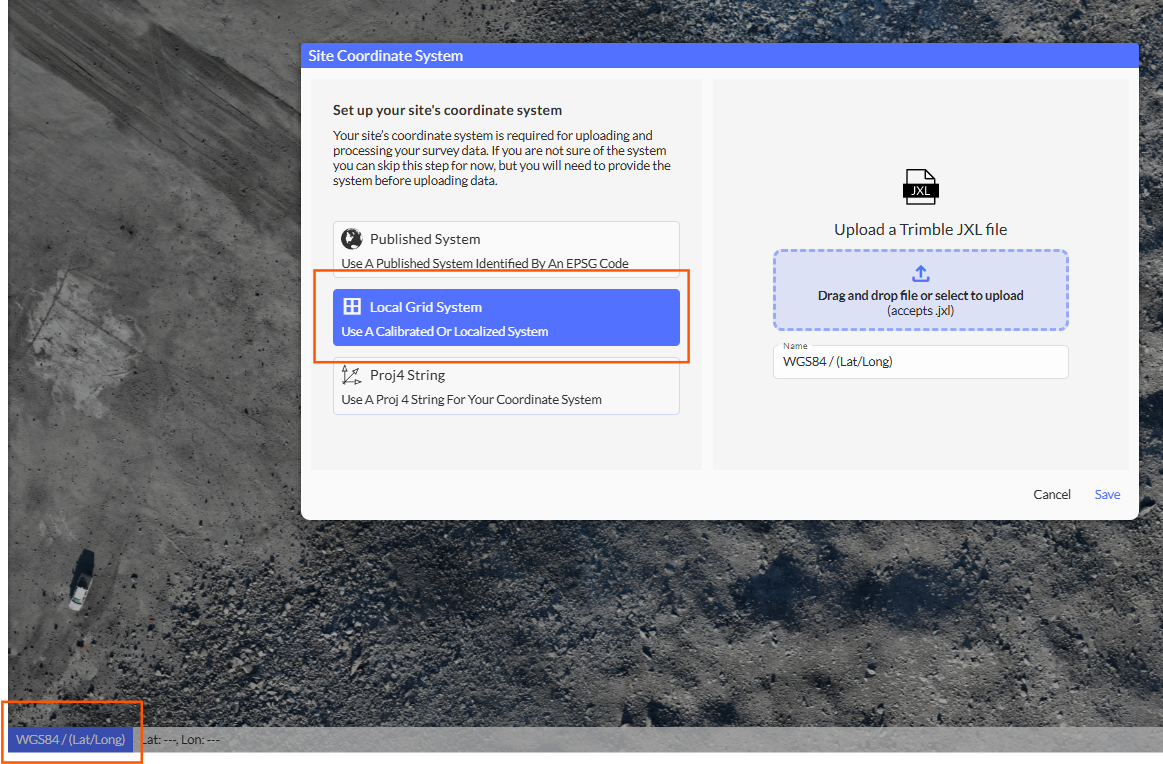

If a site has already been created, and users are looking to upload their .JXL files, click on the coordinate system status bar in the lower left-hand corner and select Local Grid System. Here, users can upload their files accordingly.

Please reach out to Strayos support if you have any issues with your coordinate systems.
