Uploading Measure While Drilling Data

Uploading Measure While Drilling Data

To upload MWD data in Strayos, follow the steps below:

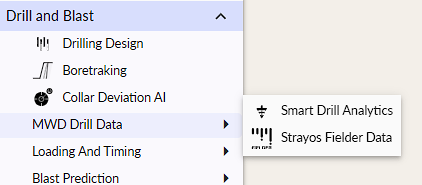

Navigate to the MWD module in Strayos > Smart Drill Analystics:

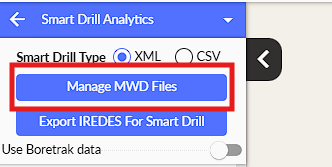

Manage MWD Files:

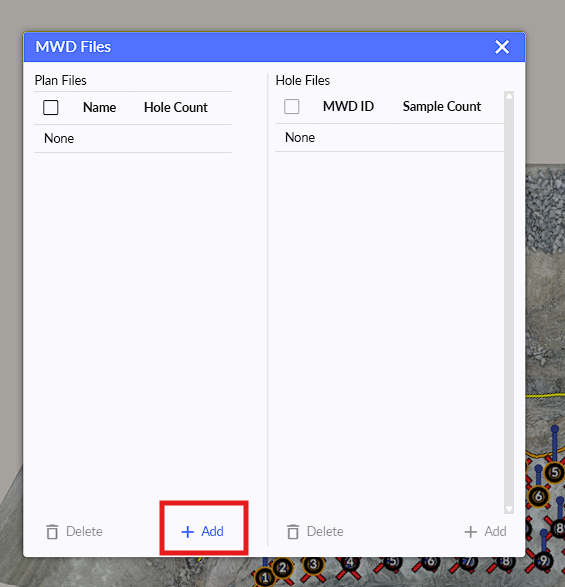

Select Add:

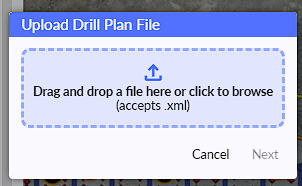

First, upload the Drill Plan file:

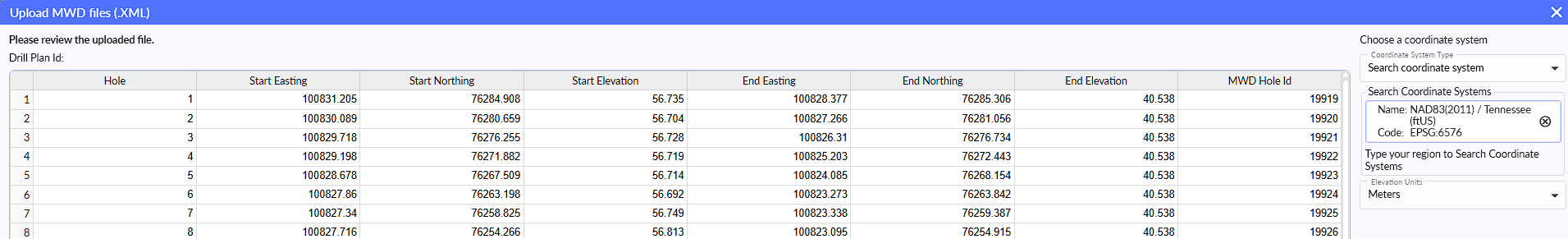

Ensure the columns are correct, and a metric EPSG code is selected:

Ensure the MWD holes overlap the model in Strayos. If not, check the EPSG code again.

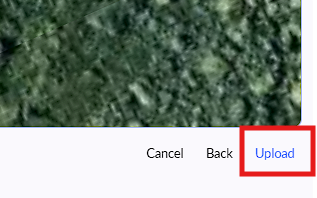

Select upload:

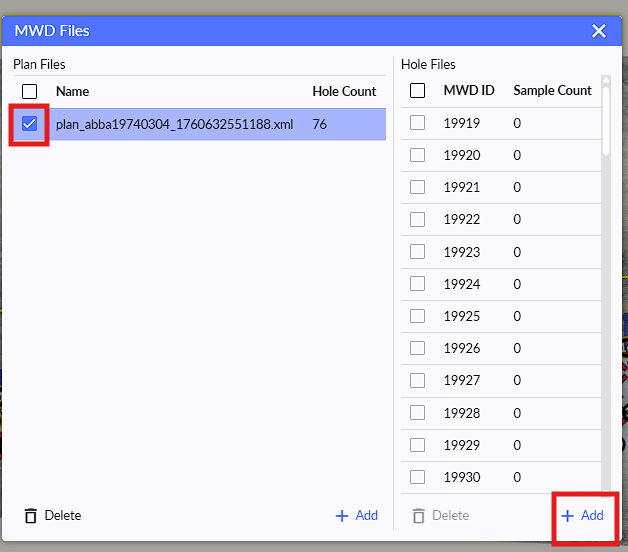

Once the drill plan file uploads, users can then upload their MWD files:

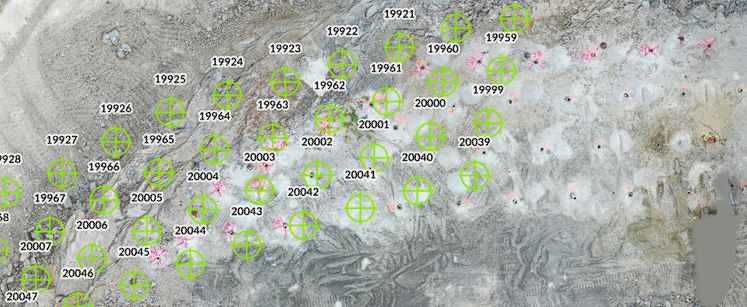

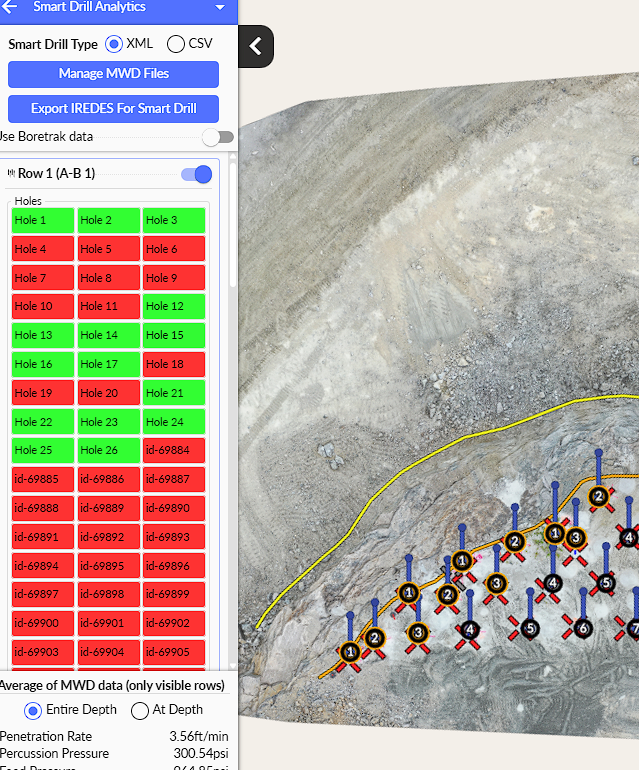

Once processed, drilled holes will appear with a red "X". Any holes highlighted in red on the left-hand side notify users that the hole does not correlate with the drill plan. An additional MWD file can be added if needed by following the steps from above.
