Timeline Chart with Custom Sizes
Timeline Chart with Custom Sizes

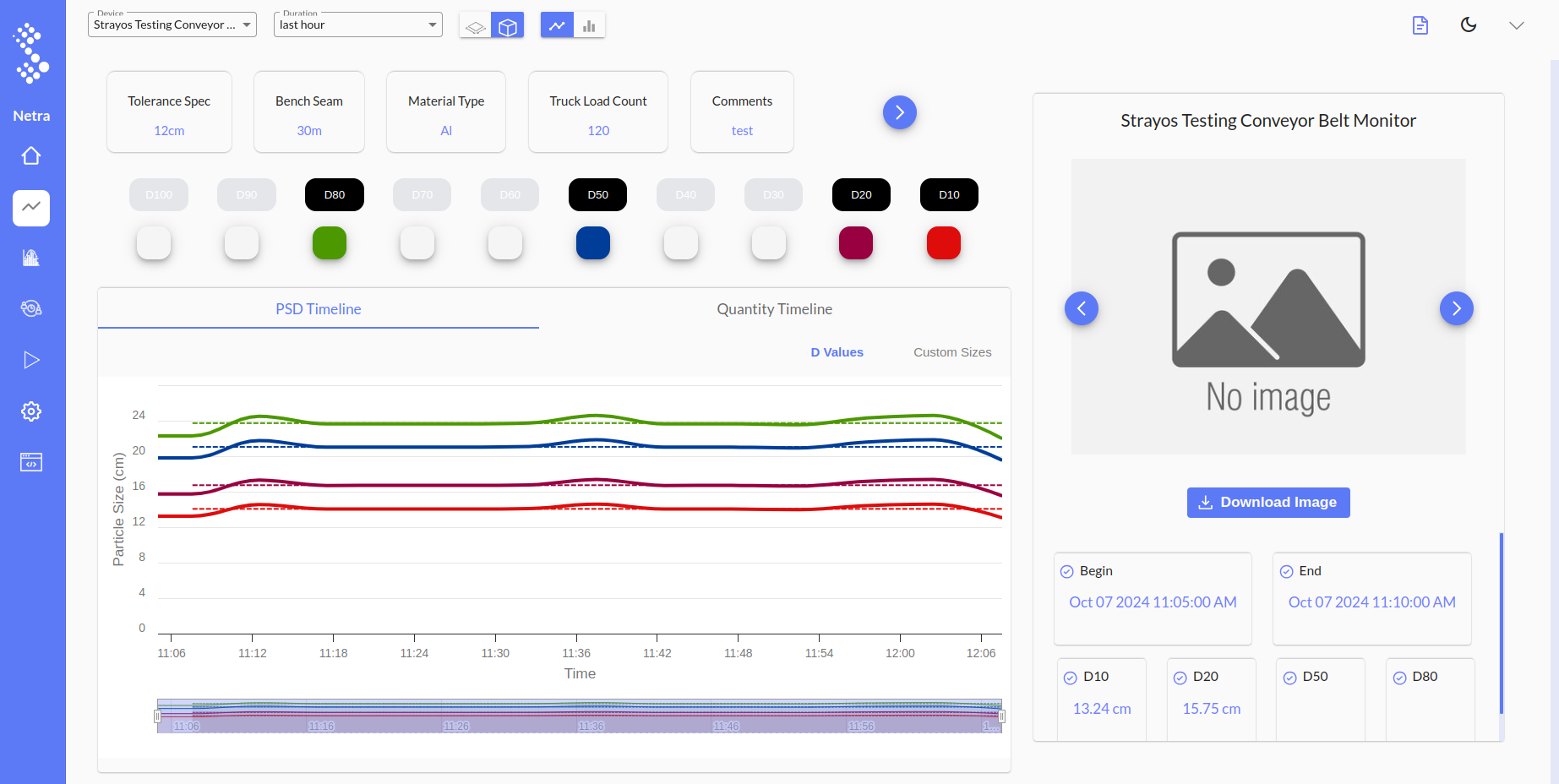

- Navigate to Analytics: Click on the " Analytics" option from the menu bar.

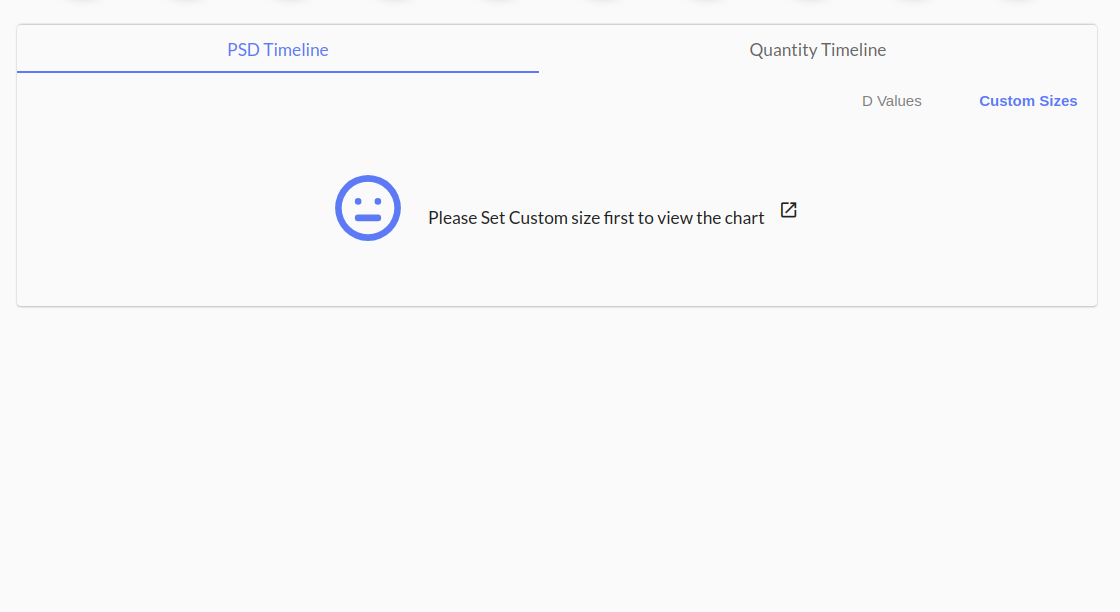

- From the Analytics section, click on the "PSD Timeline" tab. In the PSD timeline chart, you will find options for D values and Custom Sizes. Select the Custom Sizes option, then click on beside the launch icon of "Please set a custom size first to view the chart”.

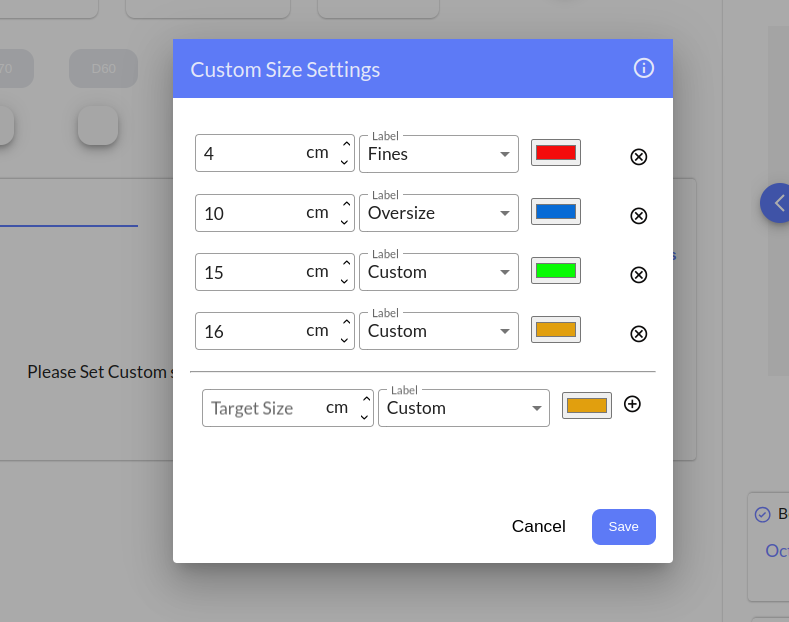

- After clicking the launch icon, a dialog box will open for setting custom sizes. You need to add a custom size, label it as needed (e.g., 'custom', 'fines', or 'oversize'), and choose a color for that custom size. Then, click on the add icon button. You can add multiple custom sizes this way. After adding the custom sizes, click on the save button.

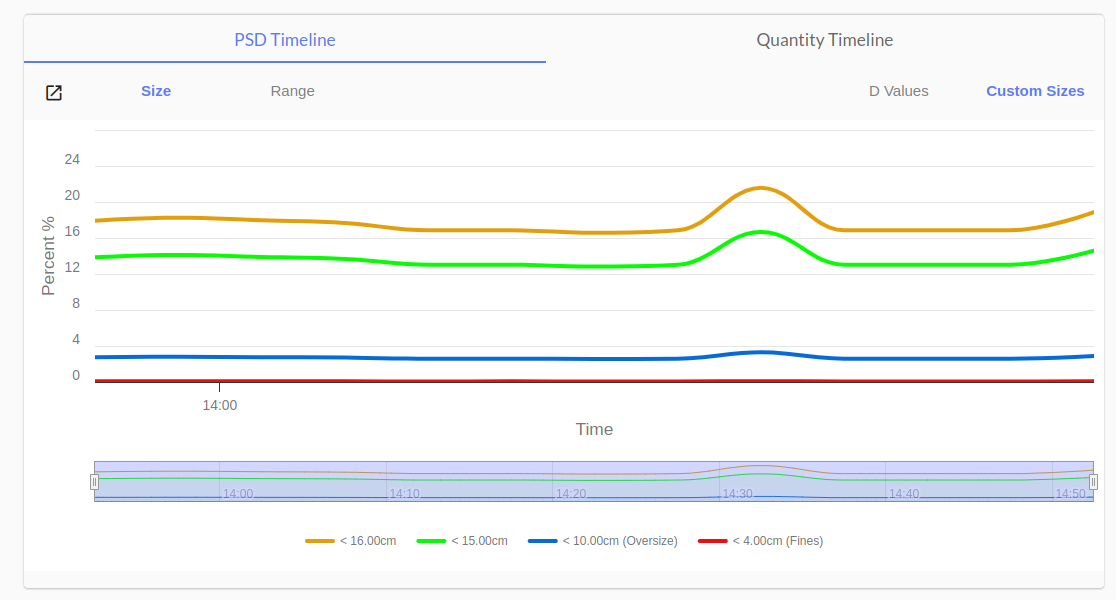

- After saving the custom size settings, you will be able to see the chart for the custom sizes.

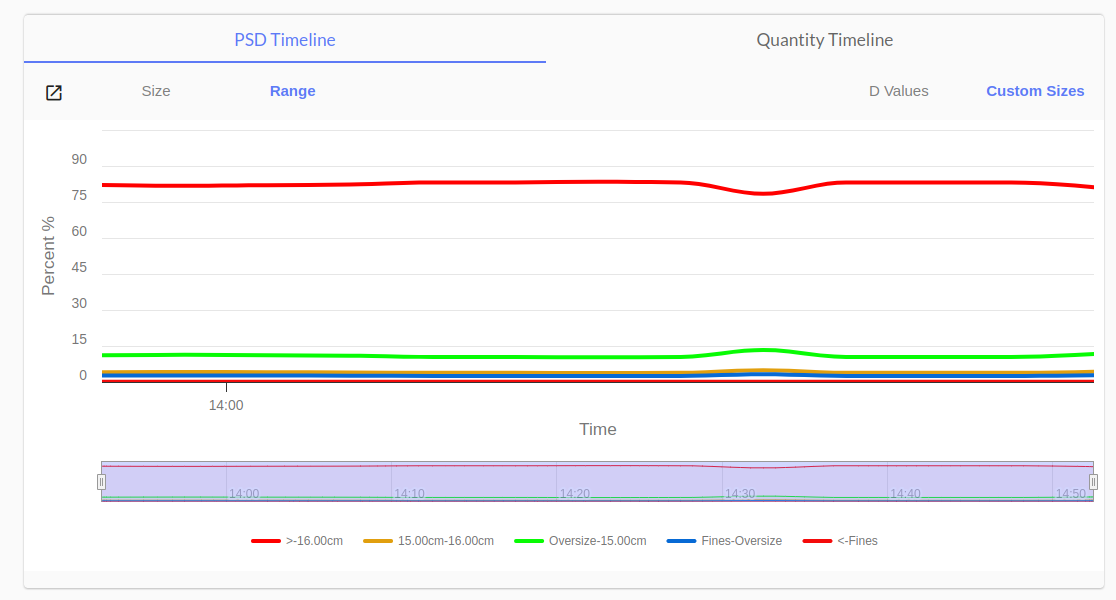

- There is also an option for the size ranges chart, which you can view by simply clicking the range option on the left side.here you can see the size range chart.
