Uploading and Managing Block Models

Uploading and Managing Block Models

Strayos allows users to upload and view their block models within their processed 3D surfaces. To upload block models, follow the steps below:

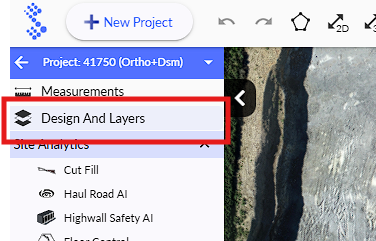

Navigate to Design and Layers:

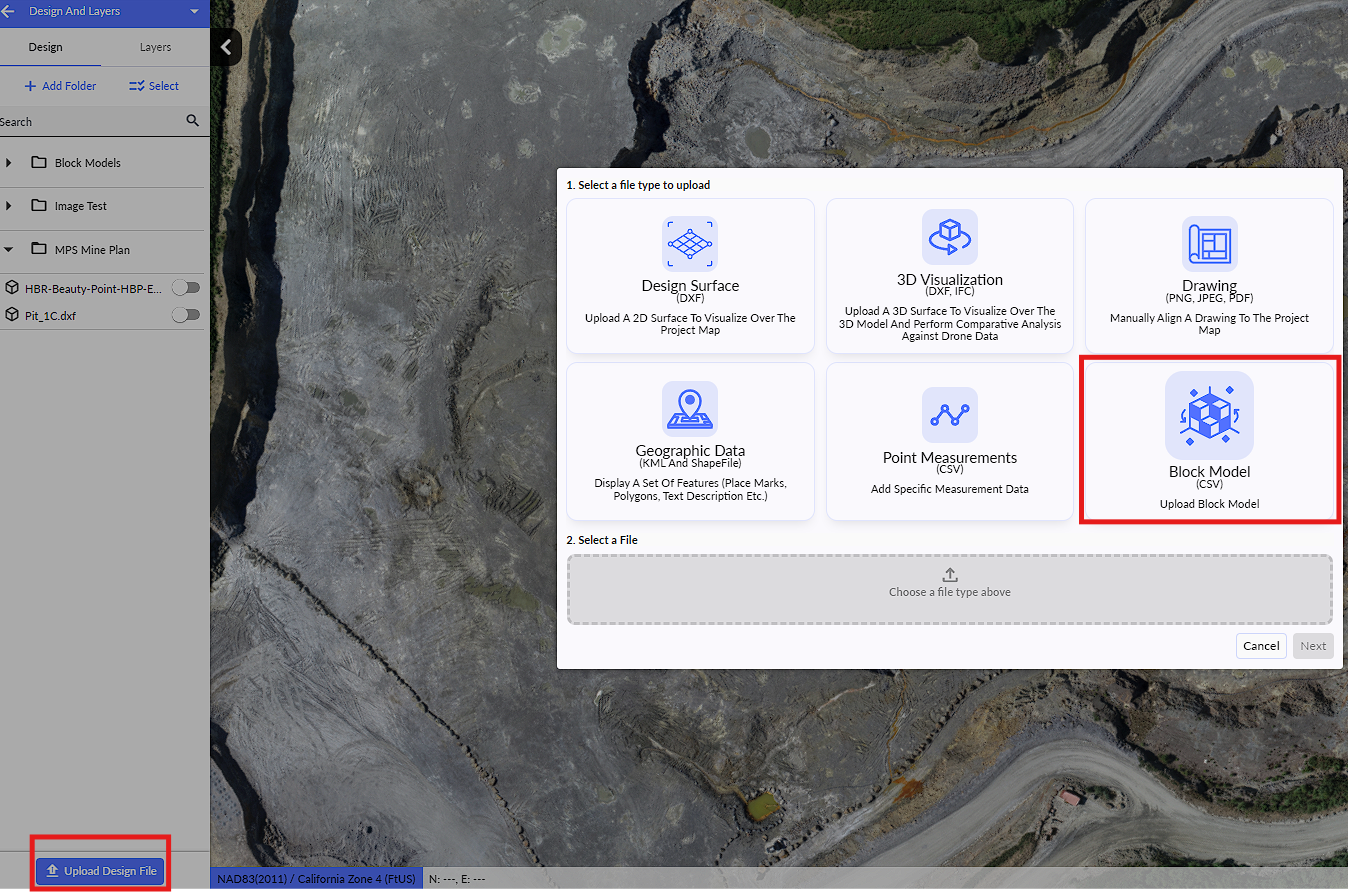

At the bottom left-hand corner, select "Upload design file" and then choose "Block Model CSV";

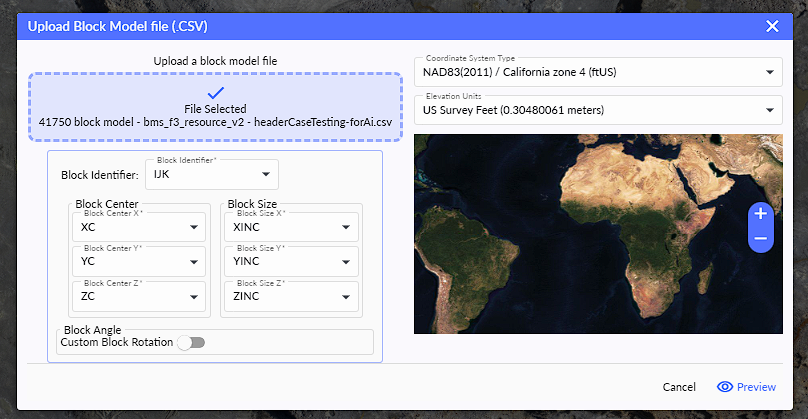

Assign the block identifier, block center, and block size. Make sure the correct CRS is selected with proper elevation units.


Once the information is entered, select preview and then submit.

Viewing Block Model

To view the uploaded block model/s, users will need to define an area of interest (AOI). This can be done by drawing a polygon to view the block model data within the AOI.

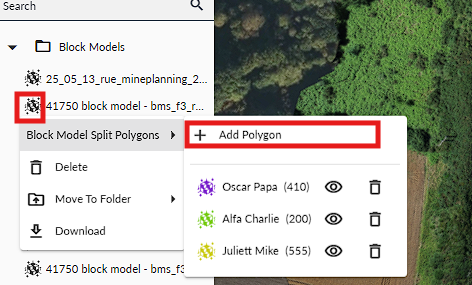

Select the block model icon on the left-hand side, and choose "+ Add Polygon"

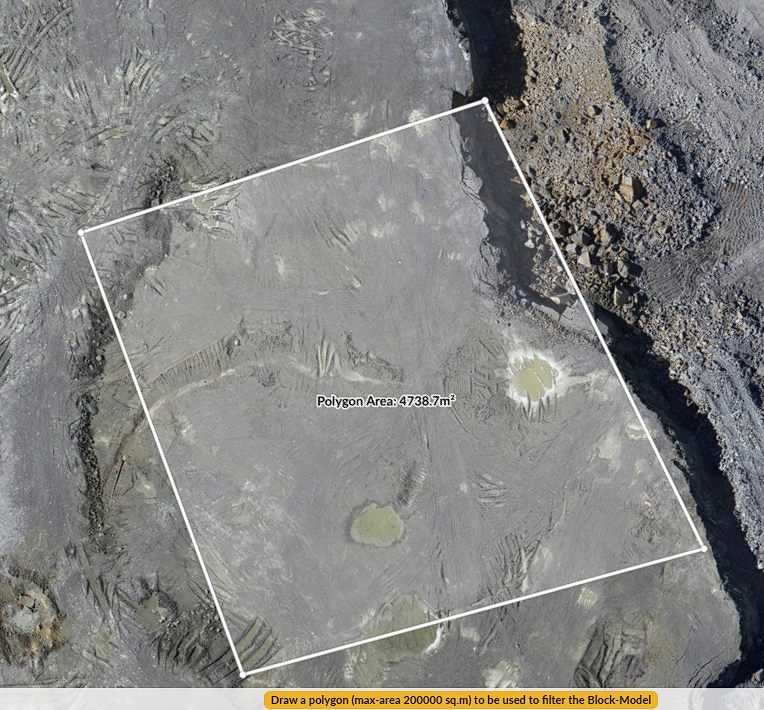

There is a size limit to the area that can be displayed at one time. See ithe mage below showing the limit on the bottom highlighted in orange:

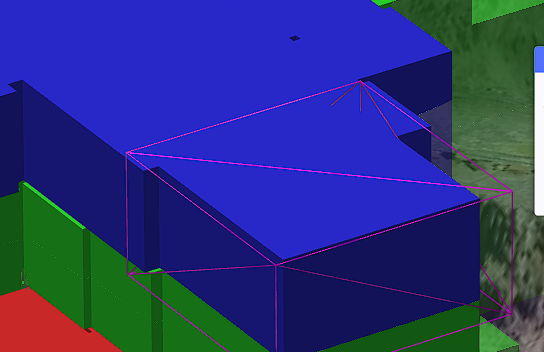

Once the polygon is drawn, it may take a few moments to load:

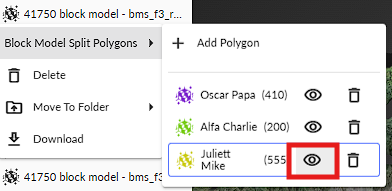

Once the polygon has processed the block model, select the view icon:

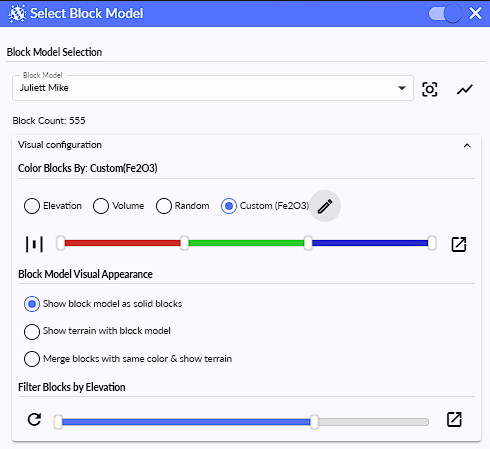

When in view, users can view block model properties (left-hand menu), adjust how they would like to view the block model (right-hand menu) based on elevation, volume, random, or custom.

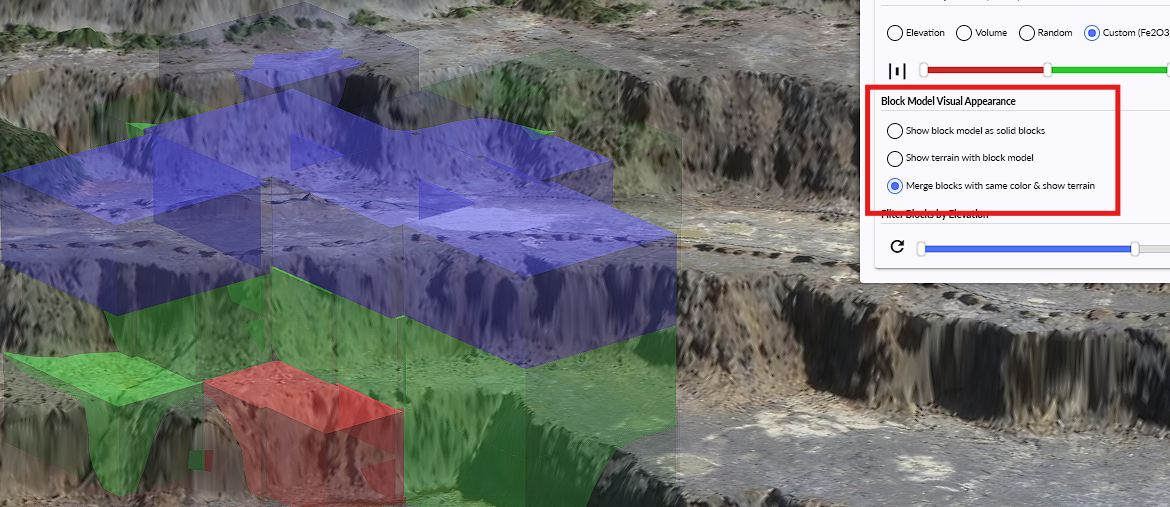

Users can also change how they wuold like the block model to appear within the terrain model:

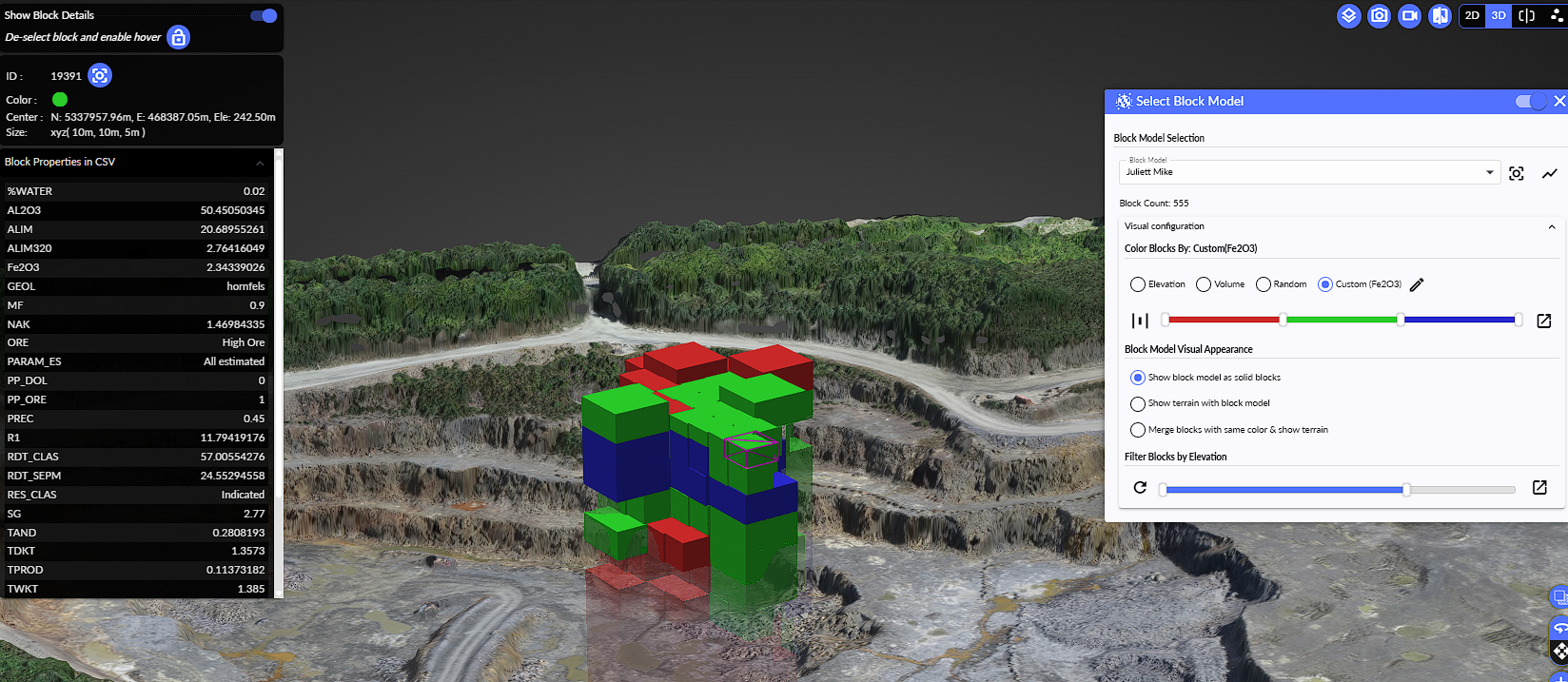

Lastly, users can select a single block to view individual properties within the block.
1.) Select a block within the model

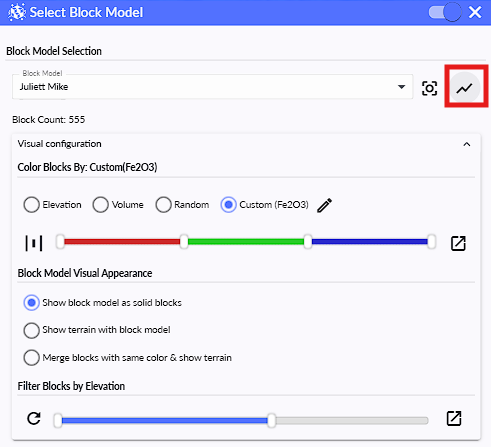

2.) Choose the Icon shown in the image below (red square):


Select the properties that you would like to view in the table:


Tip: If you have multiple block models, create a folder to organize your files:
