Shot Plan Exports in Custom EPSG:

Users can export the Shotplan reports as a CSV in LatLon (EPSG:4326), UTM and as IREDES format after running the burden analysis.


  • If user selects Lat-Lon, then Shot plan will be downloaded in by default EPSG:4326 coordinate system.

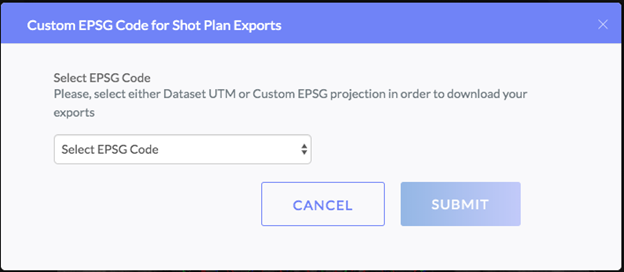

  • If user selects UTM or IREDES, then a new pop up screen will allow to enter custom EPSG code.

Once you select the dropdown,  it’ll show two options to submit and download the reports.

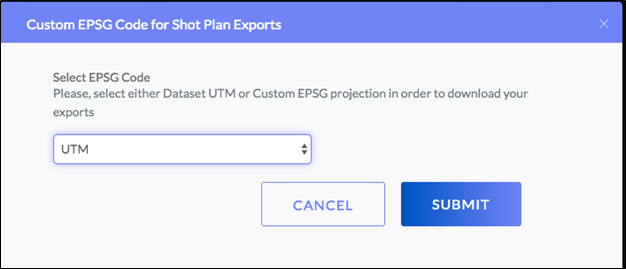

  1. UTM indicates Dataset Global coordinate system i.e., WGS84 UTM with corresponding zone.

Select the UTM option and SUBMIT it. Shot plan will get downloaded in UTM coordinate system

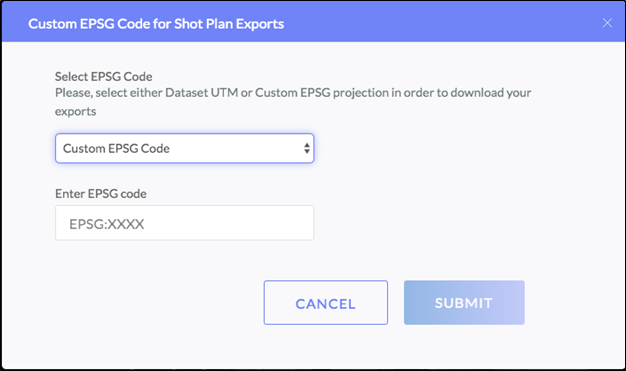

2. Custom EPSG Code will allow the Shot plan to be downloaded in specified EPSG Code



Enter your EPSG code in the format of EPSG:XXXX (for example: EPSG:3857). If it is a valid code, SUBMIT button will get enabled and click on it, the reports will get downloaded in custom EPSG which is provided by User.

For more info, also visit Drill plan export in custom coordinates
