Model and Drill Pattern Overlay
How to Toggle Projects on Site Layer
Strayos allows users to overlay their projects onto one another. To do so, follow the steps below:

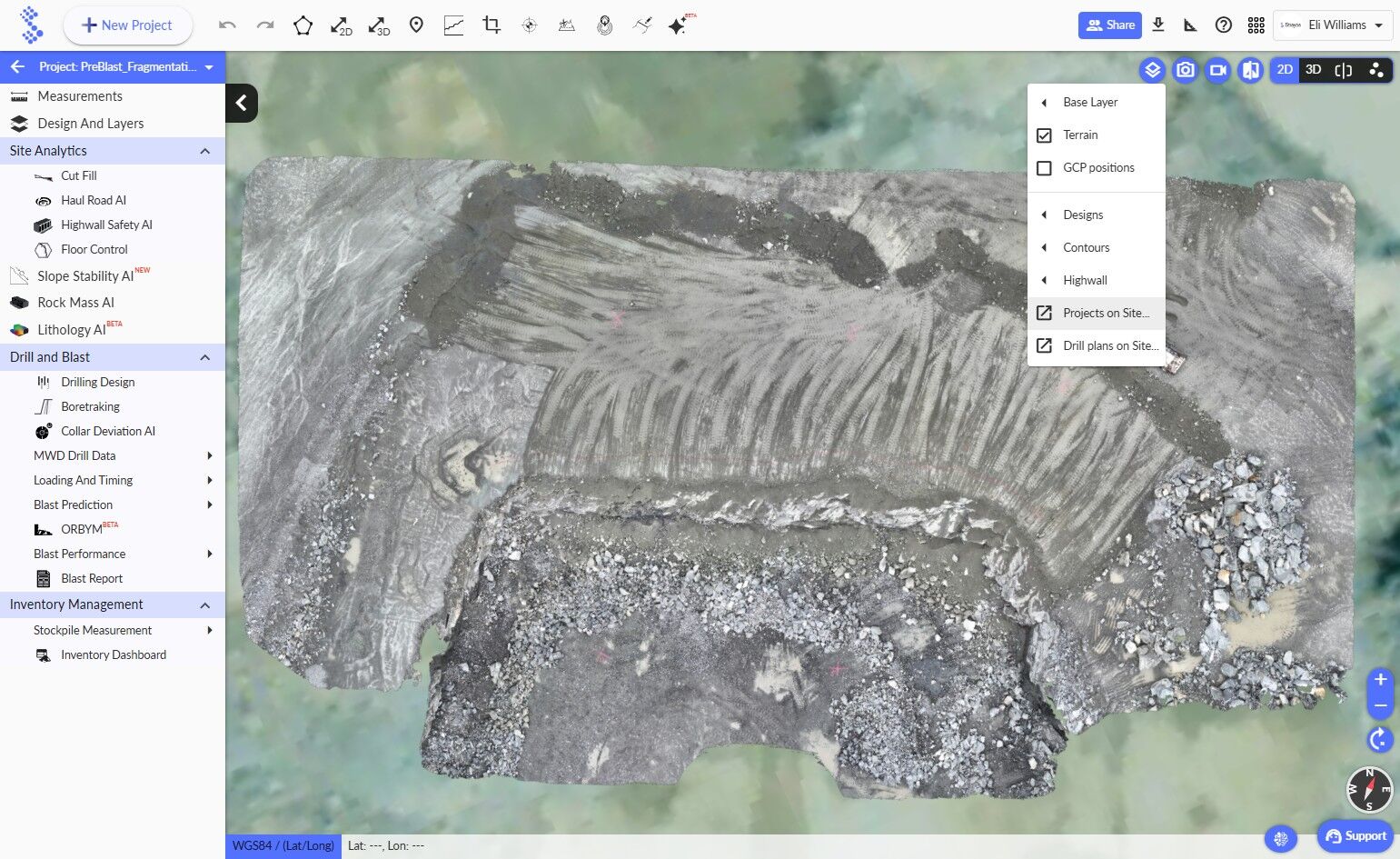

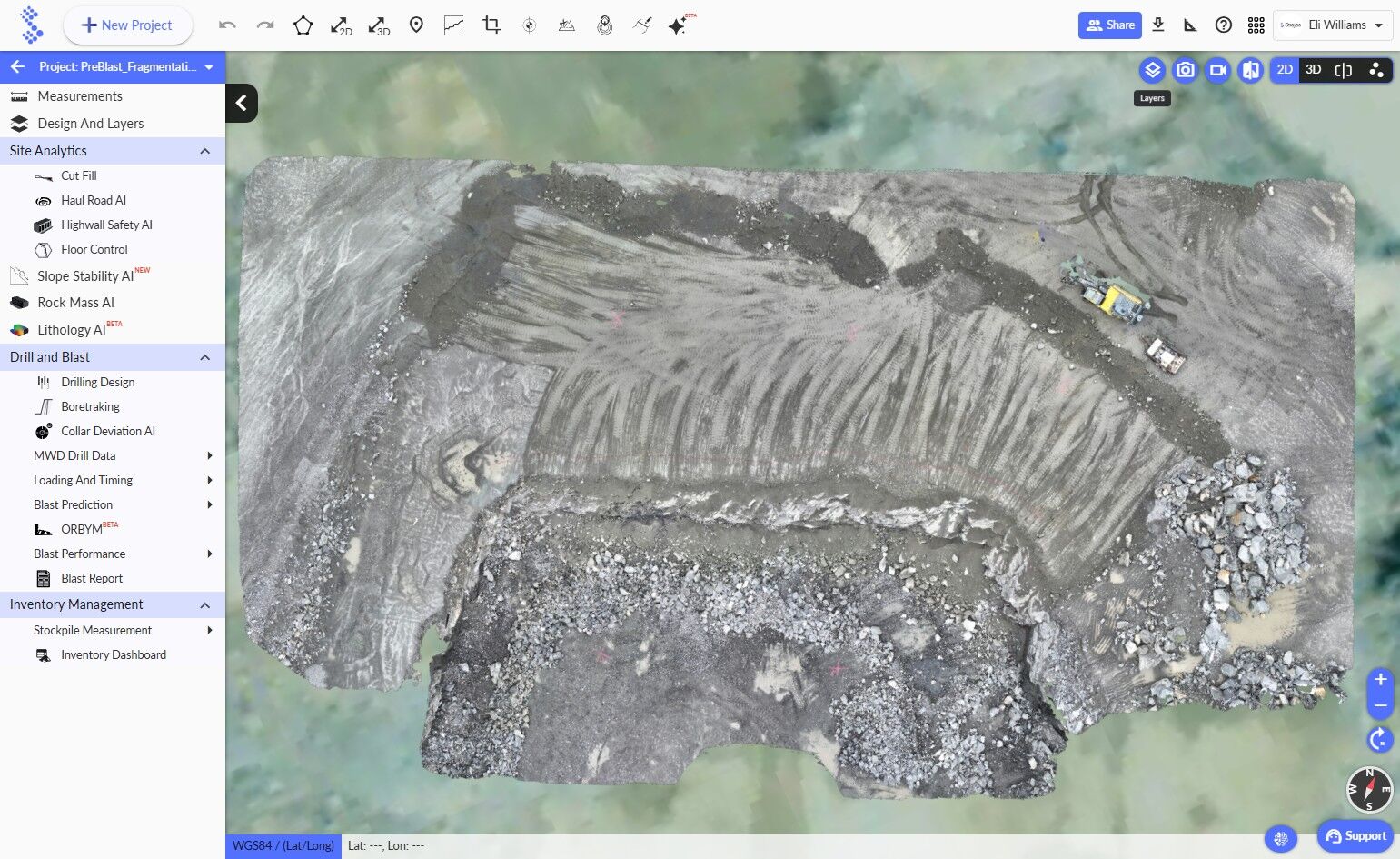

Click "layers"
Click "Projects on Site..."

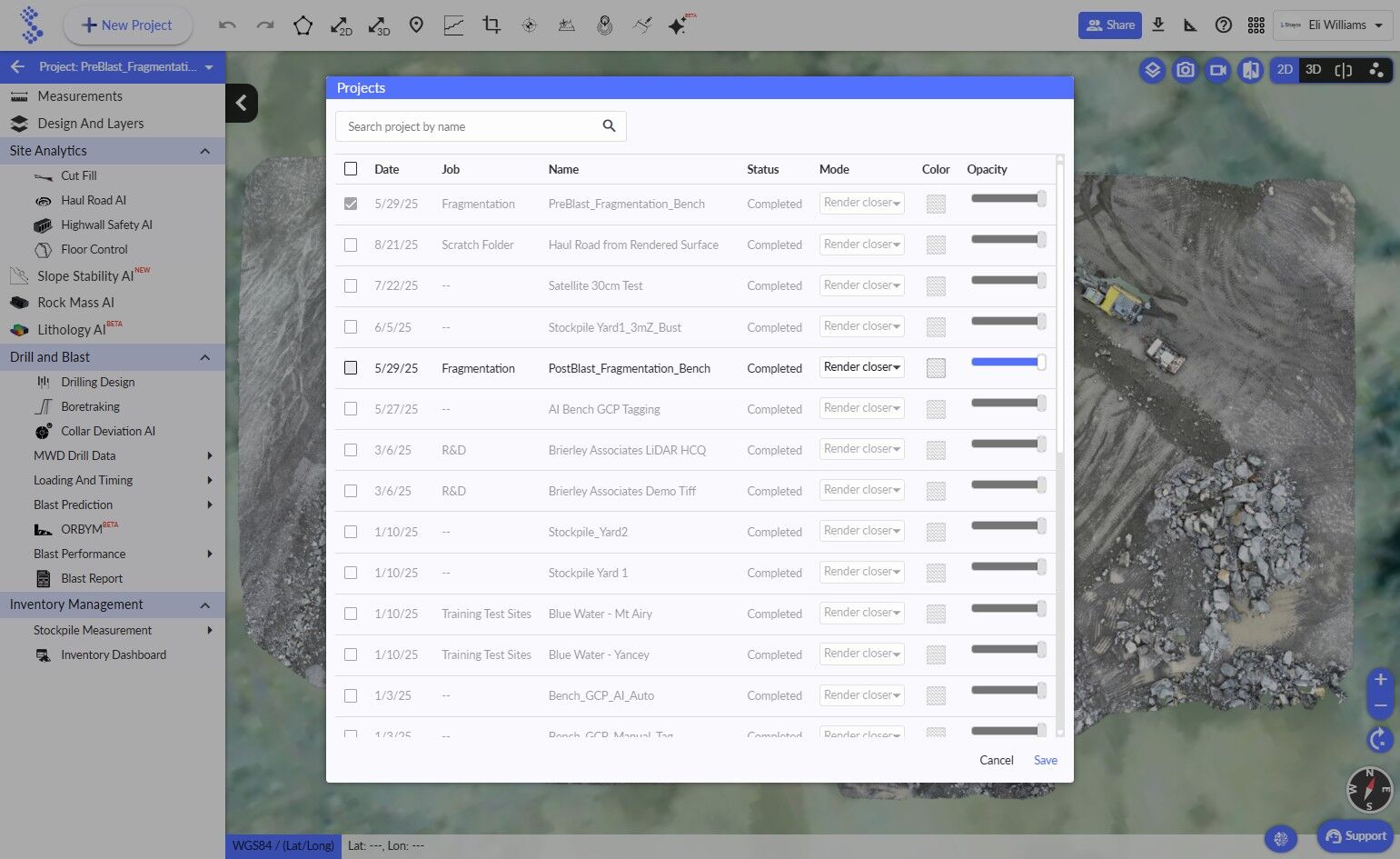

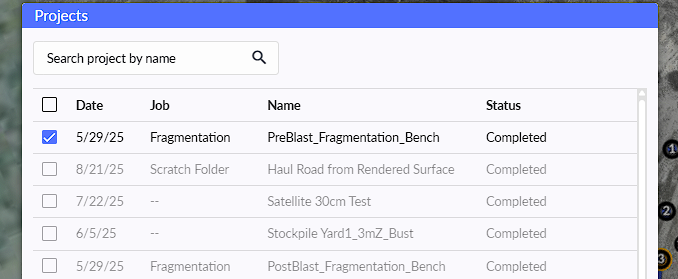

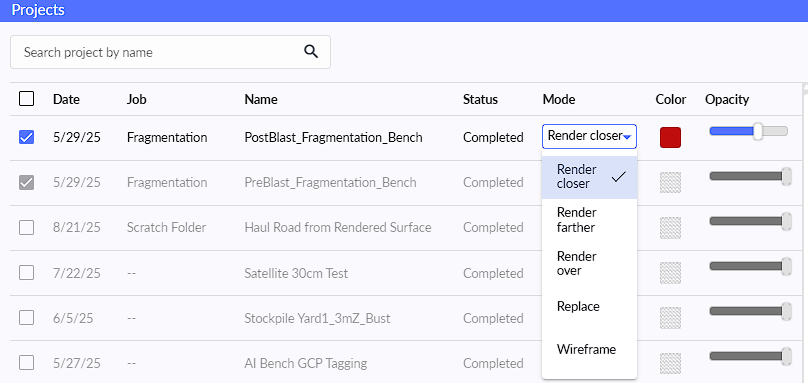

Select the model that you are looking to overlay on the current model. Users can adjust the color, mode, and opacity for the overlaid model:
Click "Save"

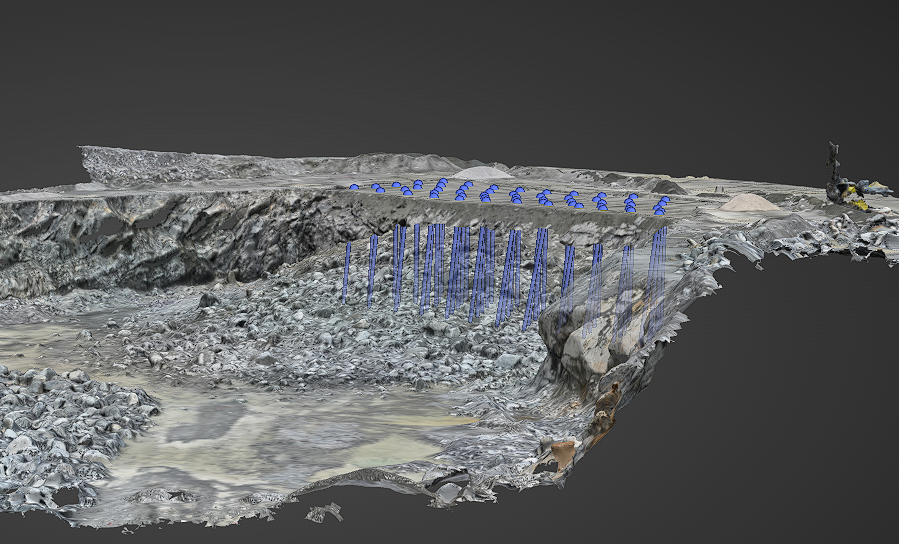

Model overlays will appear in 2D and 3D:

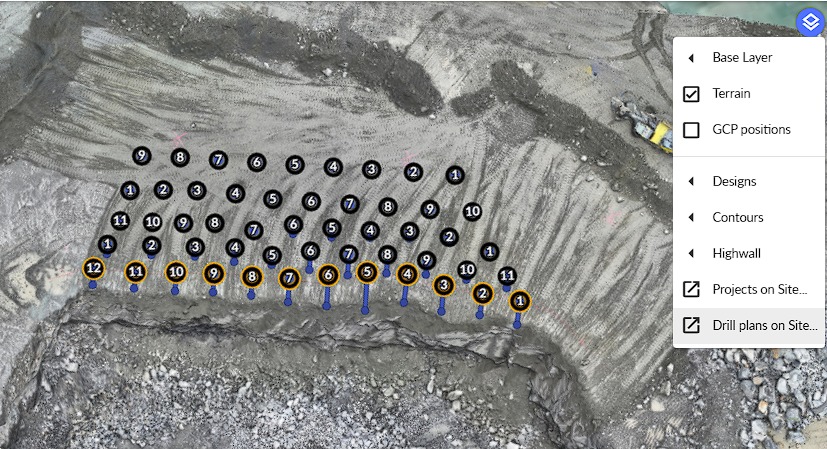

Drill plans can also be overlaid to models using the same "Layers" functionality:
