GCP AI - Video Tutorial

Section 1: Uploading Ground Control Points

Step 1

​

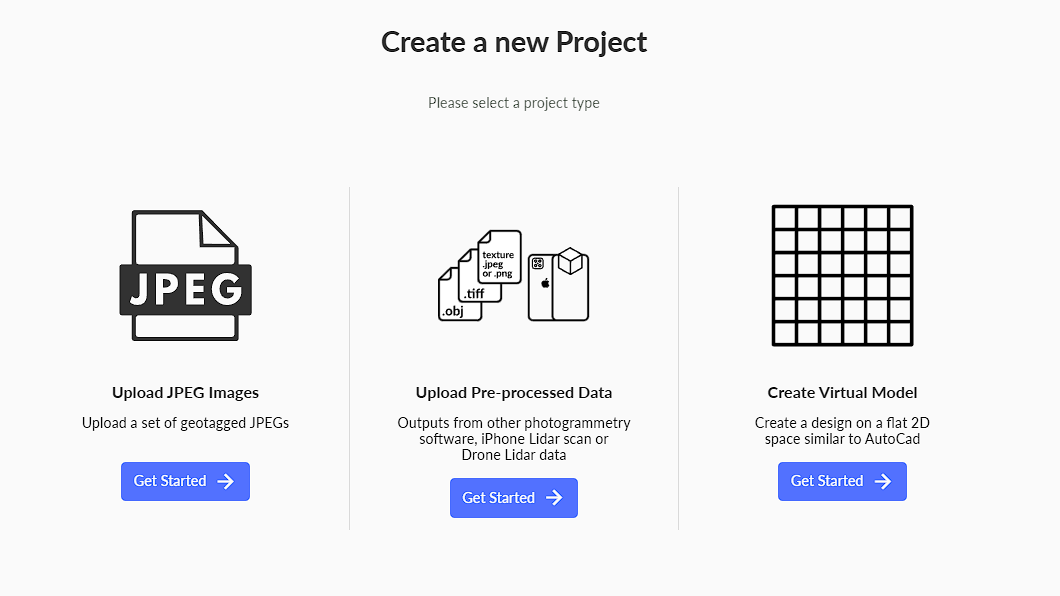

Click "Get Started" to begin the process

Step 2

​

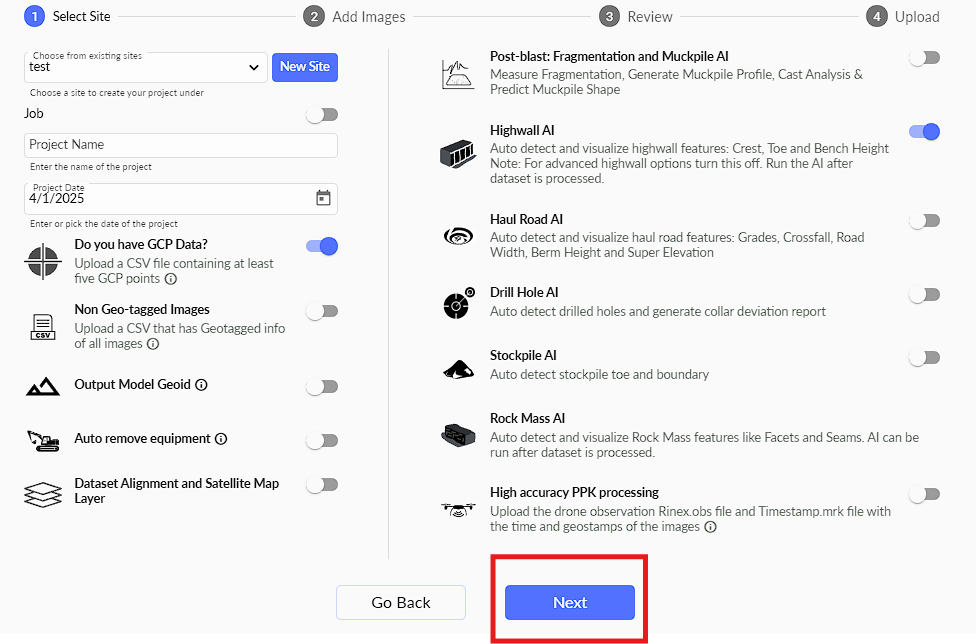

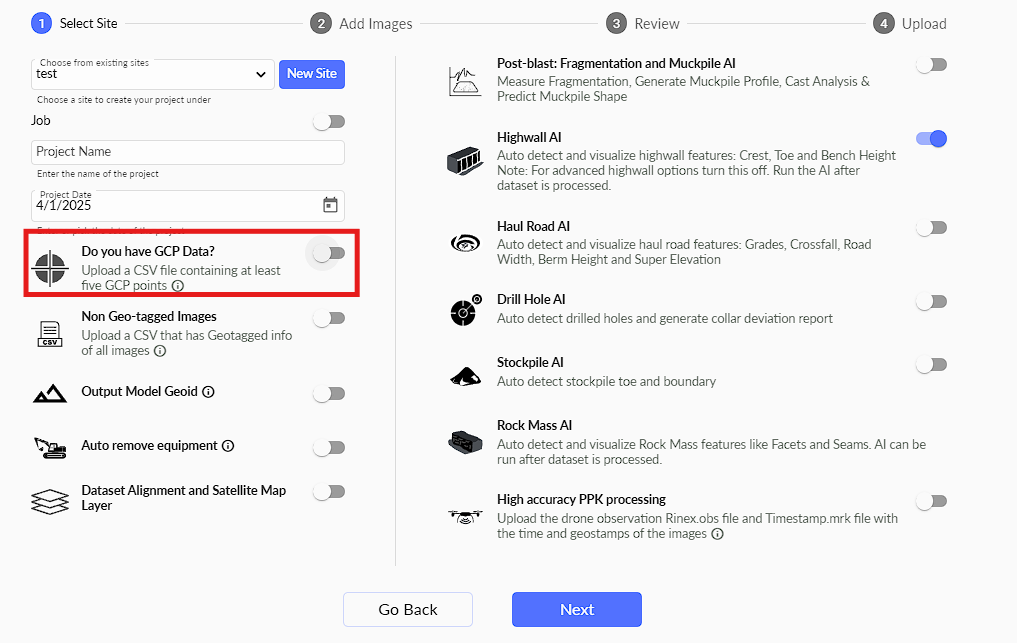

Enter the project information and toggle the "GCP Data" button.

Step 3

​

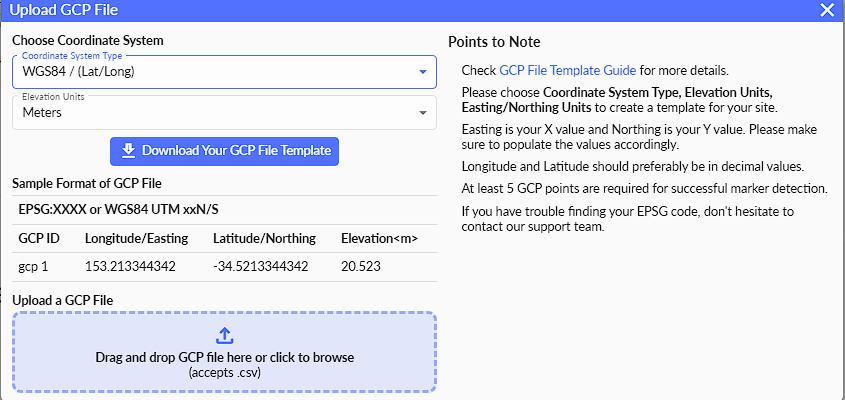

Download the template with selected information and then copy your GCP data to the template. Once the data is in the required format, upload the GCP data.

Step 4

​

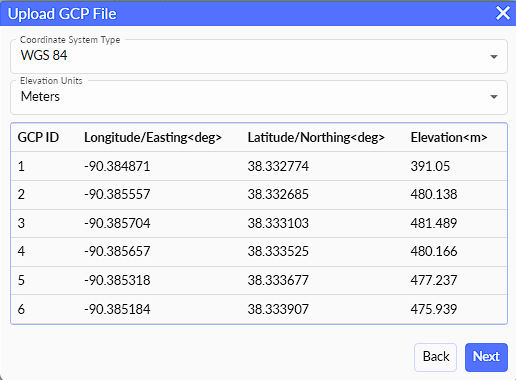

If GCP data is correct then click submit.

Step 5

​

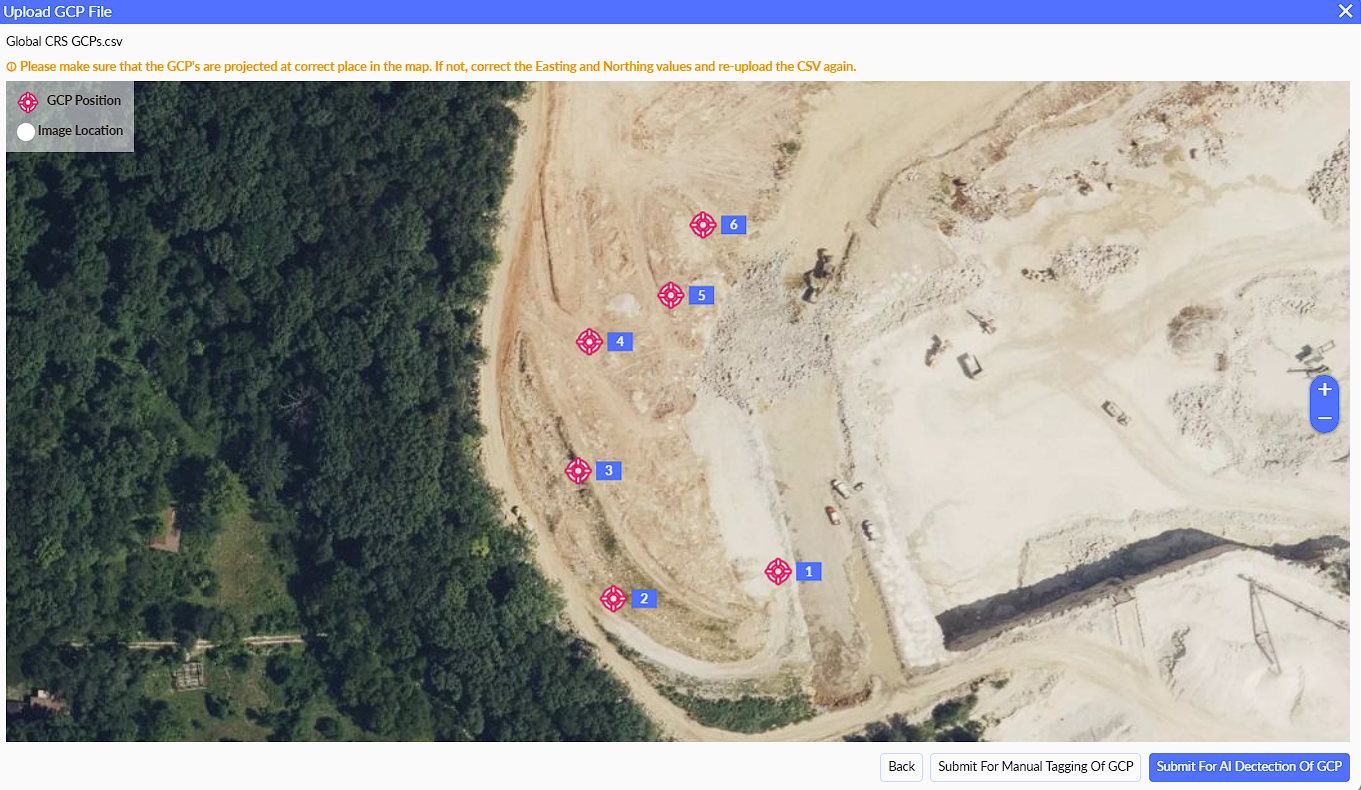

This screen shows the location of the GCP's overlaid onto satellite imagery. If the locations are correct, then click "Next".

Step 6

​

Click "Next" to continue on with the process.

Step 7

​

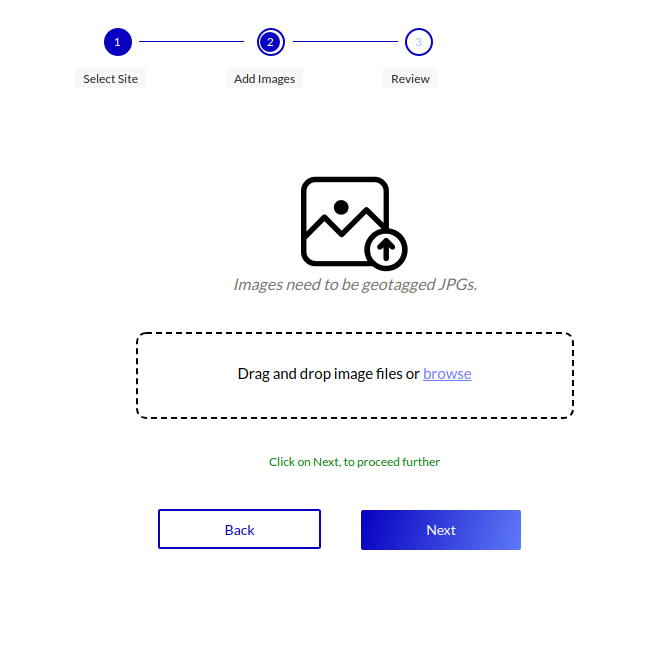

Upload the images and continue to the next screen.

Step 8

​

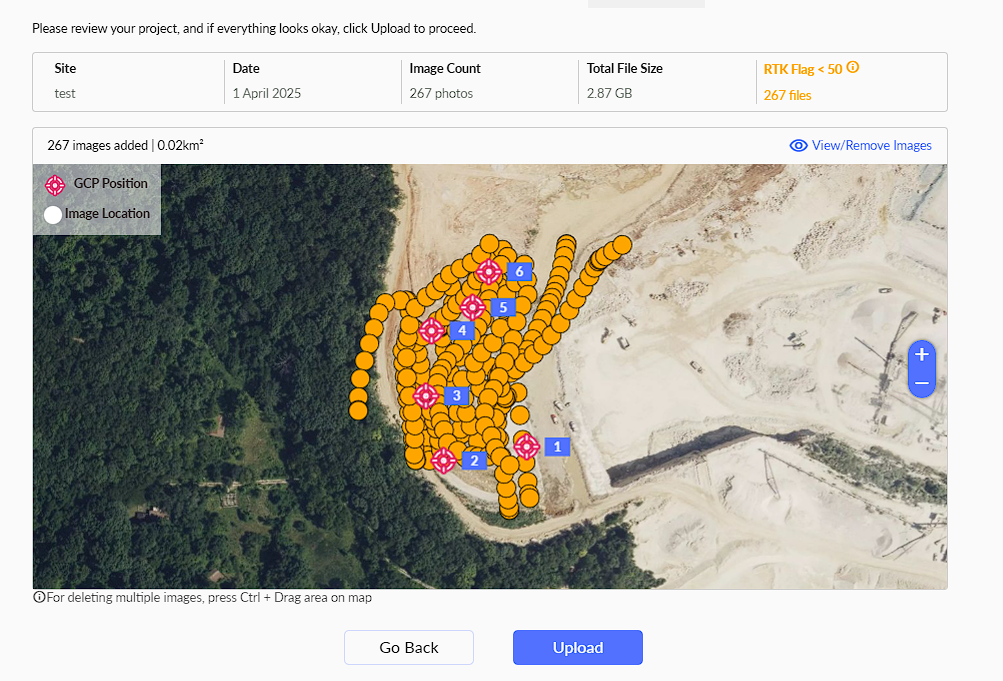

Verify the image and GCP locations and click next.

Step 9

​

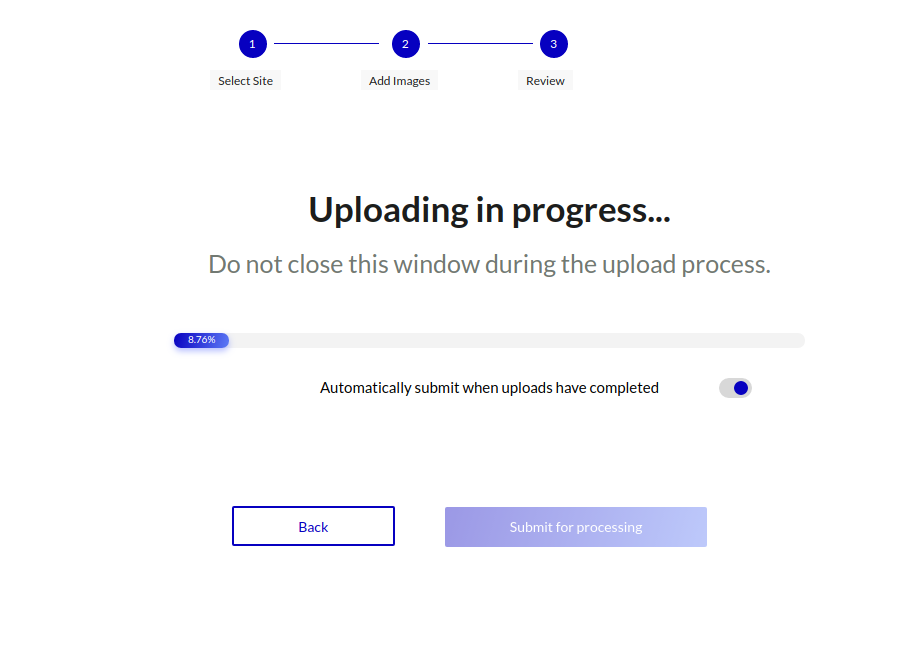

Begin the upload process of the images. Once uploaded, the project will show that it is ready for manual tagging, or that markers have been detected from AI.

​

Section 2: Rectifying Ground Control Points Manually

Step 1

​

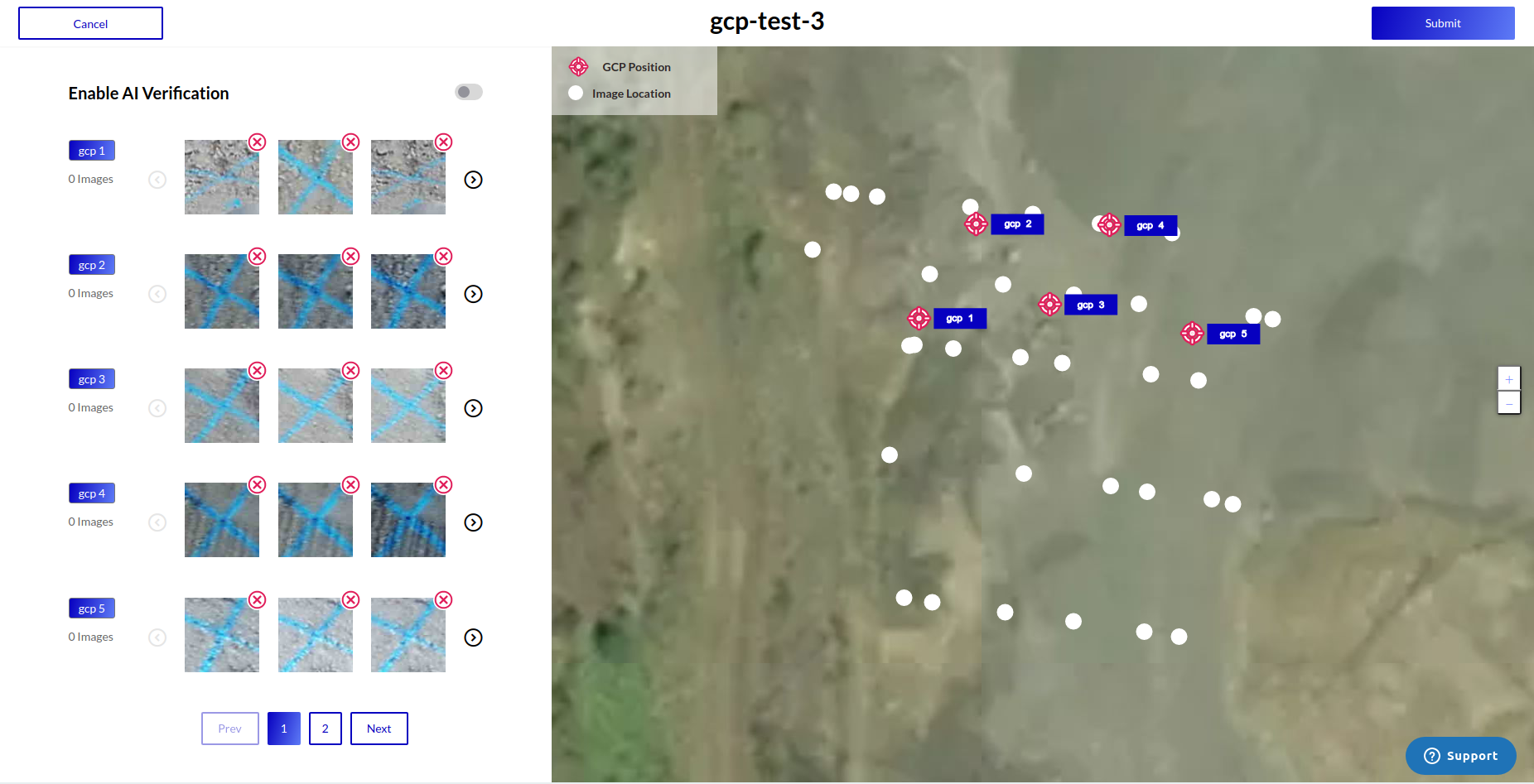

Navigate to this base screen by clicking on the project that needs to have GCP's rectified.

Step 2

​

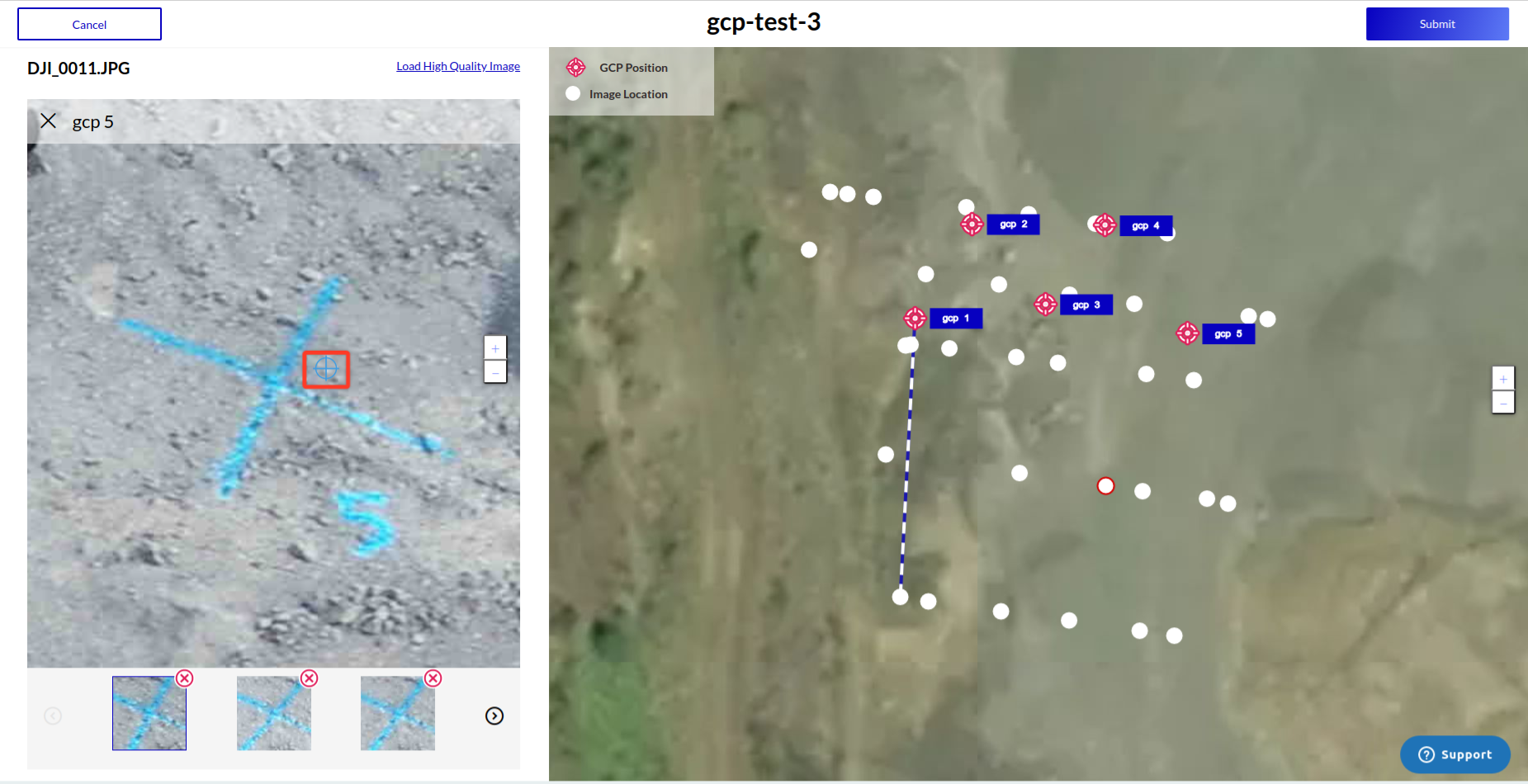

AI detects the center of the "X" but the user must verify the center is in the correct location.

​

Drag the cross-hair to the center of the cross in order to rectify the GCP and change the "X" to a check mark.

Step 3

​

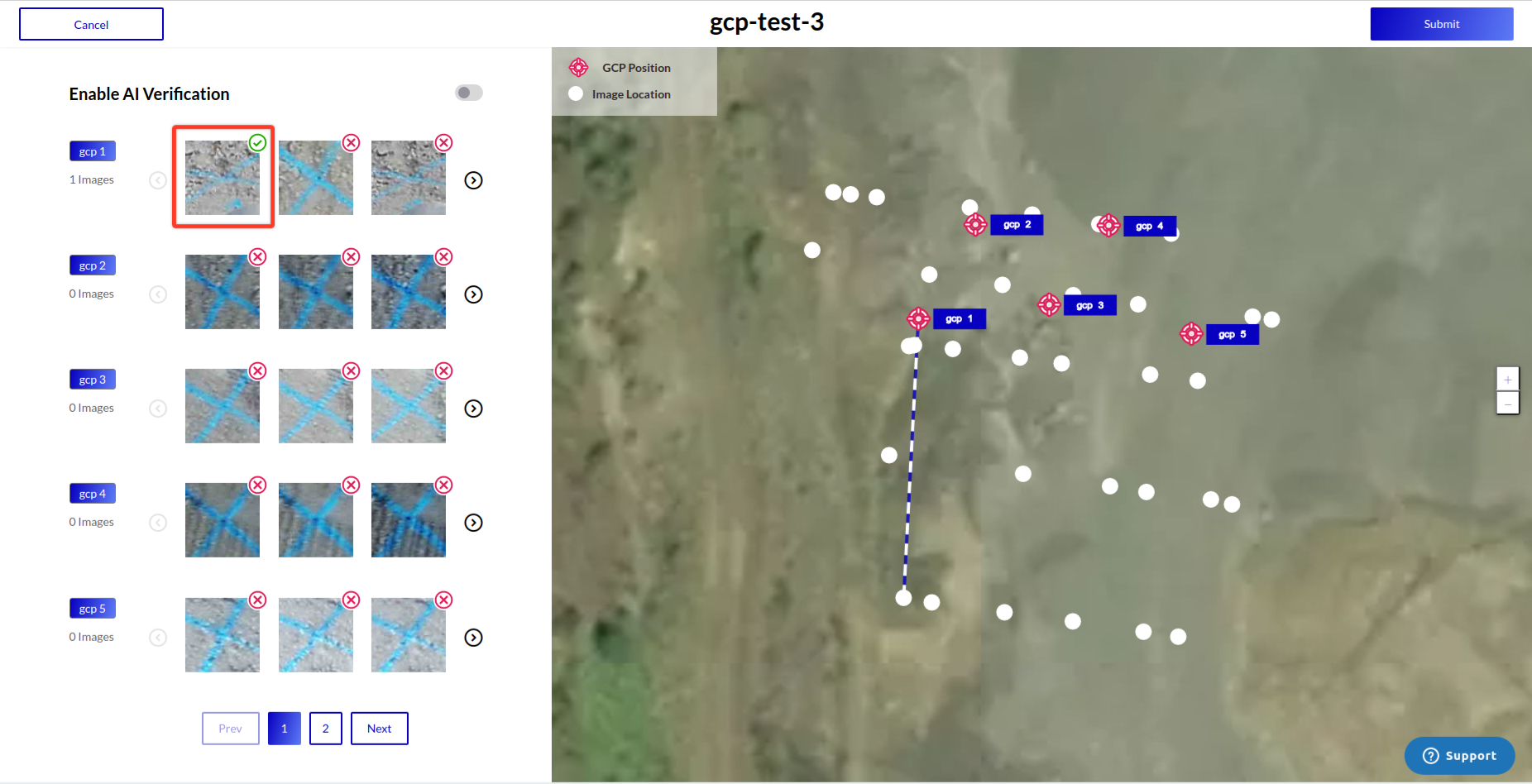

Once image is rectified, verify the image is being counted as a rectified GCP. Once 5 GCP's are rectified in at least 3 images, submit to start processing.

Section 3: Rectifying Ground Control Points with AI

Step 1

​

Enable AI Verification by clicking the toggle button.

Step 2

​

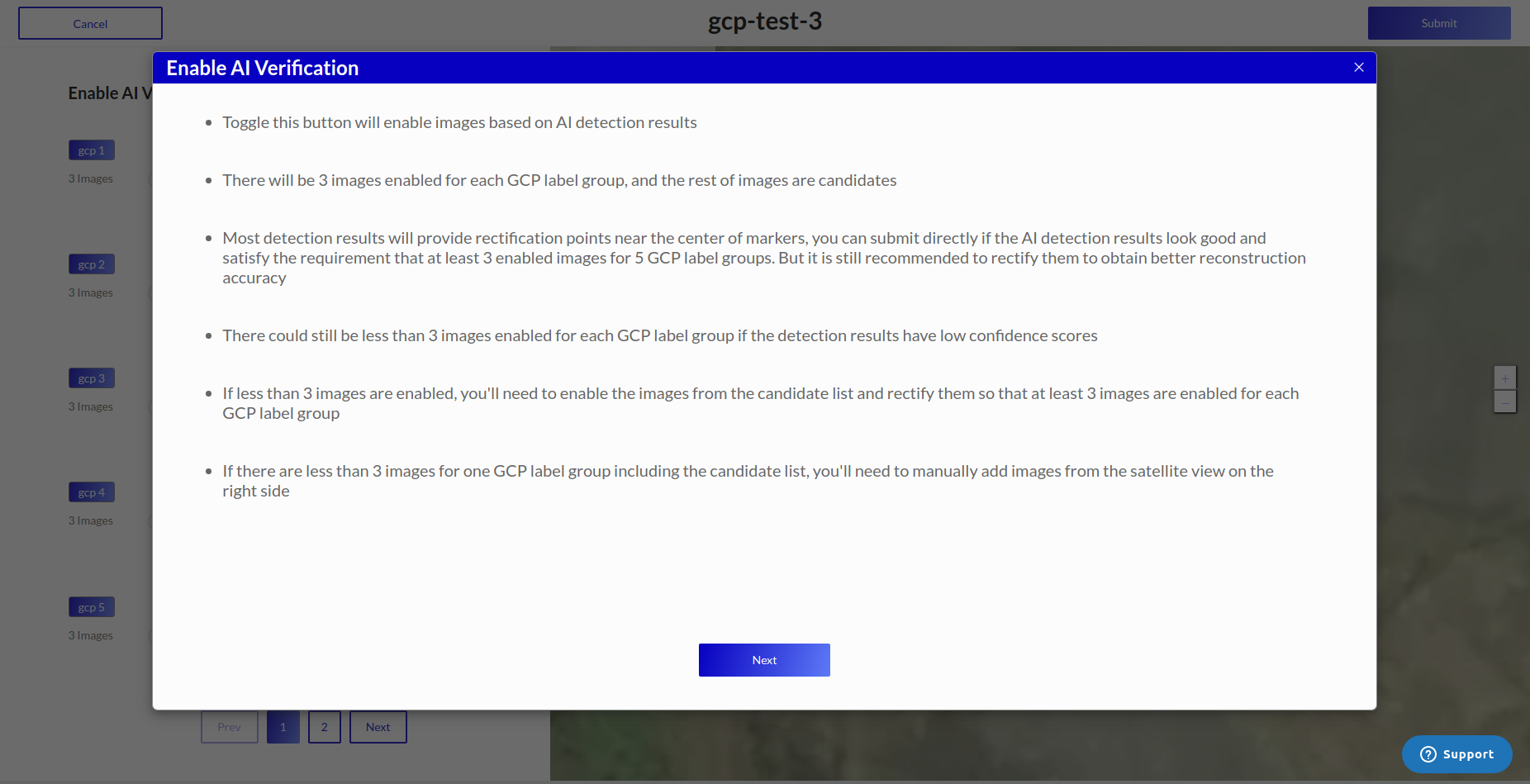

Click "Next" or "X" after reading and understanding what AI Verification does.

Step 3

​

AI Verification has been turned on and 3 images per GCP have been used to verify the GCP. Click "Submit" if you believe the AI Verification is correct.

Section 4: Additional Tools and Knowledge

Tool 1: Clicking Camera Point

​

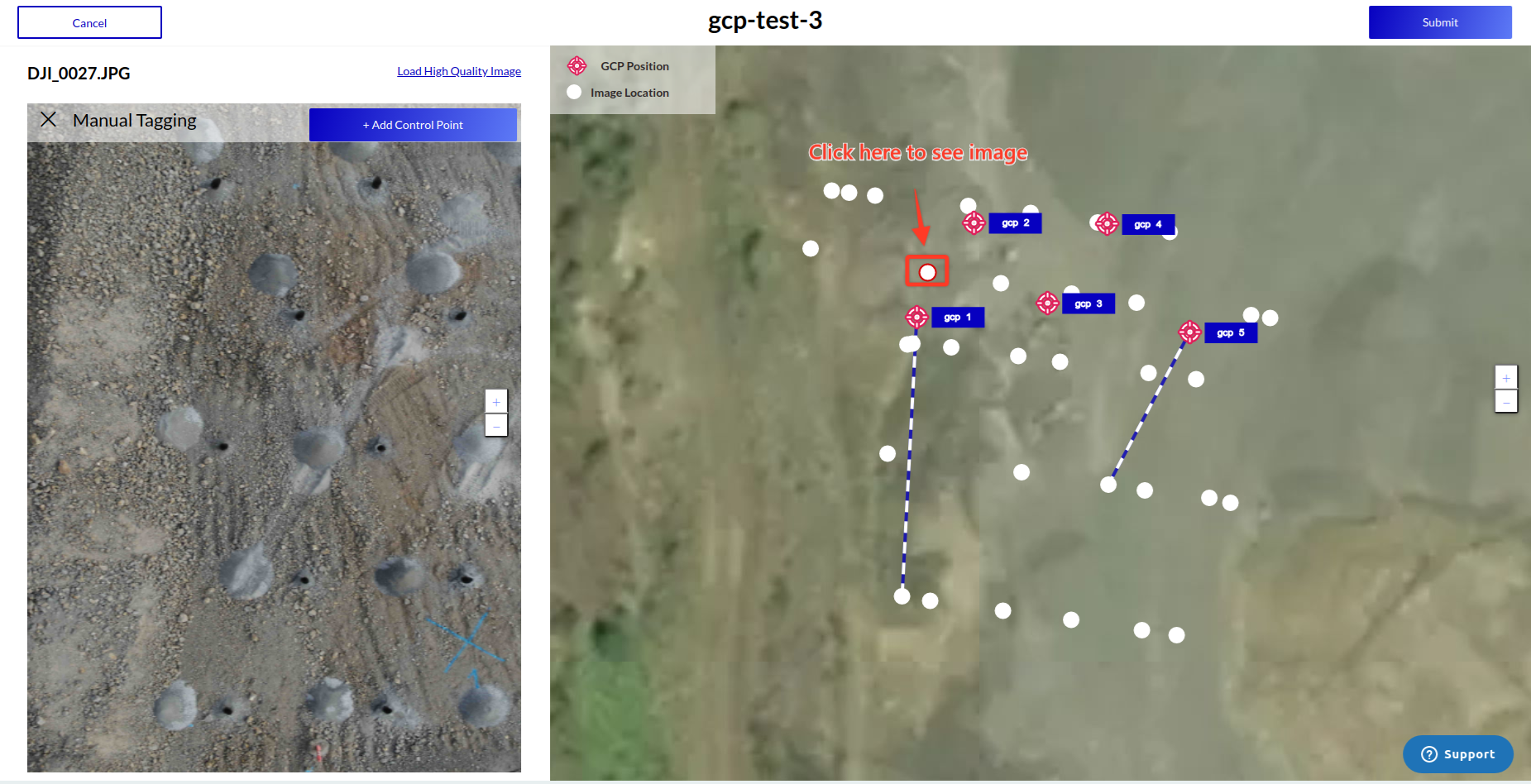

Clicking the camera point selects the image at that location.

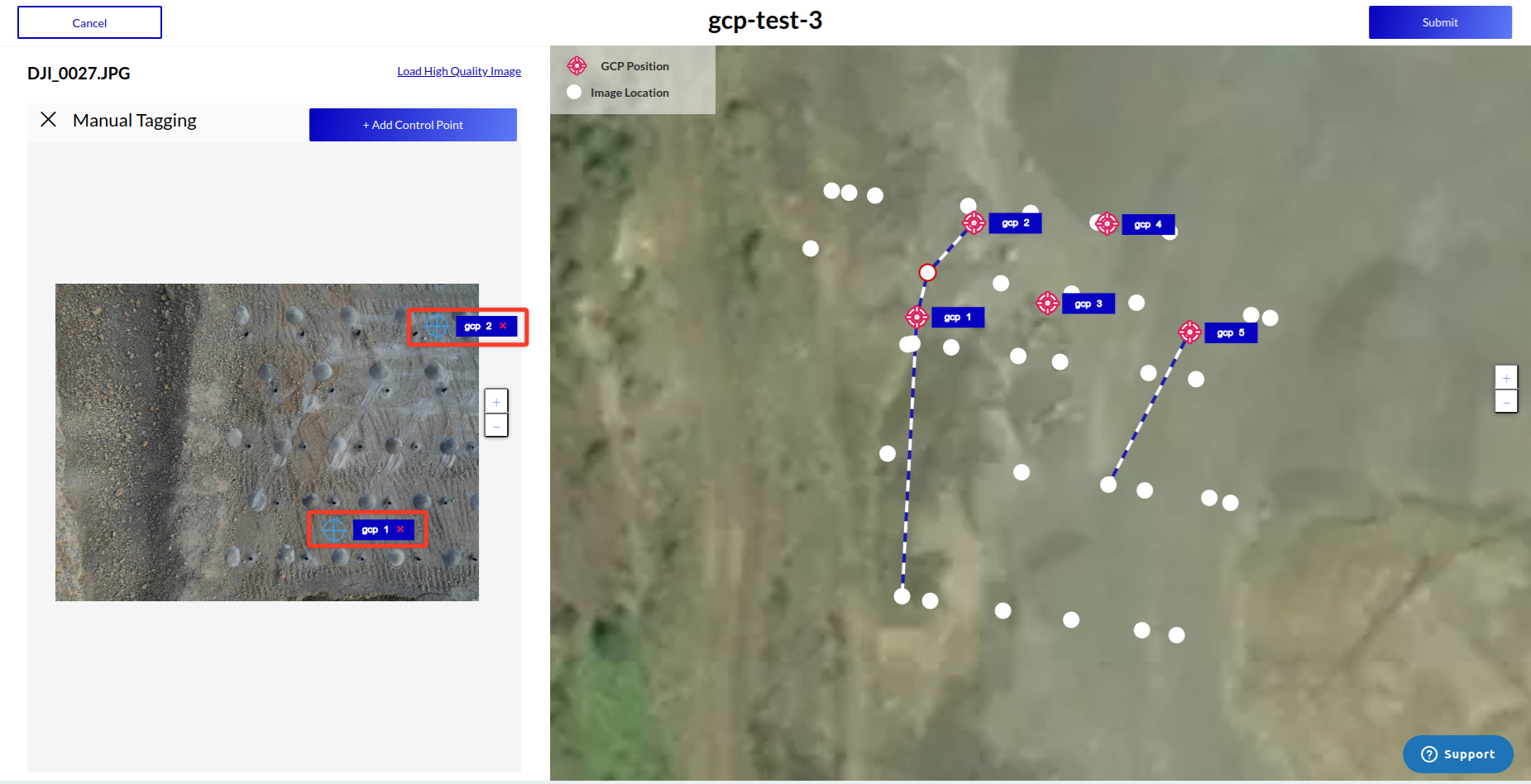

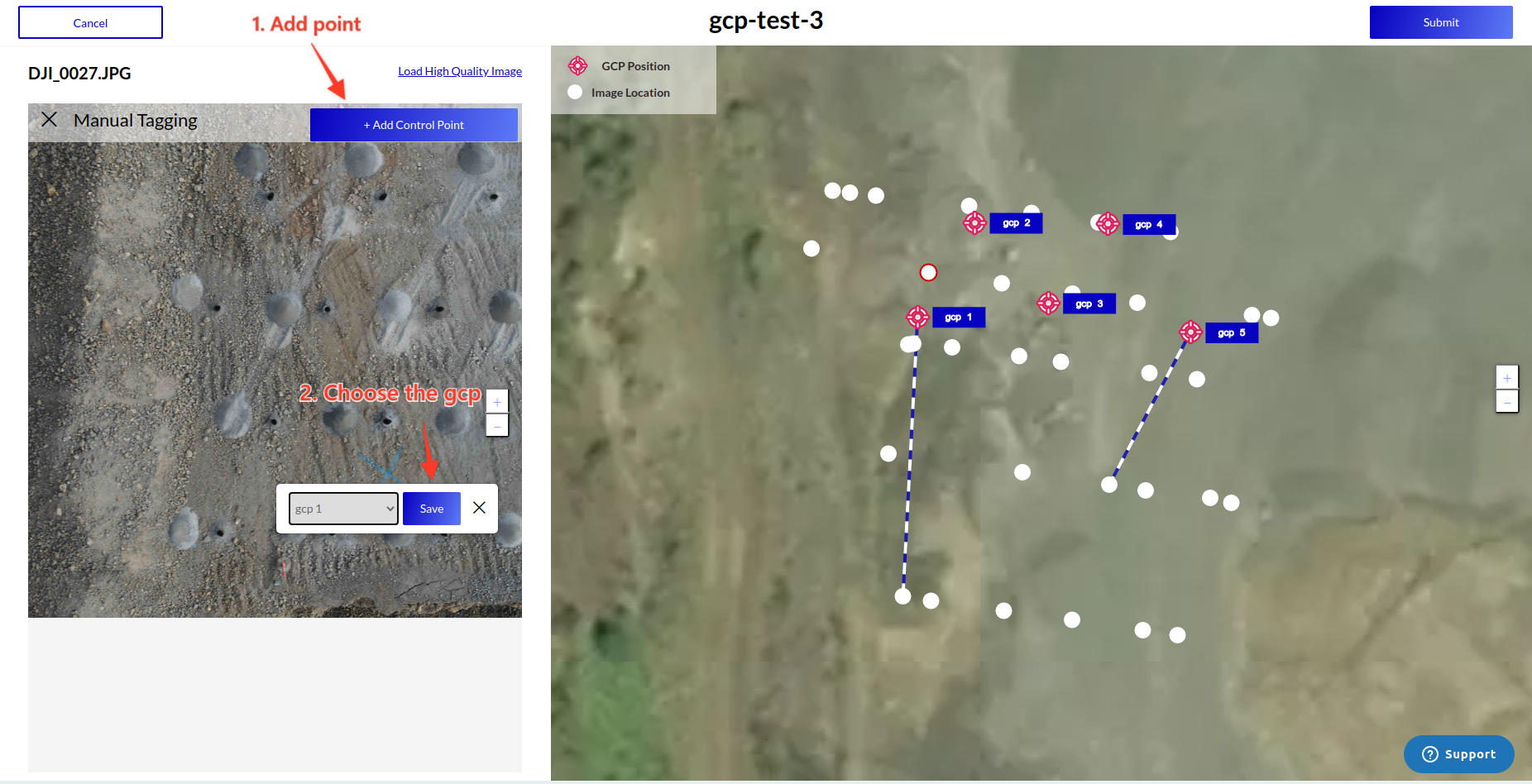

Tool 2: Manually Add Control Point

Once on an image, add a control point and the GCP it is referencing by following the steps shown above.

​

Multiple GCP's can be added for the same image.

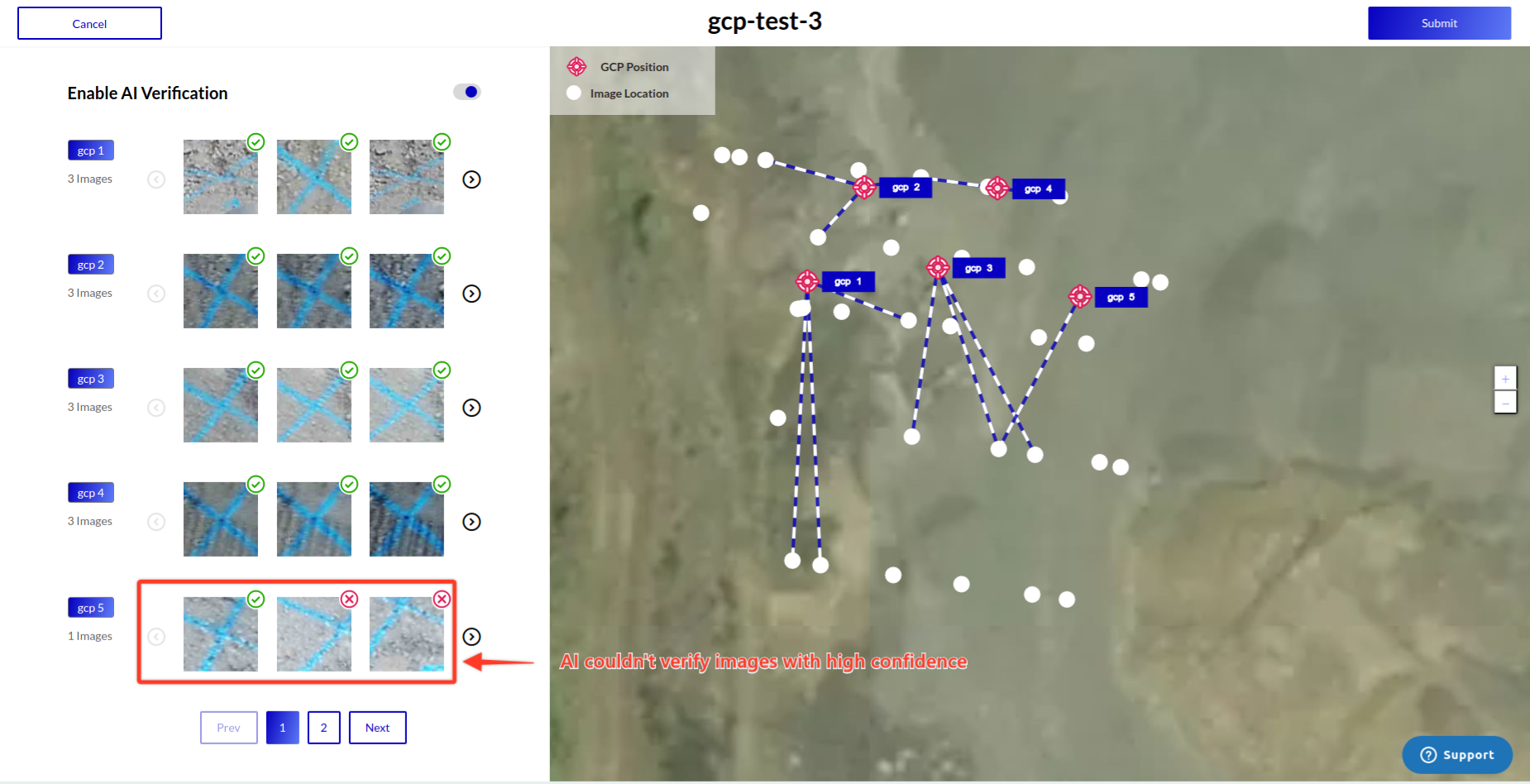

Knowledge 1: AI Confidence

​

If the AI cannot detect the center of the cross with high confidence, then it will not put a check mark on the image.

Knowledge 2: Can't Submit without 3 images

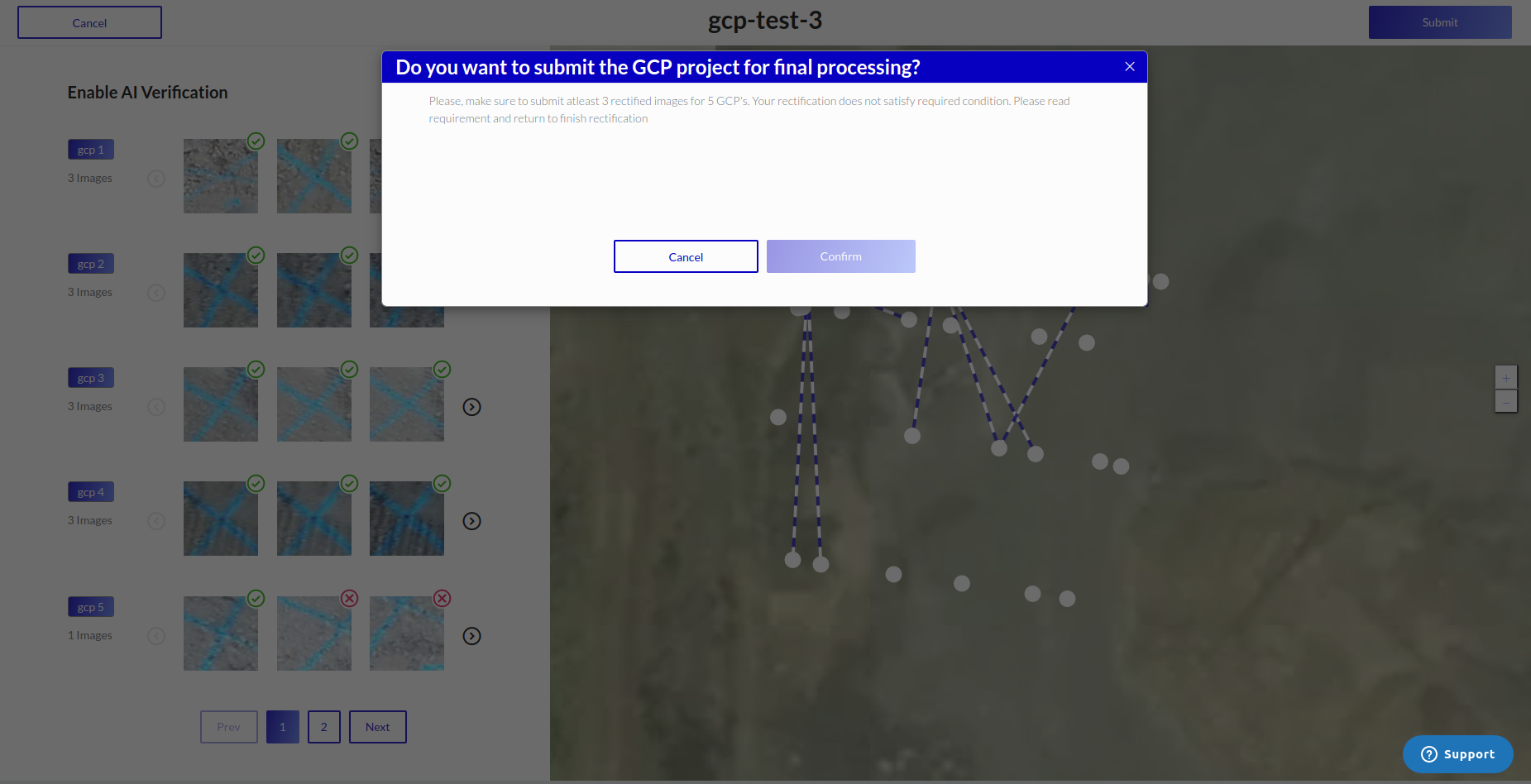

GCP's can't be submitted if each GCP does not have a minimum of 3 images verifying that GCP.

Knowledge 3: Navigate to Dashboard

​

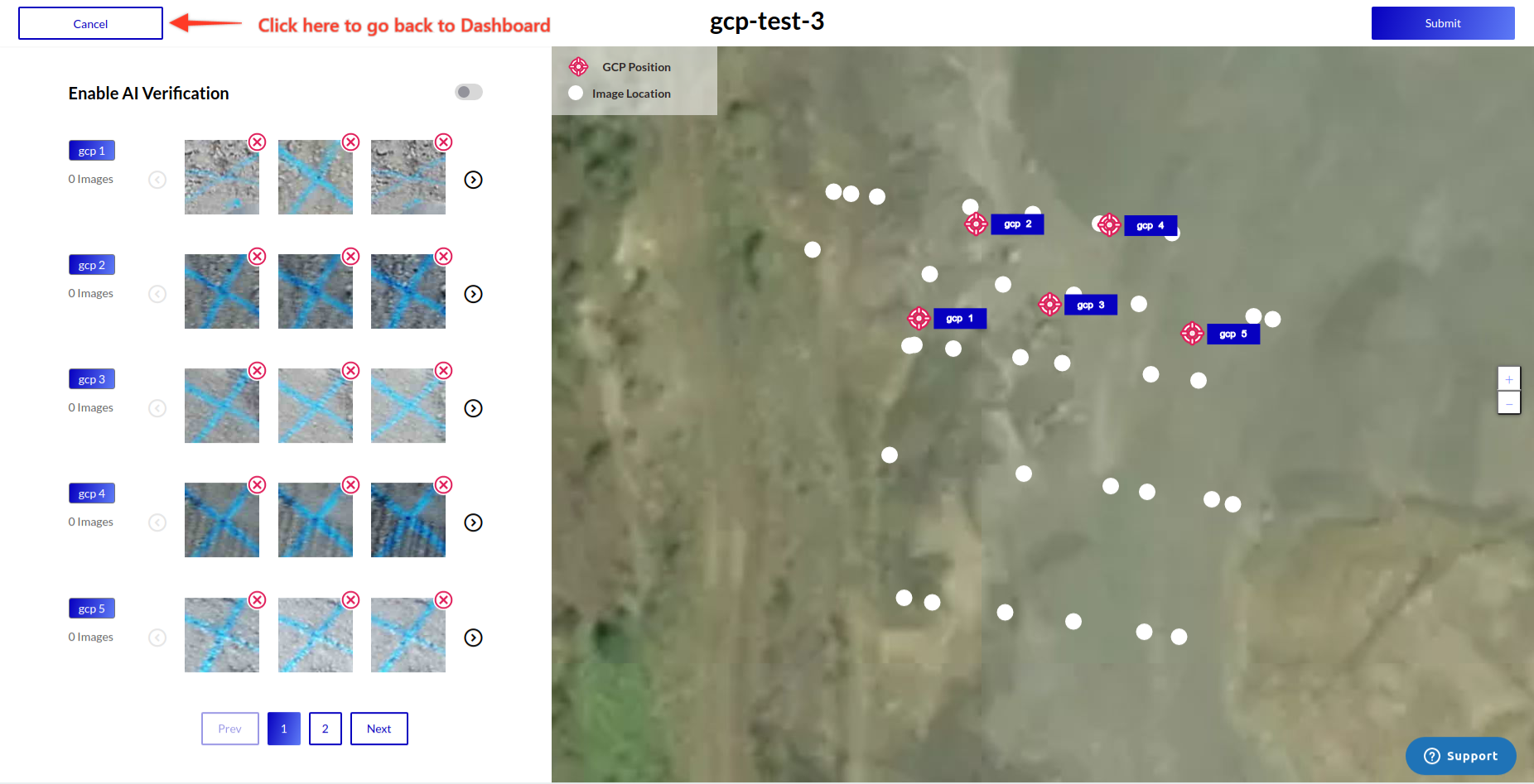

Click cancel in order to navigate back to the Dashboard.
