Measurement Offset Tool

Measurement Offset Tool

Strayos allows its users to offset measurements within projects by a specified distance entered by a user. To utilize this function, follow the steps below:

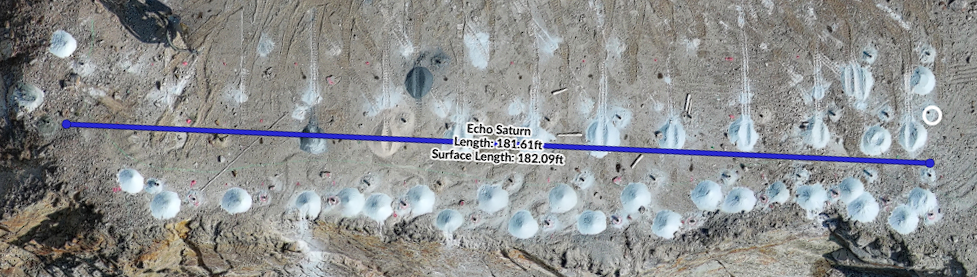

1.) After drawing a measurement on the model, right-click on the measurement to display the menu:

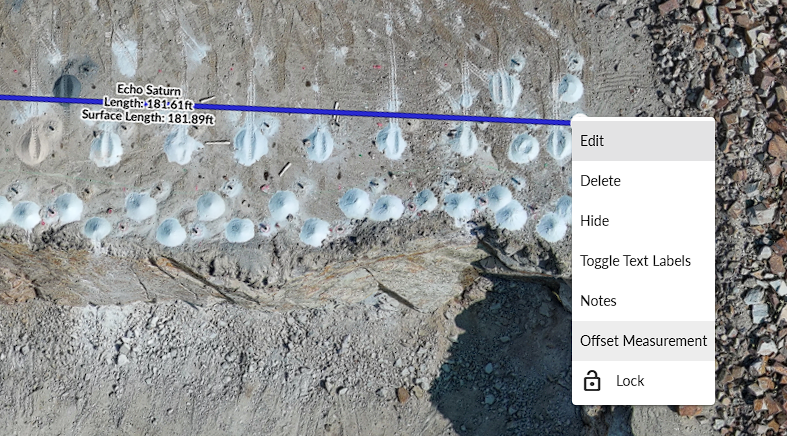

2. ) Select the "Offset Measurement" function:

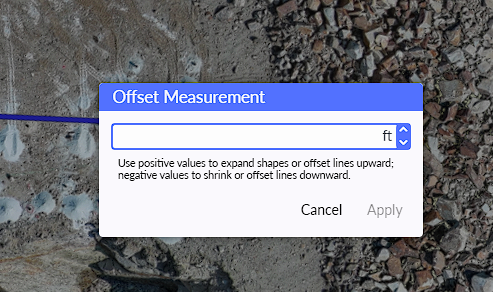

3.) Enter a specific distance in the field.  A positive value will move the measurement in one direction, while a negative value will move it in the opposite direction.
