Importing and Exporting Files with Trimble Business Center

Importing and Exporting Files with Trimble Business Center

When using Trimble Business Center (TBC) in parallel with Stayos, the file exchange process can be broken down through the "Import" and "Export" functions within TBC.

To Import:
After creating the project in TBC, select the import function in the upper left-hand corner:

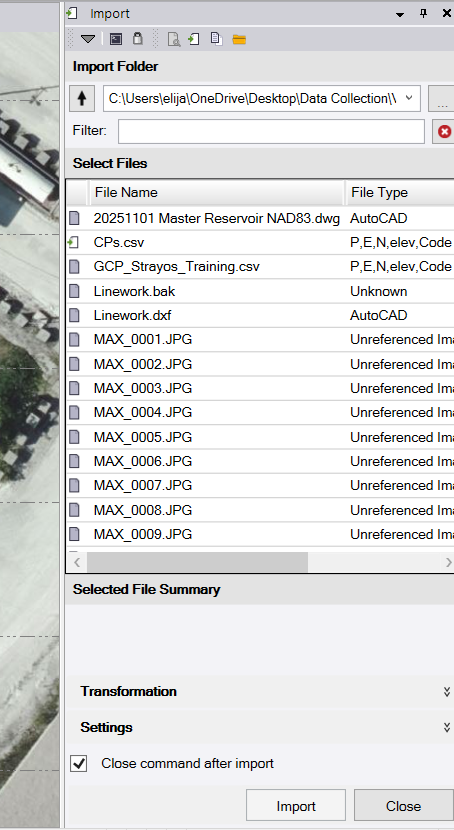

This will then display the import menu on the left-hand side of the project. Here, users can choose the file path where the files that are being imported are located:

Select the files that are to be imported, and select import. For CSV files, ensure the order of Point, Northing, Easting, and Elevation is correct, as well as your project CRS in TBC.

Users can also drag and drop their files right into the project within TBC. This works well for all files, especially JXLs for local site CRSs.

To Export:

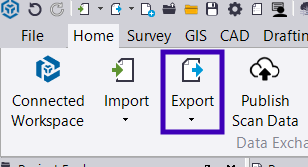

Within the project holding the data that needs to be exported, select the export function in the upper left-hand corner:

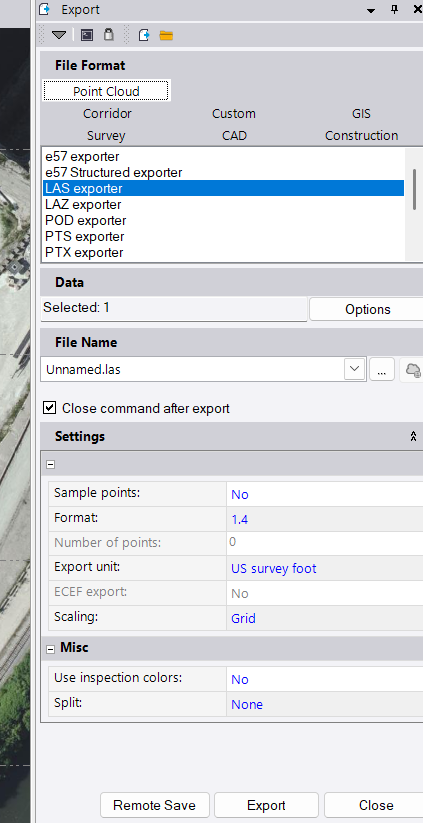

This will then display the export menu on the right-hand side of the project. Here, users can select the specific files that they wish to export.

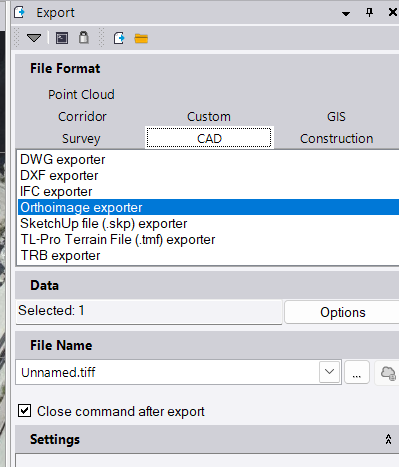

For CAD-specific files, select "CAD":
