How to use Slope heat map to inspect your site

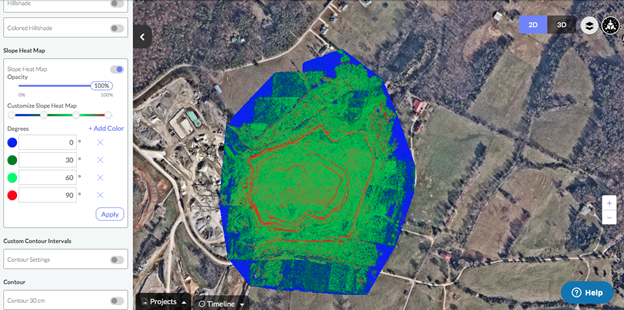

Slope Heat map feature provides quick and easy way spot check the steepest angles in your site for high wall safety and site planning.

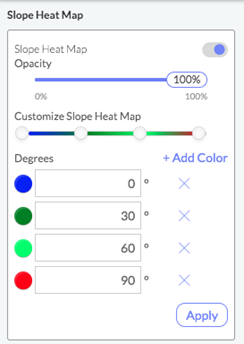

Slope Heat Map Model and the colorization are done based on the colors assigned for corresponding slope degrees. Degrees range from 0 to 90.
Customize the colors and degrees to set your desired range.
Customization options:
- Add one more configuration by clicking on + Add Color
- Delete existing configurations by clicking the close button.
- Change the colors and the corresponding degrees as well

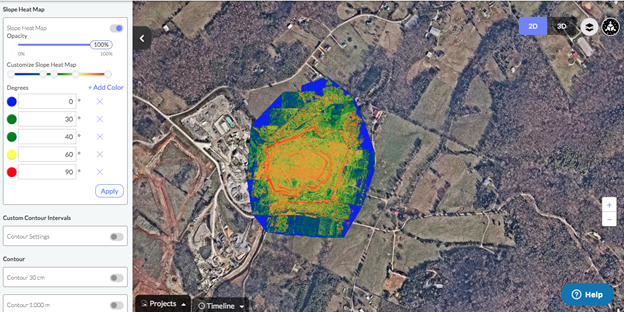

When you update colors or degrees, the changes will automatically get updated in the visualization slider and reflect on the map as well.
