How to Upload Pre-processed Data

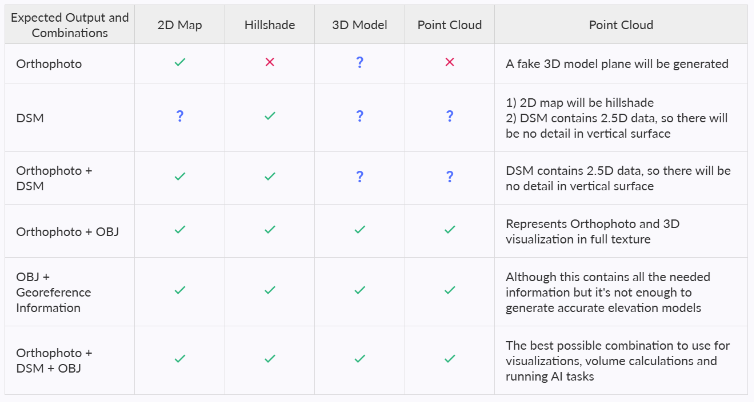

Possible Combinations of Preprocessed data:

• To create a 3D model, you will need a digital elevation model (DEM - DSM or DTM) and an orthophoto GeoTIFF file.

• The DEM and Orthophoto must be attached to a Coordinate Reference System (CRS) and in the same CRS as the site you are uploading to.

AI Features are available in the pre processed dataset after the data is processed.

STEP 1

Choose Upload Pre-Processed Data

STEP 2

Select the  option Upload Preprocessed data or Upload Lidar LAS File



STEP 3

Choose Site and Title Project

STEP 4

Upload the appropriate file types. For 3D surfaces, upload applicable DSM and DTM.



STEP 5 : Review and Submit
