How to Export Measurements as KML, SHP, DXF, CSV, and GeoJSON files

The steps below show how to export measurements as different file types from Strayos.

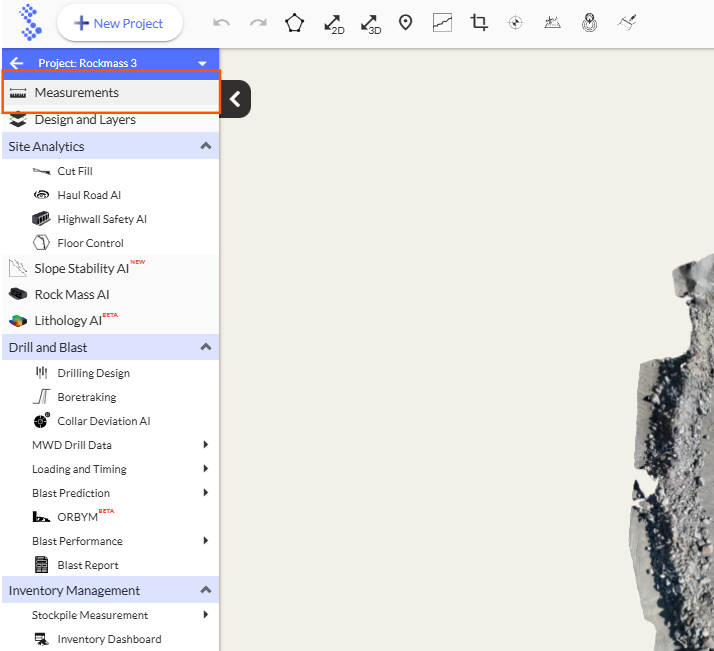

First, navigate to the measurements within the Strayos Project:

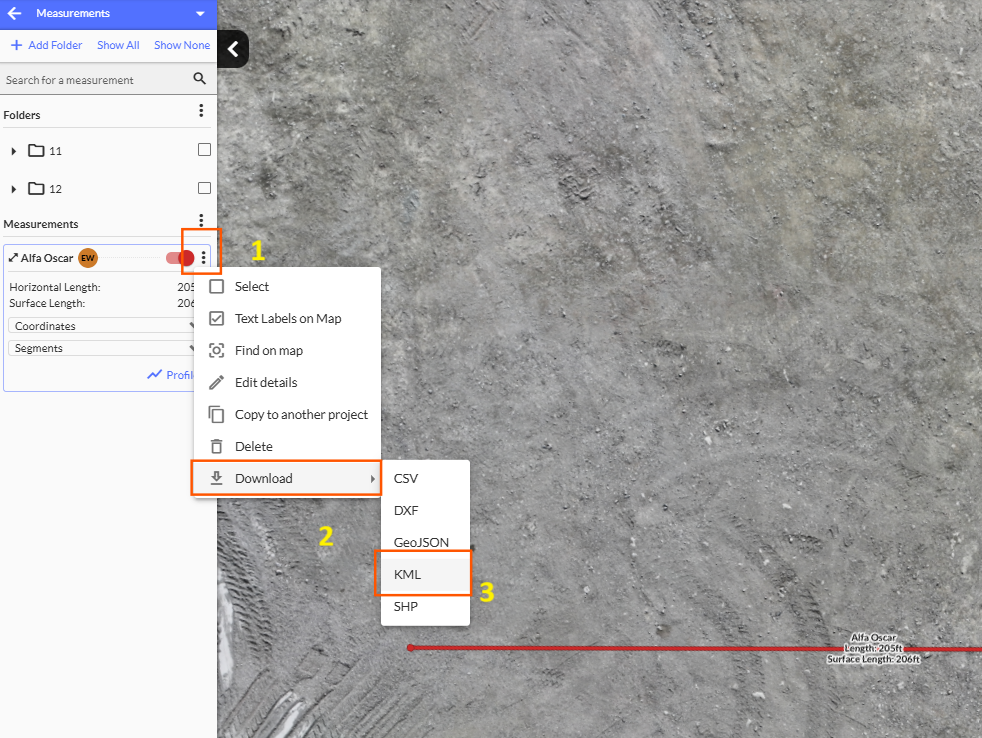

1.) Select the options for the measurement where the KML is needed

2.) Navigate to "download"

3.) Select KML as an option.

The files will then download to your device.
