Drill Design to and from CSV Files

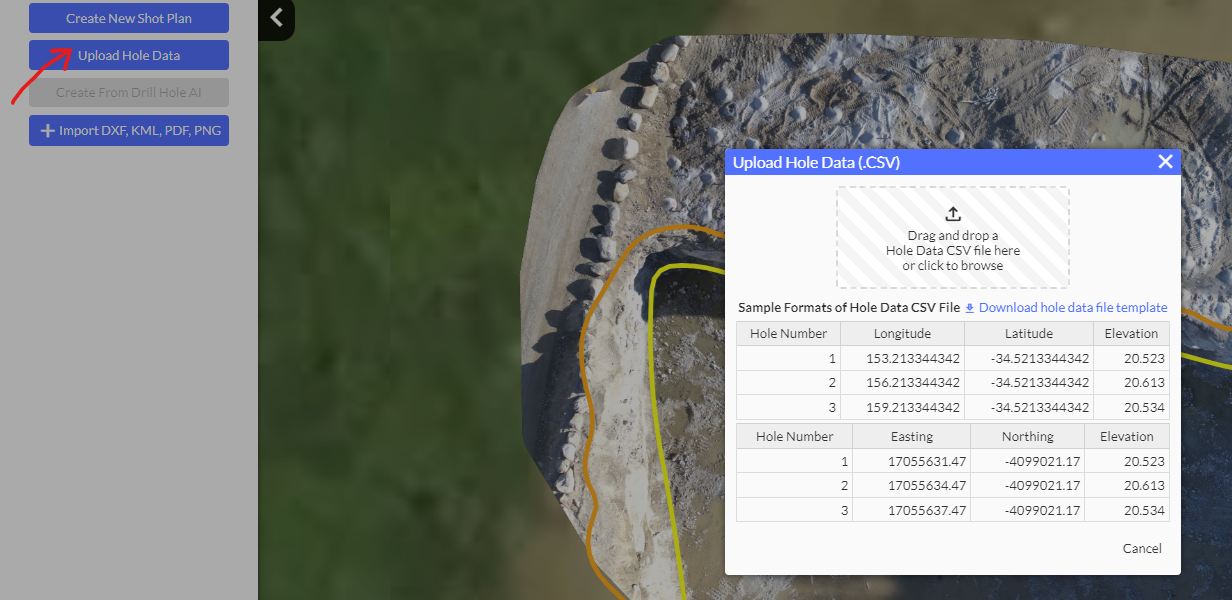

Within the Strayos platform, CSV files can be imported for shot layout and design purposes. To begin, when creating a drill design, users can select the Upload Hole Data option to click and drag a CSV file into:
The format of the CSV can be seen above, as there is also an available template for download to bring data into.

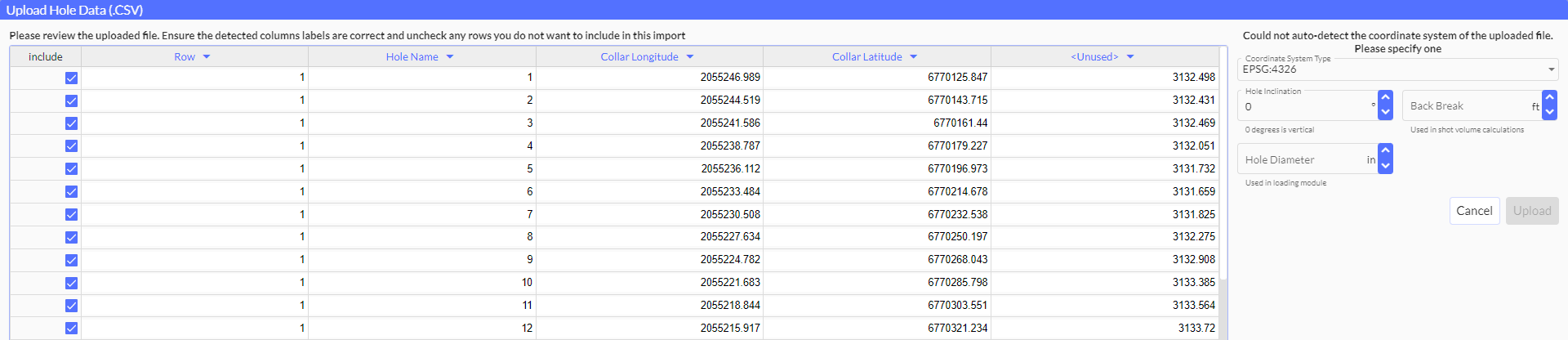

The CSV data can then be manipulated to the correct format and titles to be read into Strayos correctly. This includes entering the Hole Diameter as well as any sub drill and the appropriate floor elevation.

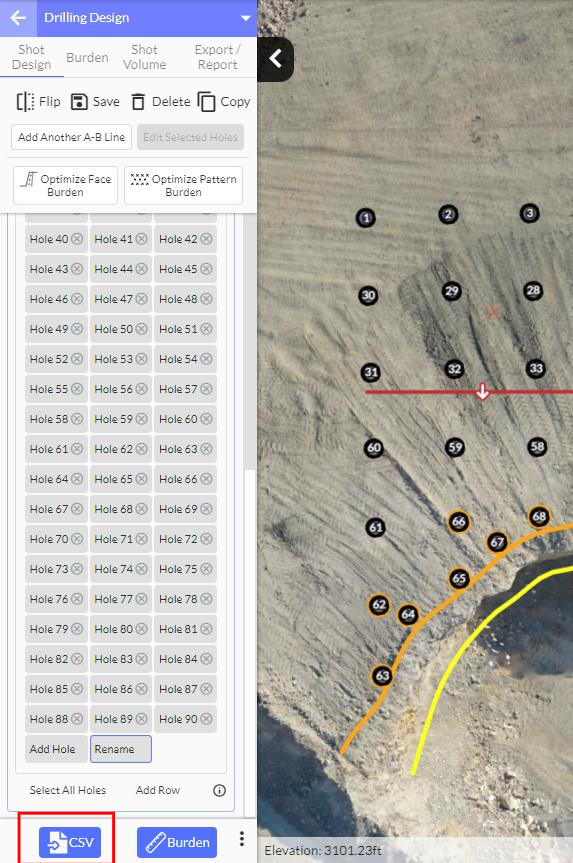

Once the pattern has been imported, additional CSVs can be brought in as well by selecting the CSV option in the bottom left-hand corner:

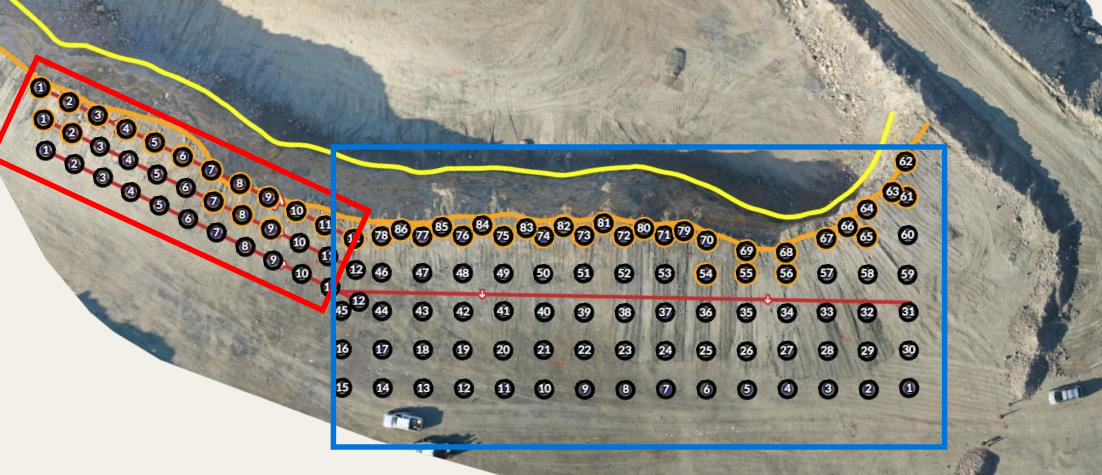

With this option, users can also import CSV files into existing shot plans within Strayos. In the image below, the 3 rows of rows highlighted in Red is an existing design, whereas the CSV data that was brought into the shot, in addition, is highlighted in Blue:

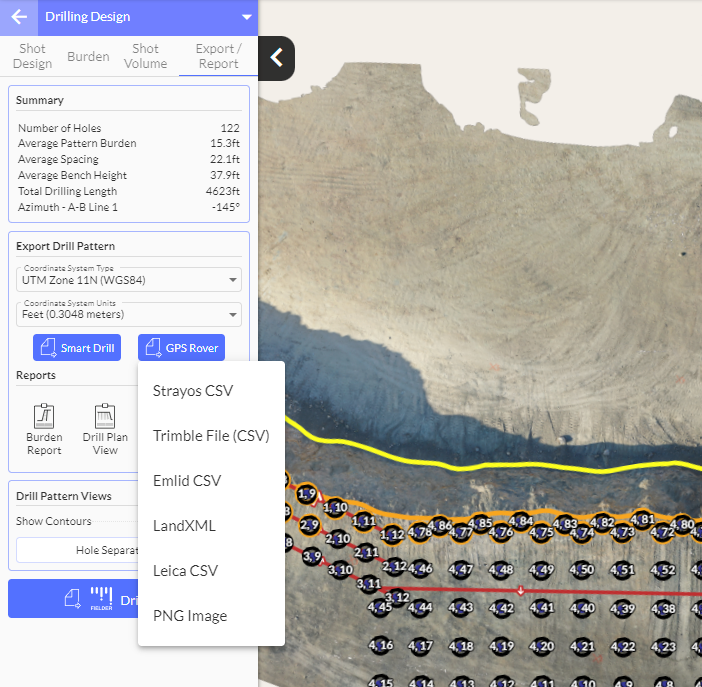

Once the drill design is complete, there are several CSV export options suitable for a variety of GPS equipment and Smartdrill Formats:
