Blast Report - FAQ

Blast Report - FAQ

How can I change explosive amounts, caps and booster quantities on report?

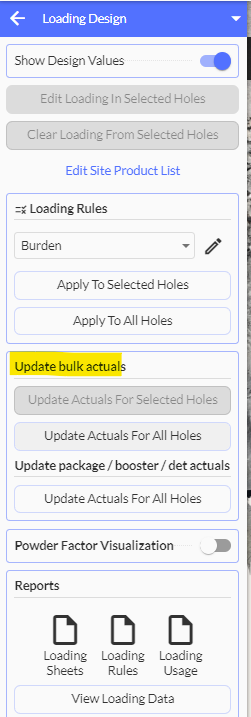

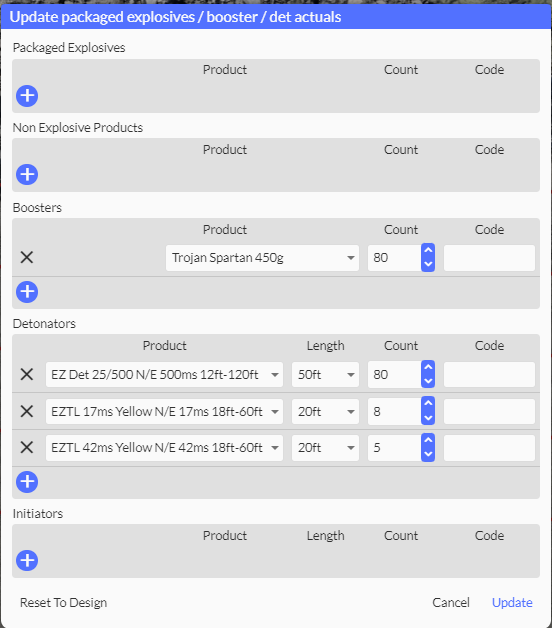

Any loading product information can be updated after the blast through the loading module under "Update actuals" for both bulk explosive products and caps/boosters/detonators. Date codes can also be entered here as well to appear on the blast report.




How can I add Non - Explosive products to my blast report?

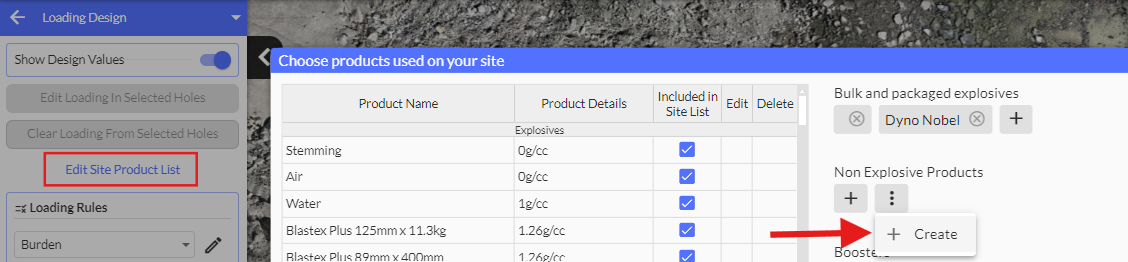

Non - Explosive products can be added through the Site Product List when loading a blast or under the site details. These products will save for the site, so they can then be selected in the "Update Product Actuals" (seen above) to be included on the report.




How can I add products to the Strayos system?

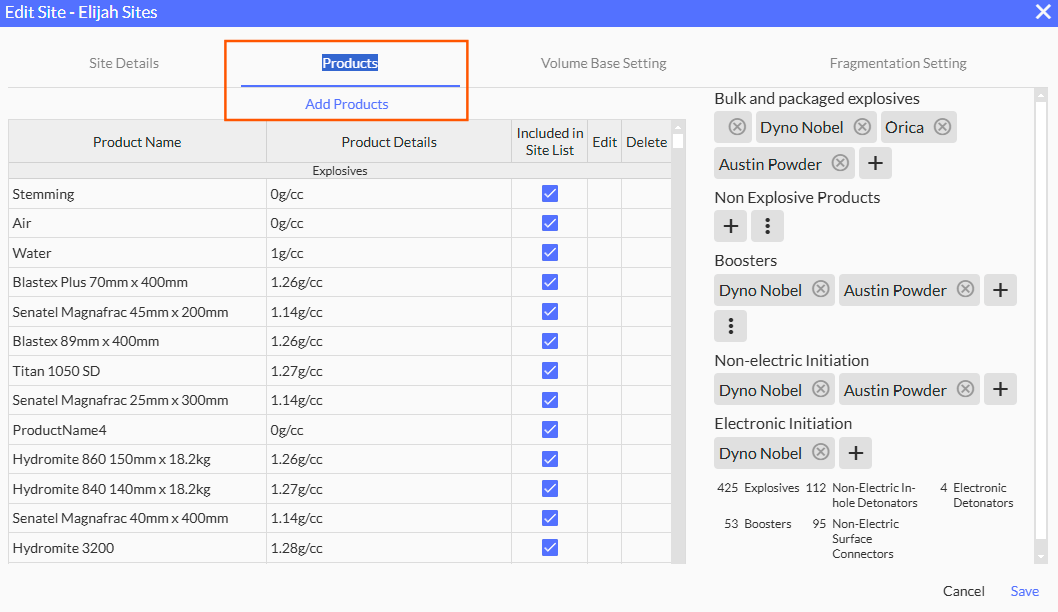

If explosive products need to be added to the platform, please select "Add Products" under the "edit site products" list. from there, users can add their appropriate products to be approved by the Strayos team.




How can I add Seismographs and Monitoring Locations to my Blast Report?

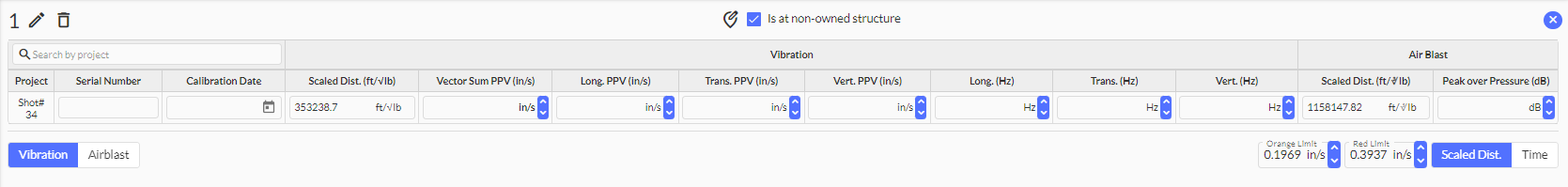

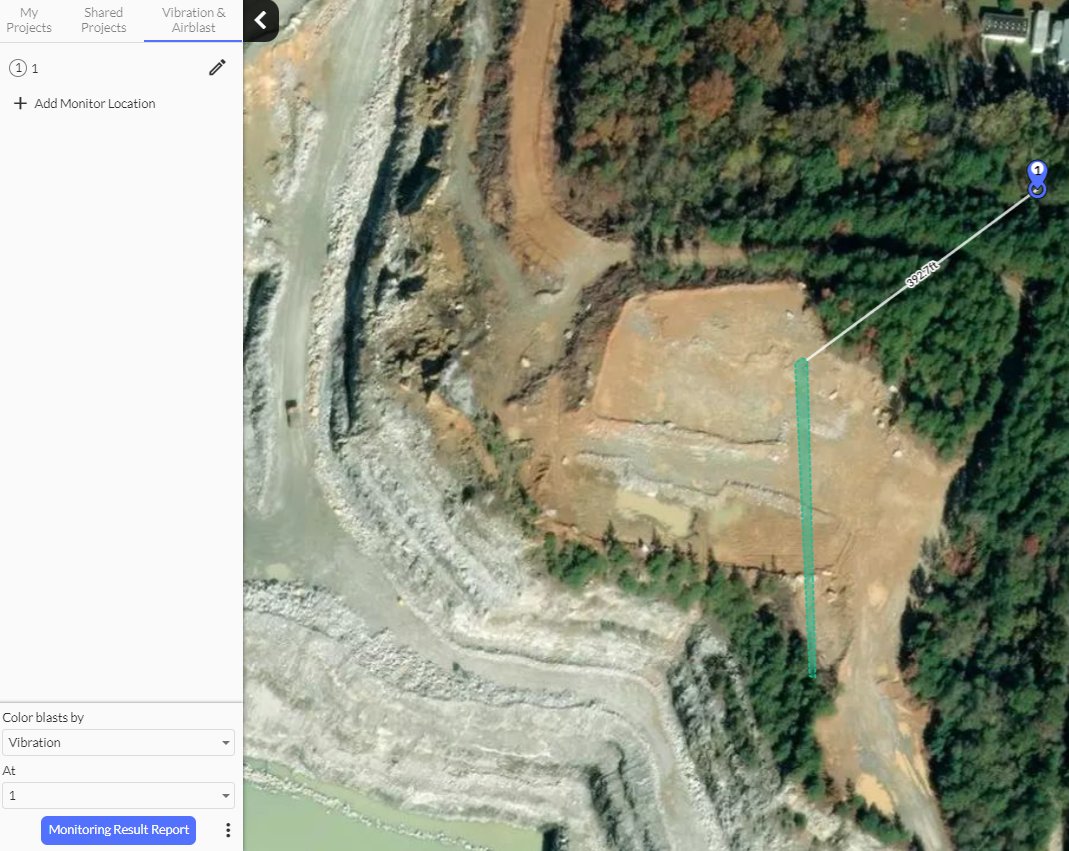

Seismographs can be added under the Vibration and Airblast Module. Once added, data will need to be manually entered for post blast readings, which will then appear on the blast report. When adding a seismograph, there is an option to select "Is at Non - Owned Structure". This option will list the closest non - owned structure on the cover page of the blast report. In the report options, there is a toggle which will list additional non - owned structures if needed.






How can I regenerate fields in the blast report than have been removed?

Any fields that have been deleted in the blast report can be restored by the restore button on the bottom left hand menu of the blast report. When selected, users can see any report fields that were deleted and restore them to the blast report.
