Inventory management module

The accurate measurement of physical inventories often determines the success of an aggregates or mining company. Strayos Inventory management solution offers robust inventory workflow, dashboard, and data management practices to ensure material reserves are accurately and frequently tracked.

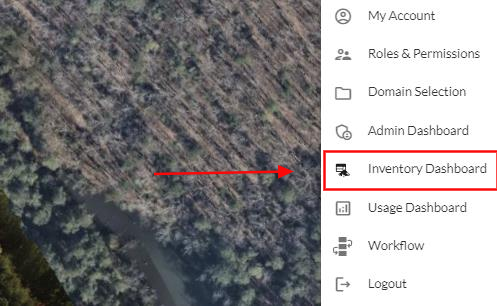

To accurately track the density and tonnage of your stockpile you will need to first add the Material type. Click on the Inventory Dashboard on the dropdown.

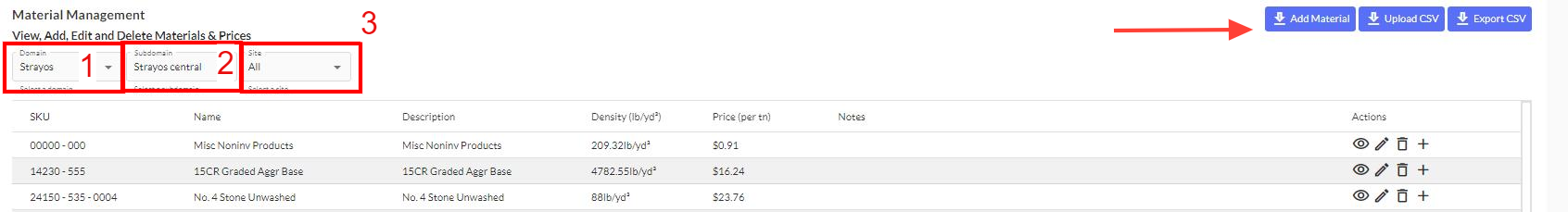

Select your domain and subdomain to add the material type. Once you add the material type you can use that product in any of your stockpile. You can also upload CSV for bulk material upload.

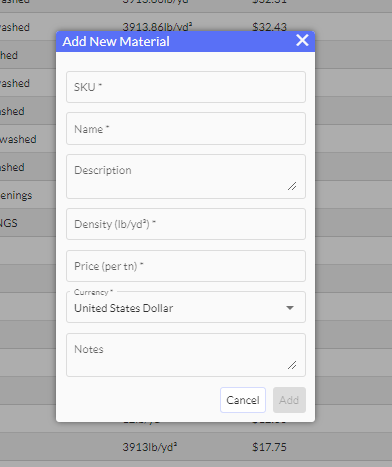

Add material type form

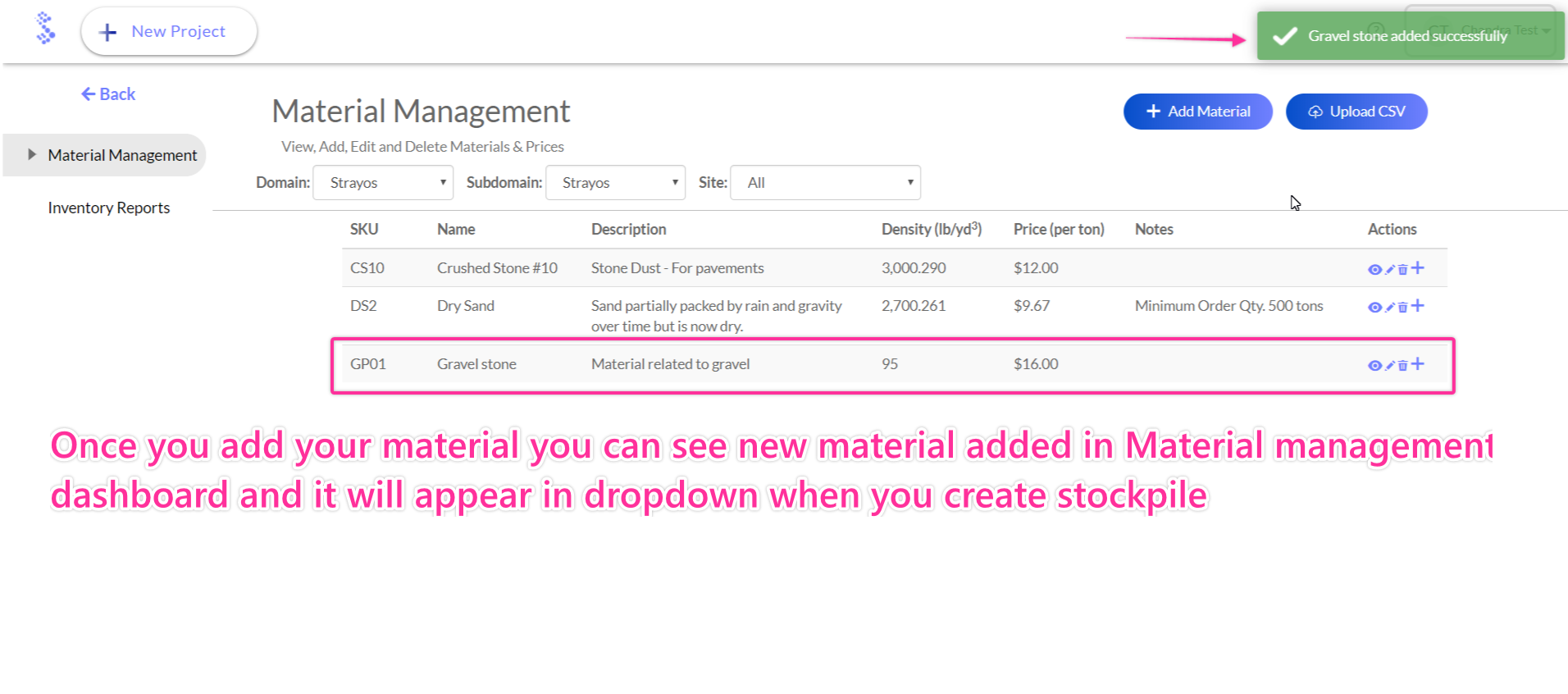

Once the material is successfully added, it will appear in the Material Management dashboard.

Creating Stockpile Inventory

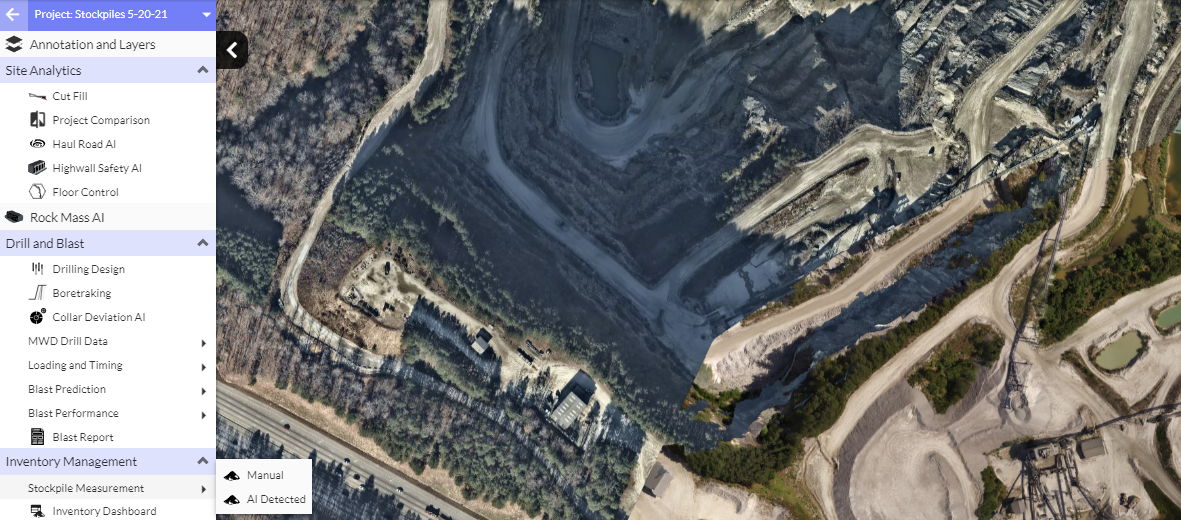

Navigate to the Inventory Management Module, where the user can select the AI detection on the manual creation of the Stockpile. When selecting the Ai option, the AI-detected stockpiles will appear on the model (highlighted). Selecting the manual option will allow use to manually draw the pile boundary.

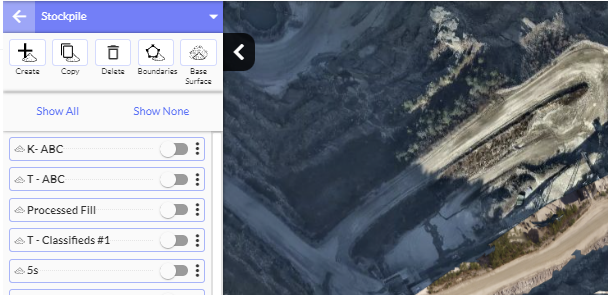

At the top of the sidebar menu, the user can either "Create" pile boundary, "Copy" existing pile boundaries, "Delete" piles, import "Boundaries" or "Base Surface".

To create a pile, the user will have to annotate the boundary around the pile they wish to measure.

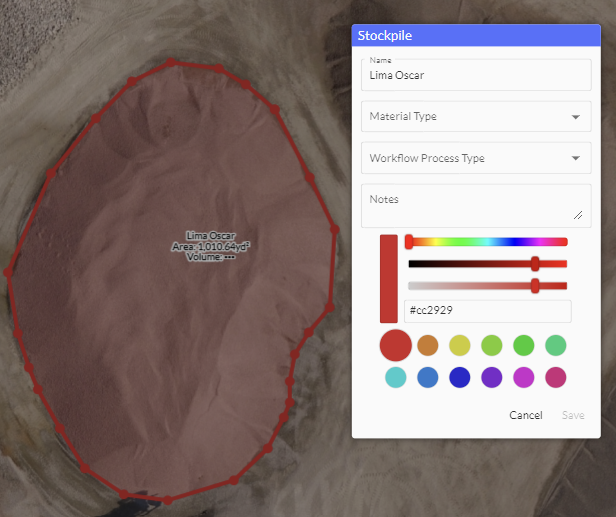

Then, users can enter the material type that has been added to the site, Workflow process type, as well as customize the name and color of the annotation.

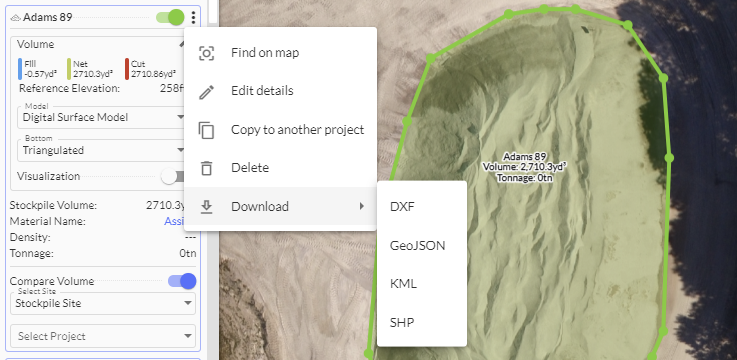

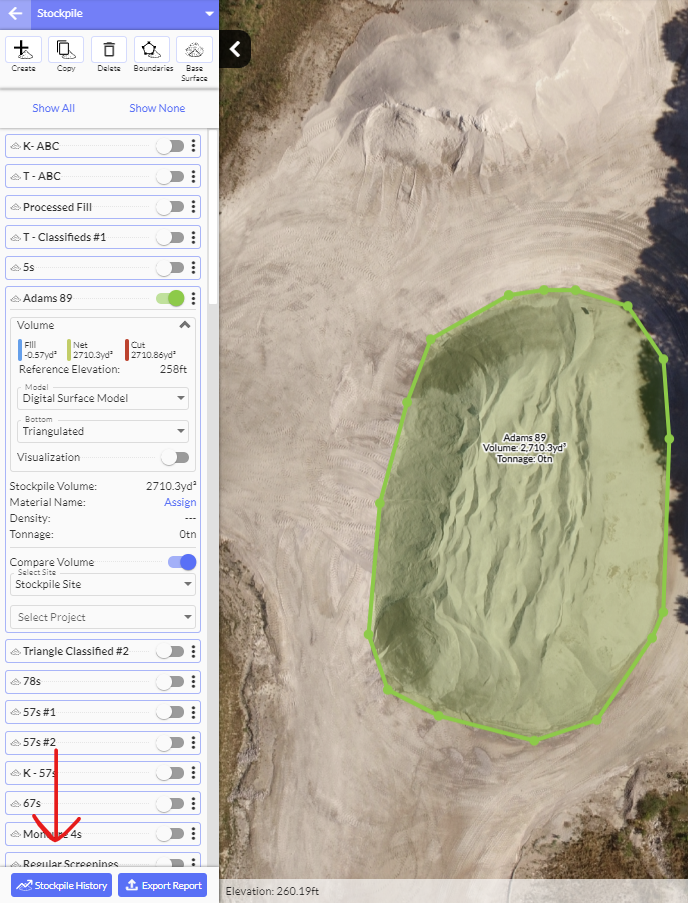

When the pile is added, it will be seen on the side bar menu with the following options:

This is where users can edit the model to reference the DSM or DTM, Adjust the bottom elevation, visualize the pile in 3D, or compare the pile volume directly to another project. The expanded options appear when selecting the three buttons (options menu) on the right where additional functions and downloads are available.

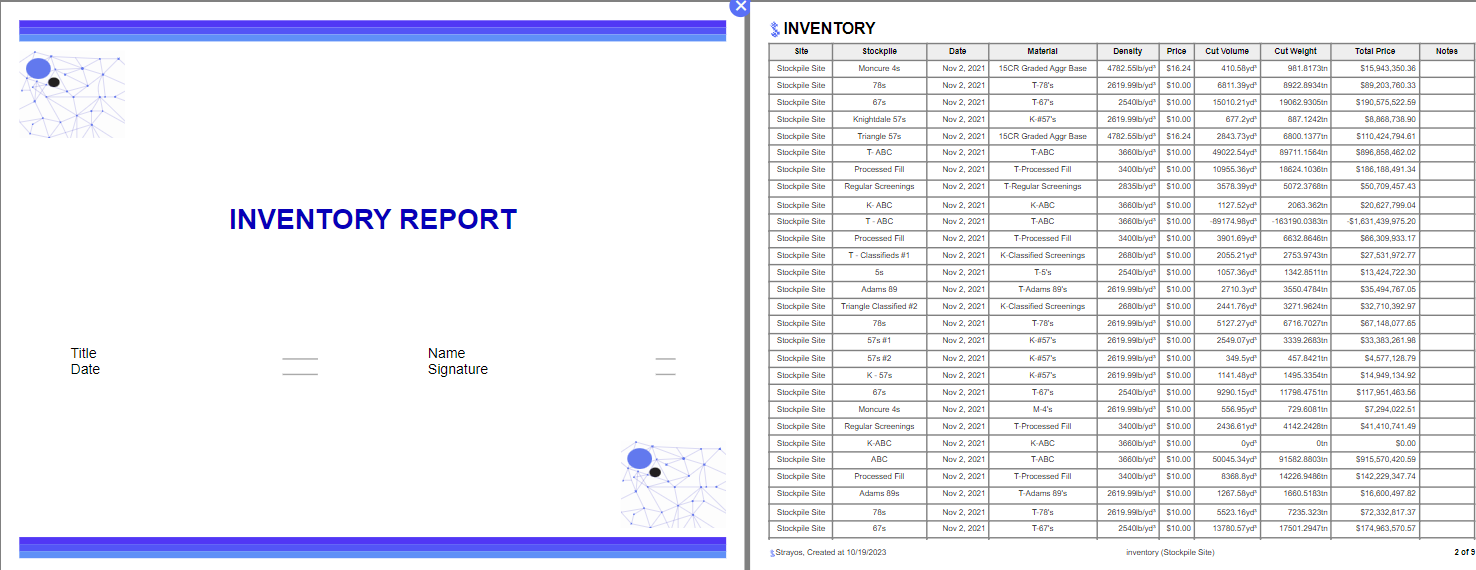

You can generate stockpile reports for specific projects or site

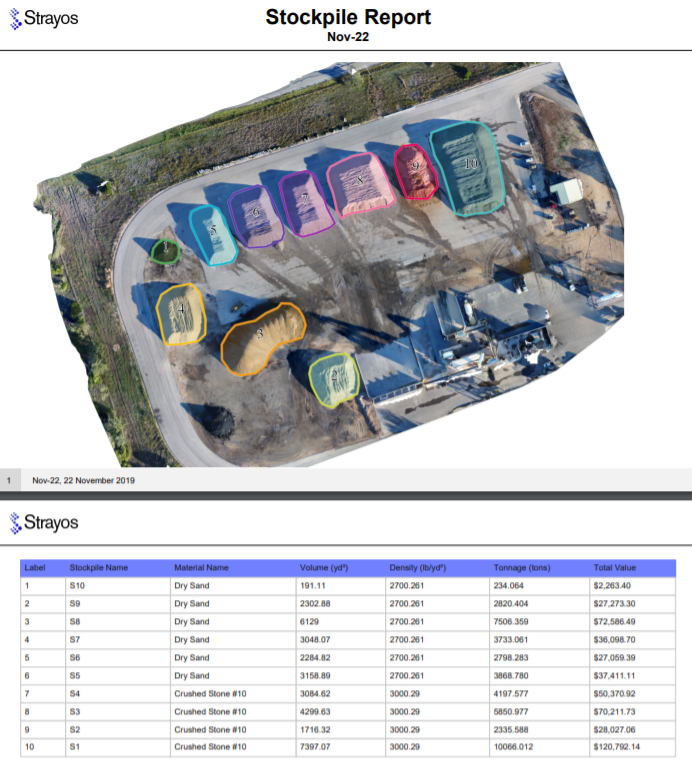

Stockpile PDF report

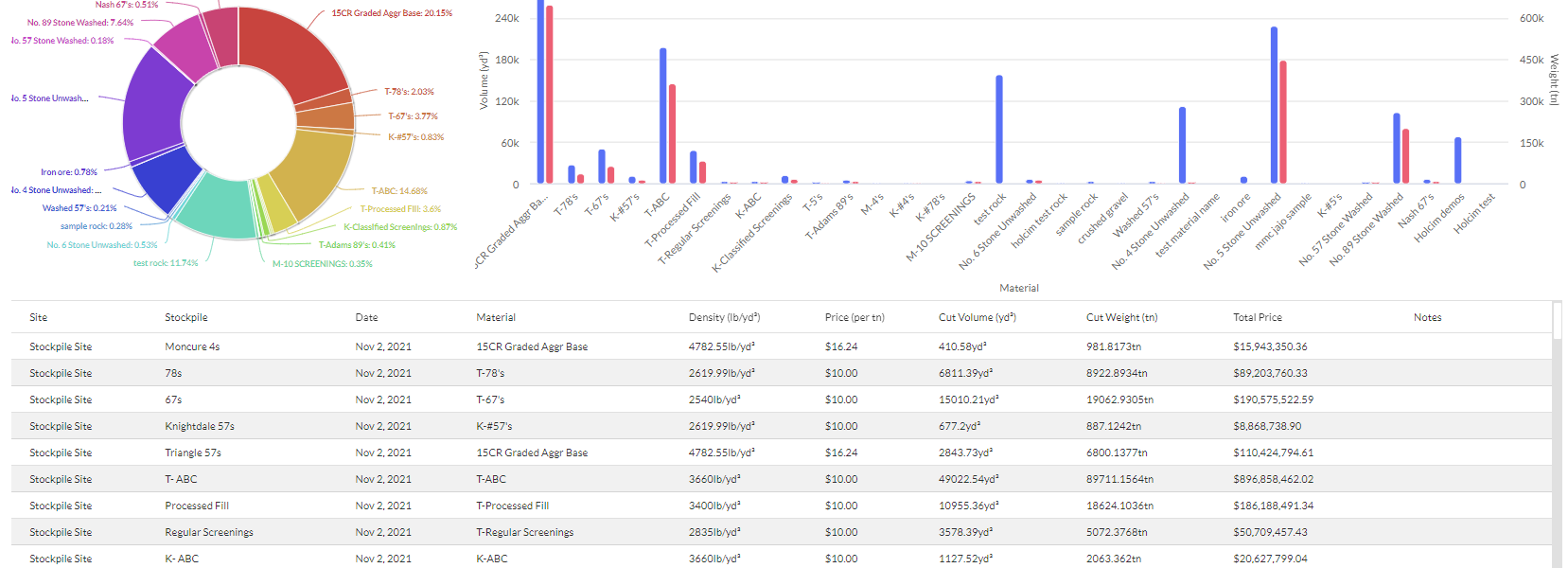

Inventory Management Dashboard

An inventory dashboard allows you to visualize the overall stockpile in central reporting saves you time and enables you to deliver information to the stakeholders timely and accurately.
