How to Use Floor Prediction

Strayos offers a Floor Prediction tool, which provides a visual of the predicted floor surface based on drilling data. The drilling data can be sourced from Manual Entry (Dip Data), Measure While Drilling Data (MWD), or Strayos Fielder.

It is important to note, a Drill Design must be completed to view the floor surface.

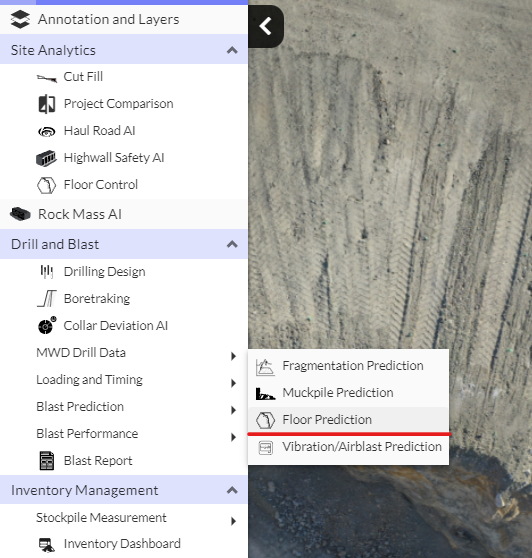

To begin, navigate to Blast Prediction on the left-hand toolbar. There you will see the Floor Prediction Module appear.

Next, select the option which you look to pull drill data from. Users can select either "Drilled Holes" or "Planned Holes" to view within the model.

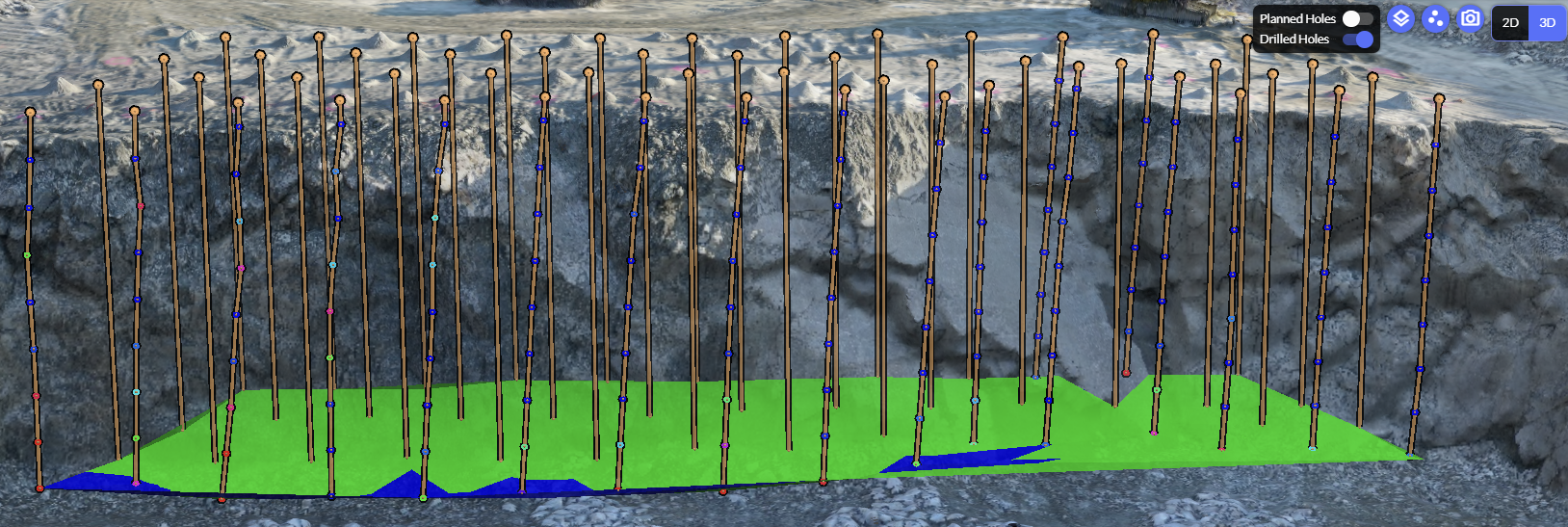

Setting the thresholds to the appropriate values will show any high or low spots on the proposed floor. Since this is based on the drill depths, it will be clear to point out areas that are above or below the design grade. The model can then be viewed in both 2D and 3D views.

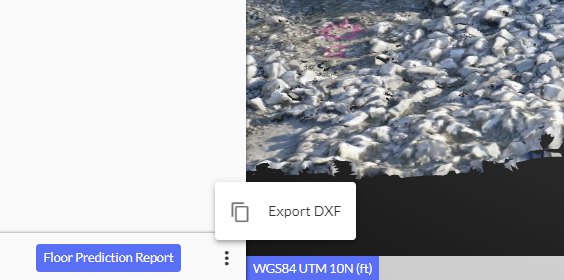

Lastly, there is an option to export the floor surface as a DXF, and export a floor prediction report onthe bottom right hands corner of the screen.
