Applying MWD Data to Hole Loading

Note: Review Uploading MWD Article before applying data to hole loading.

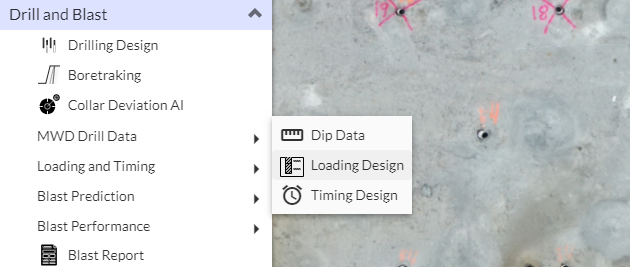

To apply the MWD data to hole loading, users will need to navigate to the Loading and Timing Module to begin.

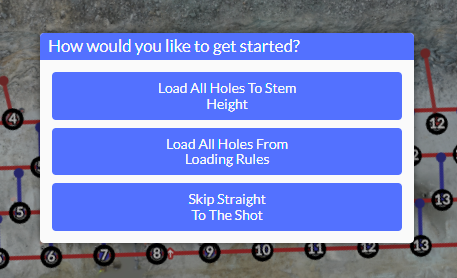

There, users will be prompted to select how they would like to begin loading their holes.

Note: Please see the article on Hole Loading for more information

Once the method of loading has been selected and applied, users can then select each hole to view the MWD data in parallel to their loading diagram. If no MWD data was read for the hole, it will not appear:
